5.

EN

Electric air conditioner
portable type

Fig. 2

NOTE:

If the window opening is less than the mentioned
minimum length of the window slider kit, cut that one

with a hole in it short to fit for the window opening. Do

never cut out the hole in window slider kit.

bolt

Window slider kit

bolt

Window

slider kit

or

Fig.7a

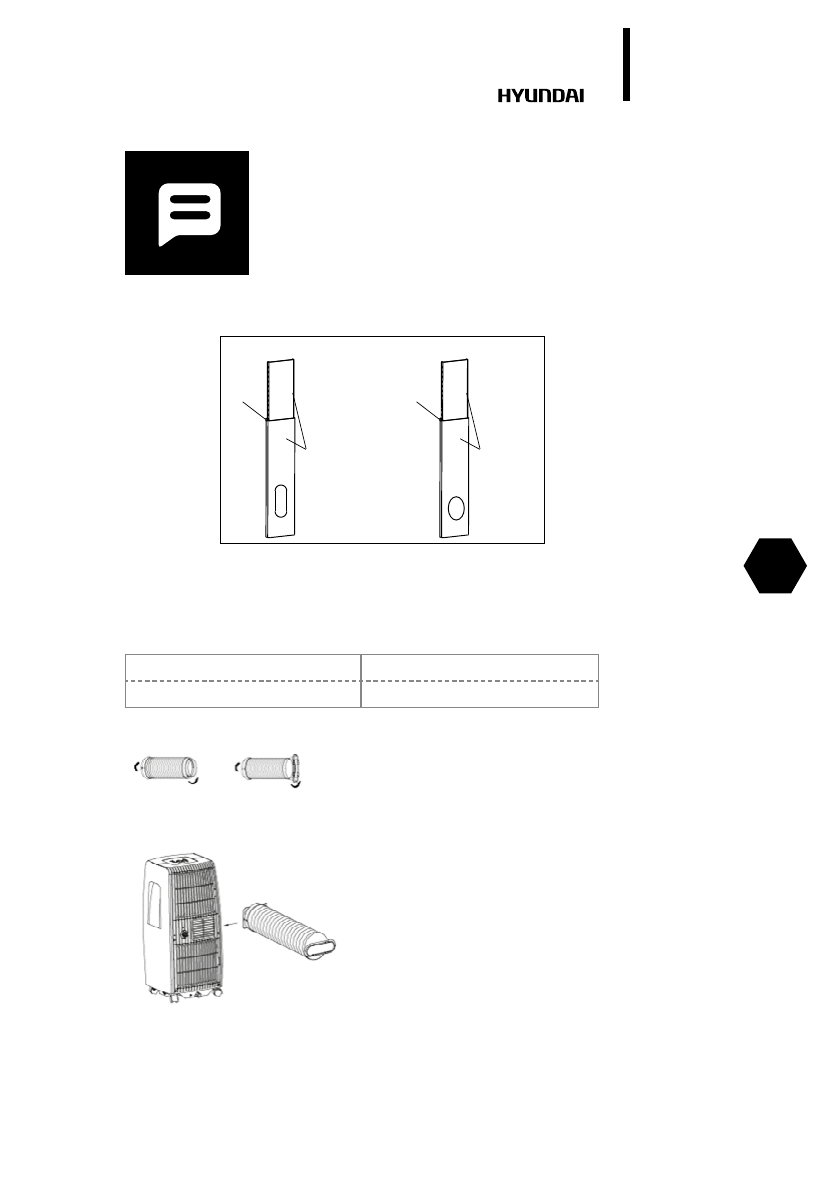

Exhaust hose installation

The exhaust hose and adaptor must be installed or removed

in accordance with the usage mode.:

•  COOL, AUTO mode

•  Install

•  FAN,DEHUMIDIIFY mode

•  Remove

1. Install the window Exhaust adaptor B onto the
exhaust hose as shown in Fig.3. or Fig.4. Refer to
the previous pages for window kit installation.
2. Push the Exhaust hose into the airoutlet opening
along the the arrow direction (See Fig.5).

The exhaust hose can be installed into the wall
(Not applicable to the units without adaptor A, ex-
pansion plugs and wooden screws of Accessories ).
1. Prepare a hole in the wall. Install the wall
Exhaust adaptor A onto the wall(outside) by using 4

expansion plugs and wooden screws, be sure to fix

thoroughly. (See Fig.6)
2. Attach the Exhaust hose installed adaptor
B(round mouth) to wall Exhaust adaptor A.

Note:

Cover the hole using the adaptor cap when not in
use.

Fig. 3

Fig. 4

Fig. 3
