Version 1.3
5.5 Replacing air filter

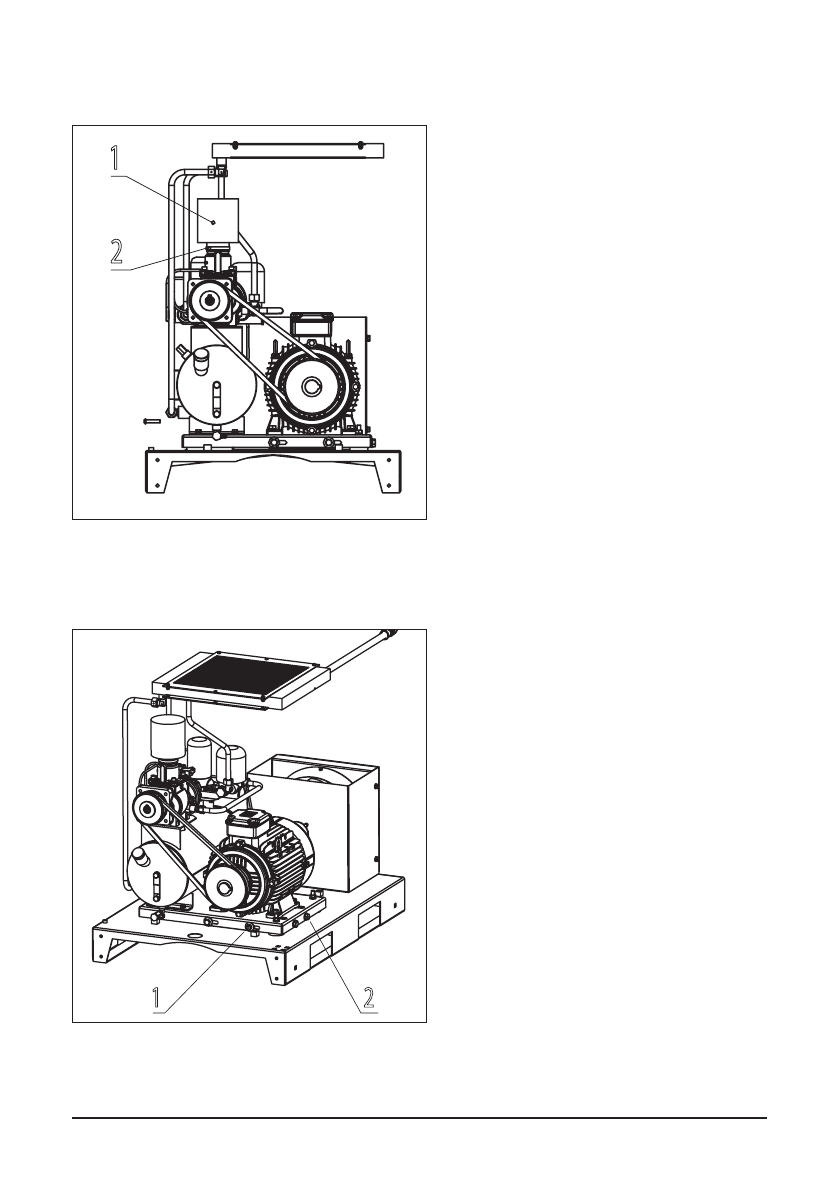

Fig. 5.6 Changing drive belt
The air filter (1) is attached to the
compressor’s intake valve.
In order to replace it, open the left side
panel, loosen the clamp (2) securing the
filter. Remove the contaminated filter, and
detach the clamp from it.
Set the new filter in its place and fit into
place with the clamp.
5.6 Changing drive belt
Open the left side panel, loosen the 4
screws (3) securing the bracket of the air
end by turning them 2 revolutions.
Loosen the 2 bolts of the motor (2) and the
2 corresponding nuts (1) on the tensioner
using a wrench. Remove the old belts from
the pulleys and install the new belts.
After installing the new belt, tighten the
belt with the appropriate tensile force
(see section 5.3 Checking Drive Belt).
Tighten the 2 bolts of the motor (2) and
the 2 corresponding nuts on the tensio-
ner. Tighten the 4 screws of the brak
-
ket of the air end. Check the belt tensi-
on within four hours of the compressor’s
operation in accordance with section 5.3.
Fig. 5.5 Air filter replacing
1
2
1
2
