24

Version 2.2

Operating panel

In order to control the compressor and to read and modify programmable parameters the
controller has a control panel provided with:
- LEDs indicating the status of the compressor;
- a display indicating the operating conditions, a service need or a fault;
- buttons to control the compressor and access data collected by the controller;
- buttons to manually start and stop the compressor;
- an emergency stop button.

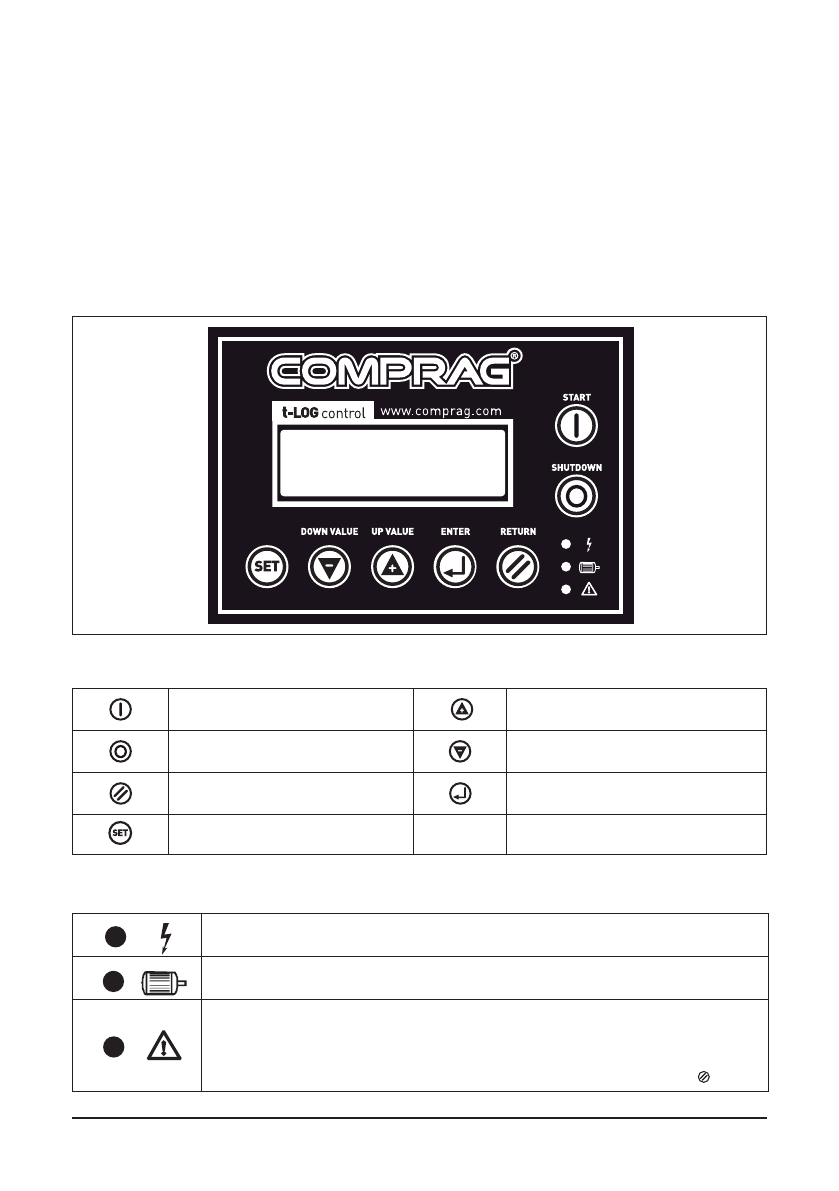

Fig. 4.1 Controller panel

Control panel buttons

Start of compressor

Up or Increment Value

Shutdown of compressor

Down or Decrement Value

Return to main operating menu

Enter

Set  / Loading – Unloading Mode

LCD indicator

Power indicator (red):

 The indicator lights up when the control is switched on and

the power supply is connected.

Power indicator (green):

 The indicator lights up when the motor is running.

Alarm/error indicator (red)

.

Alarm  (warning):

  The  indicator  flashes  and  the  ma

-

chine continues to run.

Error:

 The indicator is permanently lit, there is an accom-

panying acoustic signal and the machine switches off. The error message can be

acknowledged after the cause of the error has been resolved. In order to acknowl-

edge the error message, press and hold the ‘back to main menu’ button  .
