COMPRAG Screw air compressor A-Series

2.4 Functional description (see Fig. 2.3.1 and Fig. 2.3.2)

Air flow:

Air drawn through Air filter (4) and open Intake valve (5) into compressor Air-end (3) is compressed.

Compressed air and oil flow into Air-Oil separation tank (6). The air is discharged via Min.

Pressure valve (11) through Heat-exchanger (13) towards the Air Outlet Valve (20).

Oil flow:

Air pressure forces oil from the air-oil separation tank (6) through the heat-exchanger (14)

and the oil filter (16) to the compressor air-end (3) and the lubrication points. In the air-oil

separation tank (6), most of the oil is removed centrifugally; the rest is removed by the

air-oil separator (8).

The oil system is fitted with a thermostatic valve (15). When the oil temperature is below

the set-point of the thermostatic valve, the thermostatic valve shuts off the oil supply

from oil heat-exchanger (14). The thermostatic valve starts opening the supply from heat-

exchanger (14) when the oil temperature exceeds the valve’s setting. The setting of the
thermostatic valve depends on the model. See table Technical Data.

Cooling system:

The cooling system comprises a combined air section (13) and an oil section (14) heatex-

changer. A cooling fan, mounted in the fresh air intake section, generates the cooling air

in order to cool the heat-exchanger..

2.5 Regulating system

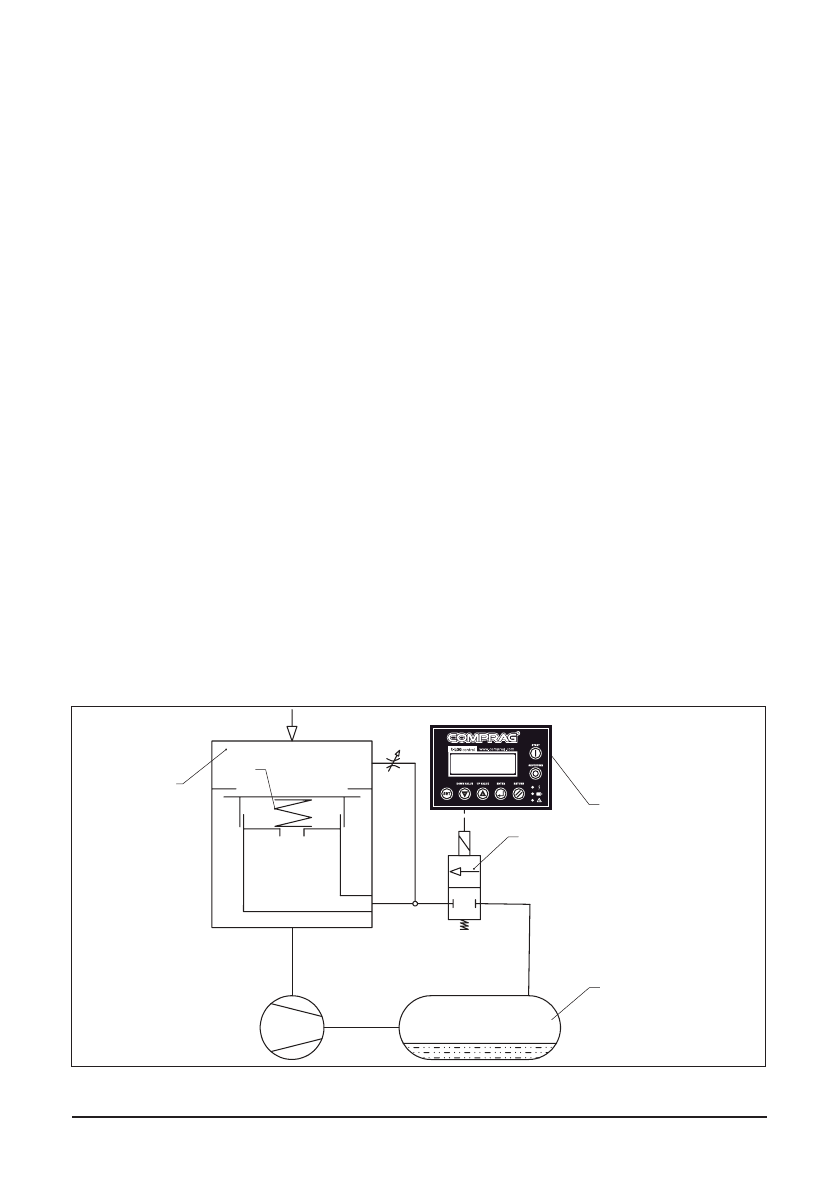

Fig. 2.5 Regulating system

1

2

3

4

5
