4.1.7 Fitting the upper door

u

Place the upper door on the middle bearing pin

 Fig. 5 (11).

u

Insert the upper turn hinge

 Fig. 4 (3) in the door on the new

hinge side.

u

Screw the top turn hinge firmly into place (with 4 Nm).(2x Torx

25)

 Fig. 4 (4). Possibly make preliminary holes with a bradawl

or use a cordless screwdriver.

u

Apply the cover

 Fig. 4 (1) and cover Fig. 4 (2) to the opposite

side from the outside and snap them into place.

4.1.8 Aligning the doors

u

If necessary, align the doors to the appliance housing by way

of the two oblong holes in the lower turn hinge

 Fig. 6 (23) and

middle turn hinge

 Fig. 5 (13). To do so, unscrew the middle

screw in the lower turn hinge

 Fig. 6 (23).

WARNING

Risk of injury due to the door dropping out!

If the bearing parts are not screwed into place firmly enough, the

door  may  drop  out.  This  may  lead  to  severe  injuries.  What  is

more, the door may not close and therefore the appliance may

fail to cool properly.

u

Screw the turn hinges firmly into place with 4 Nm.

u

Check all of the screws and retighten if necessary.

4.2 Insertion into a row of kitchen units

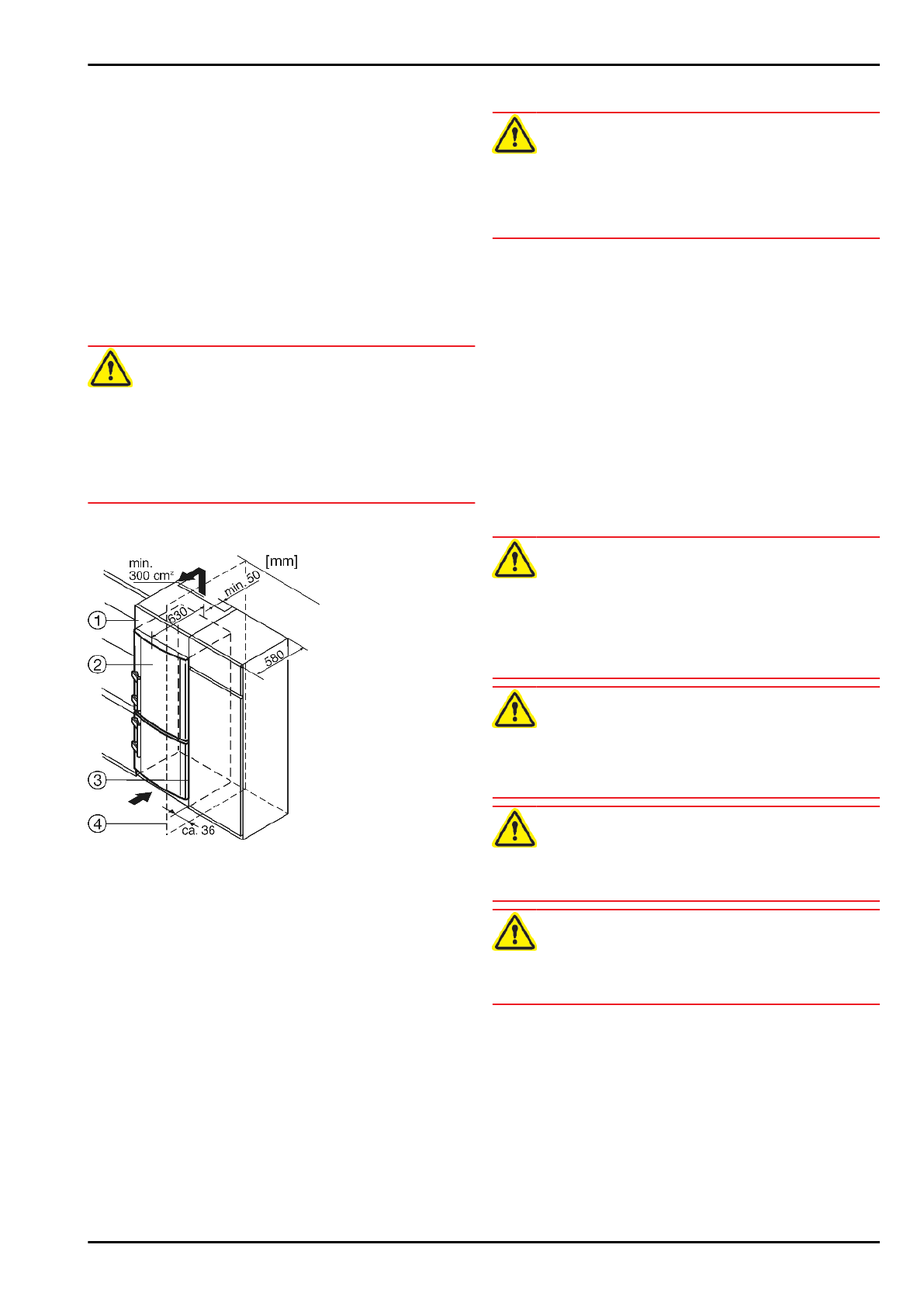

Fig. 9

(1) Stack cabinet

(3) Kitchen cabinet

(2) Appliance

(4) Wall

The  appliance  can  be  inserted  into  a  row  of  kitchen  units.  To

match the appliance

 Fig. 9 (2) to the height of the row of units, a

suitable stack cabinet

 Fig. 9 (1) can be fitted above the appliance.

When inserting the appliance into a row of standard kitchen units

(max. depth 580 mm), the appliance can be installed directly next

to the kitchen unit

 Fig. 9 (3). The appliance door projects relative

to  the  front  of  the  kitchen  unit  by  34  mm  at  the  side  and  by

50  mm  in  the  middle  of  the  appliance.  It  can  be  opened  and

closed perfectly as a result.

Important for the ventilation:

-

At the back of the stack cabinet there has to be a ventilation

duct of at least 50 mm depth throughout the width of the stack

cabinet.

-

The  ventilation  space  under  the  ceiling  has  to  be  at  least

300 cm

2

.

If  the  appliance  is  installed  with  the  hinges  next  to  a  wall

Fig. 9 (4), the distance between appliance and wall has to be at

least  36  mm.  This  corresponds  to  the  projection  of  the  handle

when the door is open.

4.3 Transporting the appliance

CAUTION

Risk of injury and danger of damage as a result of incorrect trans-

port!

u

Transport the appliance in a packed condition.

u

Transport the appliance upright.

u

Do not transport the appliance without assistance.

4.4 Installing the appliance

In the event that the appliance is damaged, contact the supplier

immediately before connecting to the mains.
The floor at the site must be flat and level.
Do not install the appliance in a location where it is exposed to

direct radiation of the sun, next to a cooker, heater and similar.
Always install the appliance directly against the wall.
Do not install the appliance without assistance.
Standard EN 378 specifies that the room in which you install your

appliance must have a volume of 1 m

2

 per 8 g of R 600a refrig-

erant used in the appliance. If the room in which the appliance is

installed is too small, a flammable gas-air mixture may form in the

event  of  a  leakage  in  the  refrigeration  circuit.  The  quantity  of

refrigerant used in your appliance is indicated on the type plate

on the inside of the appliance.

WARNING

Fire hazard due to dampness!

If live parts or the mains lead become damp this may cause short

circuits.

u

The appliance is designed for use in enclosed areas. Do not

operate the appliance outdoors or in areas where it is exposed

to splash water or damp conditions.

WARNING

Fire hazard due to refrigerant!

The refrigerant R 600a is environmentally friendly but flammable.

Escaping refrigerant may ignite.

u

Do not damage the piping of the refrigeration circuit.

WARNING

Fire hazard and danger of damage!

u

Do  not  place  appliances  emitting  heat  e.g.  microwaves,

toasters etc. on the appliance!

WARNING

Fire hazard and risk of damage due to blocked ventilation grille!

u

Always keep the ventilation grille free. Always ensure that the

appliance is properly ventilated.

u

Detach the connecting cable from the rear of the appliance,

removing  the  cable  holder  at  the  same  time  because  other-

wise there will be vibratory noise!

u

Remove  the  protective  film  from  the  outside  of  the  appli-

ance.*

Putting into operation

6
