20

W

  Re-attach the doors:

-  Remove plugs

bp

 from the door mounting points and re-

place on the other side.

-  Suspend top door in hinge pin

7

(with version

I

, do not lose

spacer sleeve

9

), close door.

-  Slide middle hinge pin

6

 into the door mounting from be-

low through the hinge

bm

. Make sure the door is flush with

the body of the appliance; adjust if necessary using the

slots on the hinge.

-  Suspend lower door, close.

-  Rotate hinge component

4

by 180°, remove hinge pin

5

,

turn by 180° and replace. Mount both parts in the hinge

bq

:

slide the pin into the door mounting through the hinge, tilt in

the hinge component, slide up and attach with screw

3

.

W

  Align the door

flush

 with the body of the appliance using

the slot on the hinge

bq

, then tighten screw

3

.

W

  Attach the plinth panel

1

and click into place by pressing.

W

  With the door open, insert the cover

2

 in the plinth panel

at the front and click into place at the back.

W

Transfer*

door handles

br

 and plugs

bt

. With the door

open, carefully lift out the pressure plates*

bs

 at the front

and slide away; unscrew handle using a Torx® or Phillips

screwdriver*.

  Reassemble in reverse order: replace the pressure plates

and click into position.

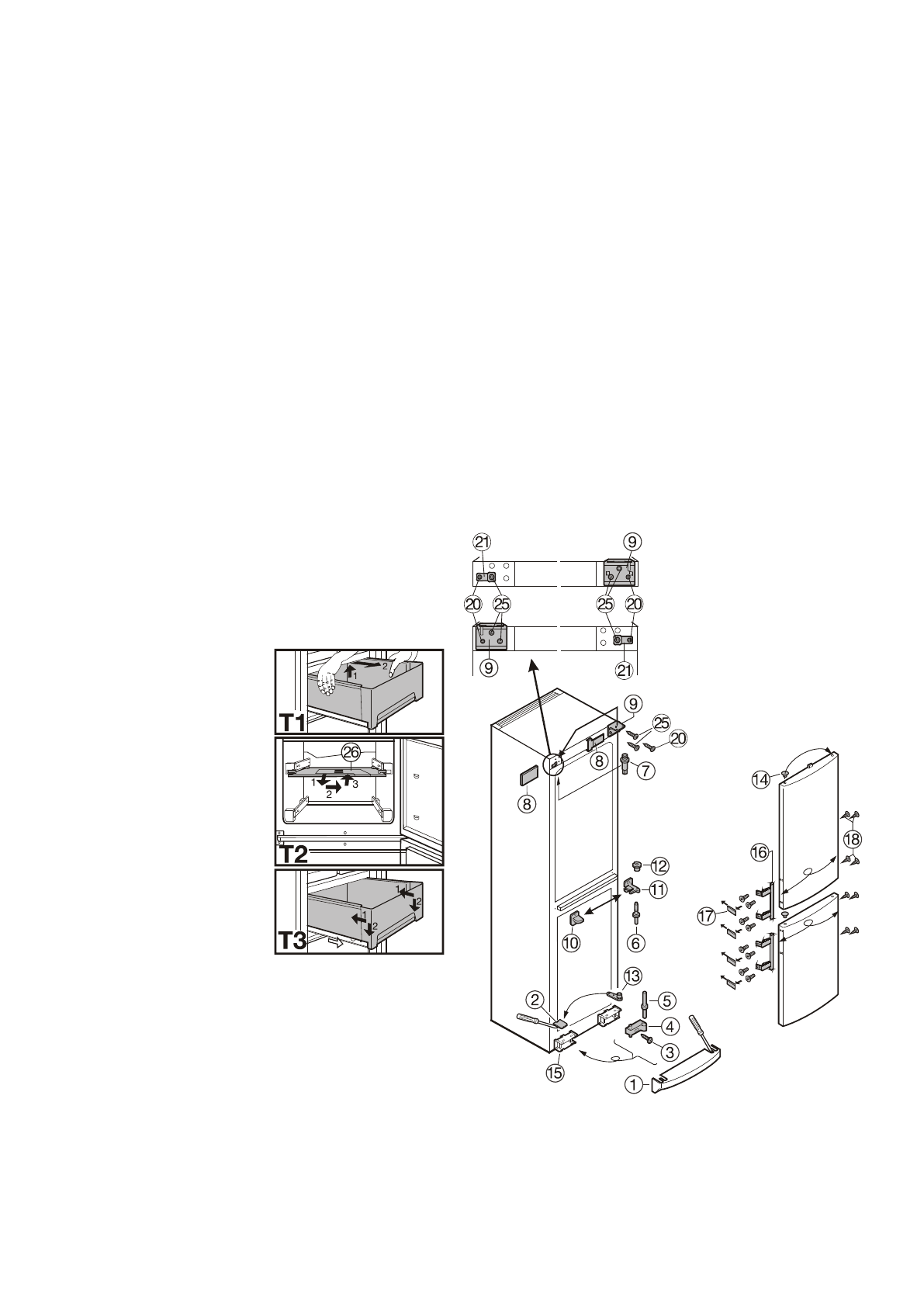

Changing over door hinges

Only change over door hinges when mains plug is disconnected!

W

With the door open, lever out plinth panel

1

 on the hinge

side with a screwdriver and remove from front.

-  Lever out cover

2

 with a screwdriver. Close door.

-  Unscrew screw M5

3

.

W

  Pull hinge component

4

 with hinge pin

5

 out from under-

neath and remove.

-  Open door, lift out at bottom and remove.

-  Pull middle hinge pin

6

out from underneath.

-  Tilt out top door and lift off from underneath.

W

  Transfer all hinge components onto the other side:

W

  Lift up cover

8

 on handle side, push outwards; lift up cover

on hinge side and pull off.

-  Unscrew earthing plate

cm

: first earthing screw

cl

, then

inner retaining screw

cq

.

-  Unscrew hinge

9

: first undo earthing screw

cl

, then re-

taining screws

cq

. Fit hinge

9

to opposite side: for easy as-

sembly, fit hinge from above and first tighten with the upper

retaining screw

cq

 M5, then screw

cq

 and finally earthing

screw

cl

 M4.

-  Turn earthing plate

cm

 through 180° and screw tight again

on the new handle side: first retaining screw

cq

, then

earthing screw

cl

.

-   Insert hinge pin

7

 in the other retaining hole. Use the hex-

agon socket on the open-ended spanner provided (span-

ner width 5).

-  Fit covers

8

 again: insert hinge-side cover by sliding out-

wards and click into position; insert handle-side cover by

sliding inwards and click into position.

W

  Centre: Change over cover

bl

 with hinge

bm

: unscrew

screws, lift off cover

bl

 and hinge

bm

to the side, turn

through 180° and replace on the other side, remove hinge

bushing

bn

 and re-insert from top.

-  Bottom: Using a screwdriver,

remove the spacer

bo

 and

replace on the other side.

W

Moving the BioFresh draw-

ers

, fig.

 T1, 2, 3

:

-  Pull each drawer right out, grip

at back and lift out, fig.

T1

-  Fig

T2

: Pull the drawer cover

cr

 out towards you and replace

in the grooves so that it is offset

towards the new handle side.

Slide in until the support pins

snap into place.

-  Replace the drawers by placing

on the fully extended guide rails

- the rails must be aligned with

the front of the drawer - and

slide in, fig.

T3

.

  The drawer and the cover must be flush with one another

vertically.
