14

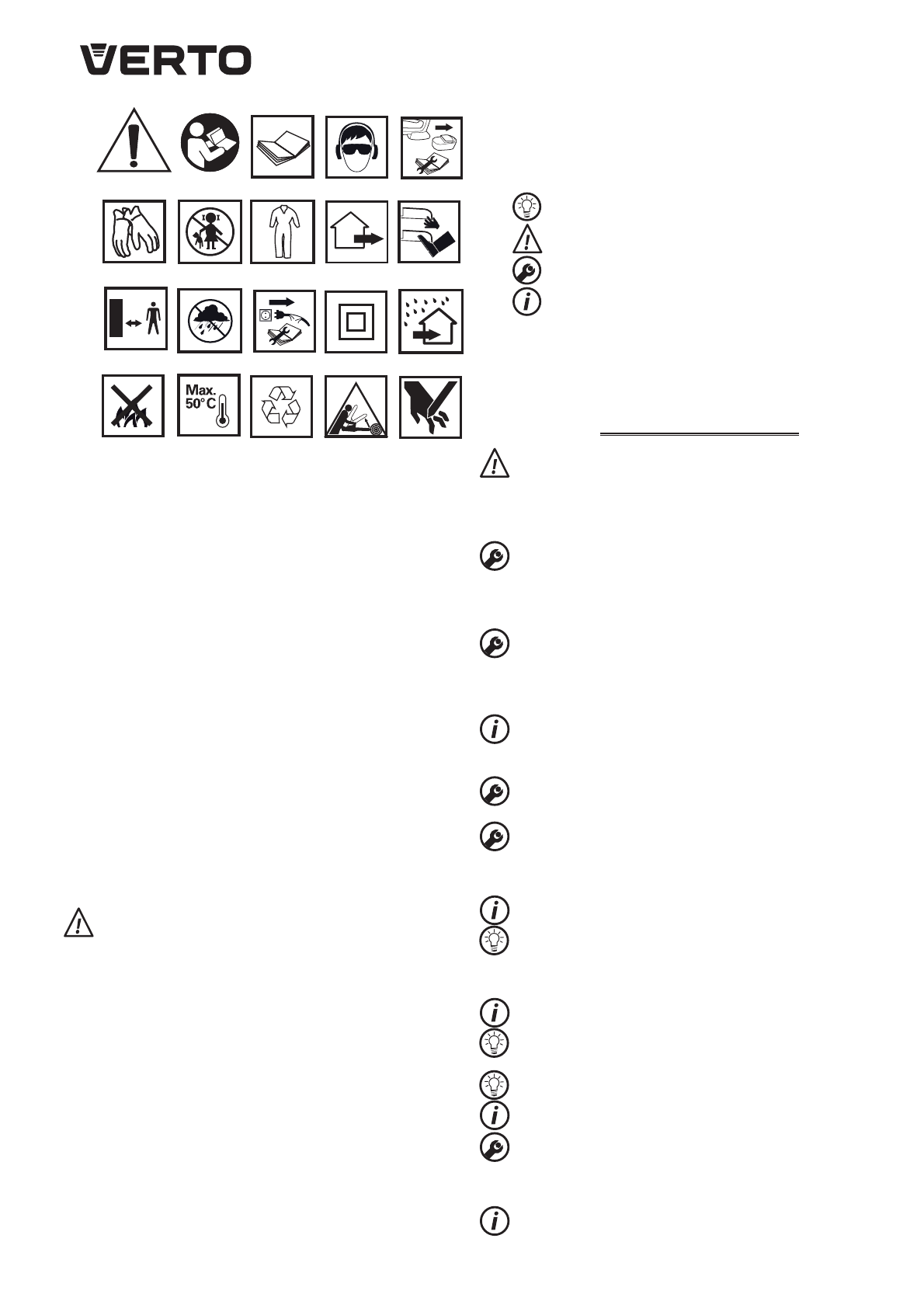

EXPLANATION OF USED SYMBOLS
1
2
4
6
3
5
7
8
12
10
9
13
14
15
16
17
18
11
19
20
1.
CAUTION! Use precaution measures.
2,3.
Read instruction manual, observe warnings and safety
conditions therein!
4.
Use personal protection equipment (protective goggles, earmuff
protectors).
5.
Remove the battery from the device before starting any
adjustments or cleaning related tasks.
6.
Use protective gloves.
7.
Keep the tool away from children.
8.
Use protective clothes.
9.
The garden tool is designed for outdoor use.
10.
Do not put your hands or legs close to cutting parts!
11.
Keep safe distance from working garden tool.
12.
Protect the tool from moisture.
13.
Disconnect the charger before repairs.
14.
Protection class 2.
15.
The charger is designed to operate indoors in dry environment.
16.
Do not throw cells into fire.
17.
Maximum permissible cell temperature.
18.
Recycling.
19.
Danger of kickback.
20.
Caution, risk of hand injuries and cutting fingers.
CONSTRUCTION AND USE
Cordless chain saw is a hand held device. Drive consists of a DC
commutator motor. Such power tools are designed for tasks in home
garden. The saw can be used for maintenance cutting of trees, cutting
branches, preparation of firewood, wood for fireplace and other tasks
that require cutting wood. Anti kickback guard improves safety of use.
Cordless chain saw is a power tool for amateur use only.
The device should not be used for felling trees. Use the tool only in
accordance with its purpose.
DESCRIPTION OF DRAWING PAGES
Below enumeration refers to the device elements depicted on the
drawing pages of this manual.
1.
Guard
2.
Chain
3.
Guide bar
4.
Bar shield fixing knob
5.
Battery locking button
6.
Battery
7.
LED diodes
8.
Guide bar shield
9.
Chain tensioning knob
10.
Oil level indicator
11.
Handle
12.
Handle lock button
13.
Oil filler plug / pump
14.
Front hand guard
15.
Switch lock button
16.
Switch
17.
Bumper spike
18.
Pin
19.
Sprocket
* Differences may appear between the product and drawing.
MEANING OF SYMBOLS
CAUTION
WARNING
ASSEMBLY / SETTINGS
INFORMATION
EQUIPMENT AND ACCESSORIES
1. Battery
- 2 pcs
2. Charger
- 1 pce
3. Handle
- 1 pce
4. Guide bar shield
- 1 pce
PREPARATION FOR OPERATION
CARRYING THE CHAIN SAW
Always disconnect the battery and put on the guide bar shield
before carrying the chain saw. If several cuttings are to be made,
switch off the chain saw with the switch between tasks.
SAW ASSEMBLY
The saw is delivered without attached handle (
11
), it requires assembly.
•
Slide the handle (
11
) into the guide inside the saw body, as the arrow
on the saw body shows. Slide in until you hear snapping of the handle
lock button (
12
) (
fig. C
).
REMOVING AND INSERTING THE BATTERY
•
Press the battery locking button (
5
) and slide out the battery (
6
) from
the handle (
11
) (
fig. A
).
•
Slide charged battery (
6
) into the handle holder (
11
), you should hear
when the battery locking button (
5
) snaps.
BATTERY CHARGING
The device is supplied with partially charged battery. The battery should
be charged in ambient temperature between 4°C and 40°C.
New battery, or one that has not been used for a long time, will reach full
efficiency after approximately 3 to 5 charge/discharge cycles.
•
Remove the battery (
6
) from the device (
fig. A
).
•
Connect the charger to the battery (
6
) (
fig. B
).
•
Connect the charger to mains socket (230V AC).
Two LEDs (
7
) are located in the battery casing (
6
) (
fig. B
), and meaning of
the lighting is described below.
• Red diode lit
– voltage supplied and informs that charging is in
progress.
• Green diode lit
(red diode turns off ) – the battery is fully charged.
Once the battery has been charged, the green diode stays on until you
will disconnect the charger from mains network.
Batteries heat up strongly when charging. Do not operate just after
charging – wait for the battery to cool down to room temperature. It
will prevent battery damage.
CHAIN LUBRICANTS
Durability of chain and guide bar depends heavily on quality of lubricant.
Use only lubricants, which are designed for chain saws.
Never use old and used oil for chain lubrication.
NEVER USE OLD AND USED OIL FOR CHAIN LUBRICATION.
Oil tank in new chain saw is empty. Fill the tank with oil before use.
To prevent dust getting into the tank, clean the oil filler plug (
13
) before
removing it.
•
Unscrew oil filler plug (
13
) (
fig. D
).
•
Fill the tank with high quality oil, so the oil level indicator sight glass
(
10
) is filled with oil (
fig. E
).
•
After filling, carefully close the oil tank by tightening the oil filler plug
(
13
).
Use oil level indicator (
10
) to regularly check oil level during the chain
saw operation.
