25

 CAUTION

!

If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air
outlet (connection flange).
Using the tubes and discharge holes on walls with smaller dimensions will cause a
diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

!

Use a duct of the minimum indispensable length.

!

Use a duct with as few elbows as possible (maximum elbow angle: 90°).

!

Avoid drastic changes in the duct cross-section.

 Filtration version

The aspirated air will be degreased and deodorised before being fed back into the
room.
In order to use the hood in this version, you have to install a system of additional
filtering based on activated charcoal.


Installation

The minimum distance between the supporting surface for the cooking equipment on
the hob and the lowest part of the range hood must be not less than 45cm from electric
cookers and 50cm from gas or mixed cookers.
If the instructions for installation for the gas hob specify a greater distance, this must be
adhered to.

  Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated
inside the hood. If provided with a plug connect the hood to a socket in compliance with
current regulations and positioned in an accessible area, after installation. If it not fitted
with a plug (direct mains connection) or if the plug is not located in an accessible area,
after installation,  apply a double pole switch in accordance with standards which
assures the complete disconnection of the mains under conditions relating to over-
current category III, in accordance with installation instructions.


WARNING!

Before re-connecting the hood circuit to the mains supply and checking the efficient
function, always check that the mains cable is correctly assembled.
The hood is provided with a special power cable ; if the cable is damaged, request a
new one from Technical Service.

Mounting

Before beginning installation:

•

Check that the product purchased is of a suitable size for the chosen installation
area.

•

Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these
is/are to be mounted only if you want lo use the hood in the filtering version.

•  Check (for transport reasons) that there is no other supplied material inside the

hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them
and keeping them.


Expansion wall plugs are provided to secure the hood to most types of walls/ceilings.
However, a qualified technician must verify suitability of the materials in accordance
with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight
of the hood.

Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Maintenance

Cleaning

Clean using

ONLY

 the cloth dampened with neutral liquid detergent.

DO NOT CLEAN

WITH TOOLS OR INSTRUMENTS

. Do not use abrasive products.

DO NOT USE

ALCOHOL!

Always wear work gloves for all maintenance operations.

Grease filter

Fig. 9-19
Traps cooking grease particles.

The grease filter

 must be cleaned once a month using non aggressive detergents,

either by hand or in the dishwasher, which must be set to a low temperature and a short
cycle.  When washed in a dishwasher, the grease filter may discolor slightly, but this
does not affect its filtering capacity.
To remove the grease filter, pull the spring release handle.

Charcoal filter (Optional)

Fig. 18
It absorbs unpleasant odors caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending
on the type of cooking and the regularity of cleaning of the grease filter.
In any case it is necessary to replace the cartridge at least every four mounths (or when
the filter saturation indication system – if envisaged on the model in possession –
indicates this necessity).The charcoal filter may NOT be washed or regenerated.

Circular carbon filter

Apply one on each side as cover to both the shield grids of the motor impeller, then turn

clockwise.
For the disassembly, turn counter-clockwise.


Buying charcoal filters

The Charcoal filter can be bought at Samsung Service Website and Service Center.
Please refer to the last page of manual.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.
The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the
traditional lamps and allow to save 90% electrical energy.

For replacement, contact the technical service.



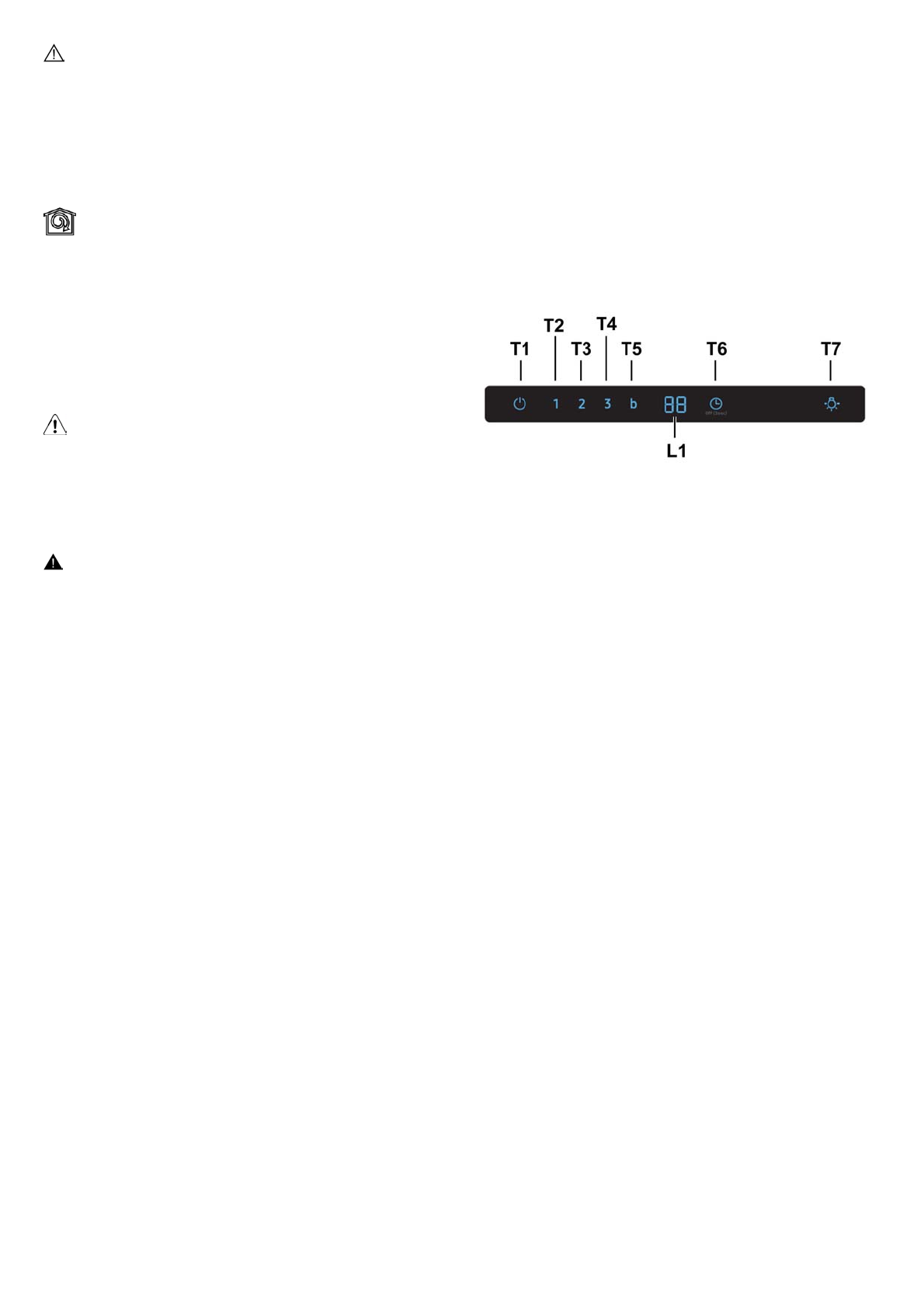

Operation

T1.

 Motor ON/OFF

Press the T1 button and the hood will be activated at default speed (Default Speed
: Low).

Press again and the hood will return to sleep mode.

T2.

 Low speed

Press the T2 button and the hood will be activated at Low speed.

T3.

 Med Speed

Press the T3 button and the hood will be activated at Medium speed.

T4.

 High Speed

Press the T4 button and the hood will be activated at High speed

T5.

 Boost speed

Press the BOOST button and the hood will be activated at Maximum speed for 5
minutes.

T6.

 Timer ON/OFF

Press the Timer button to set the working time.

Press the Timer button for 3 seconds and the Timer function will turn off.

T7.

 Light ON/OFF

Press the Light button and the lamps will turn on.

Press the Light button again and the lamps will turn off.

T7.

 SOUND ON/OFF

Press the Light button for 3 seconds. The sound will be turned off.

Press the Light button for 3seconds. The sound will be turned on.

Reset filter signals

•

Press the T1 button until hearing the sound signal.

•

The flashing LED 1 (grease filter) or 2(carbon filter) stops flashing

Charcoal filter signal ON/OFF

•

Press the "1" and "2" Button for 3 seconds and the Charcoal filter signal will be
activate.

•

Press the "1" and "2" Button for 3 seconds, and the charcoal filter signal will be
deactivate.
