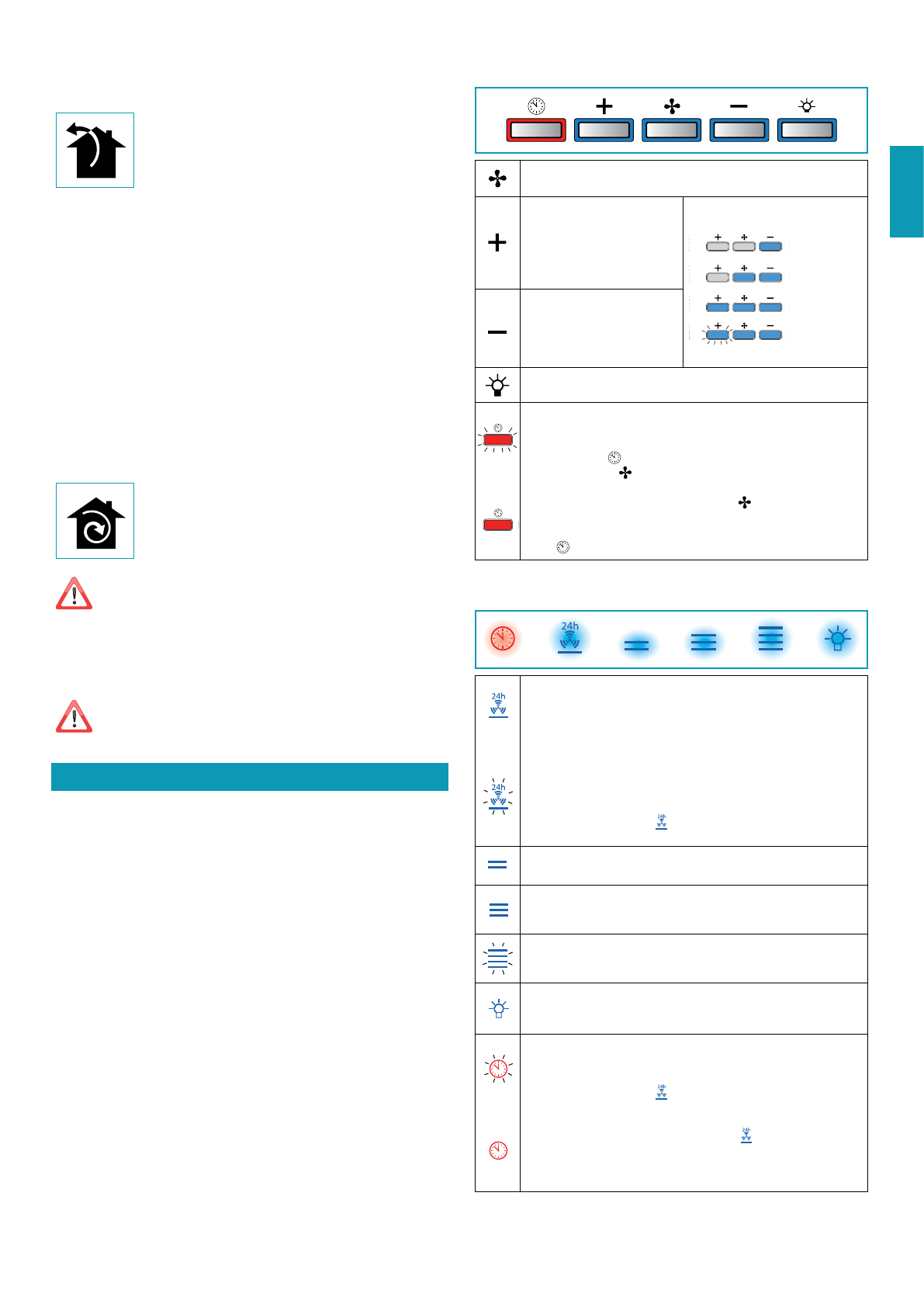

19

ENGLISH

FUMES DISCHARGE

EXTERNAL EXHAUST HOOD (SUCTION)

In this version the fumes and vapours are discharged outside
through the exhaust pipe.
To this end, the hood outlet fitting must be connected via a
pipe, to an external output.

The outlet pipe must have:
•  a diameter not less than that of the hood fitting.
•  a slight slope downwards (drop) in the horizontal sections to prevent conden-

sation from flowing back into the motor.

•  the minimum required number of bends.

•  the minimum required length to avoid vibrations and reduce the suction per-

formance of the hood.

  You are required to insulate the pipes if it passes through cold environments.
  In the presence of motors with 800m3/h or higher, a check valve is present to

prevent external air flowing back.

Deviation for Germany:
when the kitchen hood is used at the same time as appliances that are powered by
energy other than electricity, the negative pressure in the room must not exceed 4 Pa
(4 x 10-5 bar).

HOOD WITH INTERNAL RECIRCULATION (FILTERING)

In this model, the air passes through the charcoal filters to be
purified and recycled in the environment.

Ensure that the active carbon filters are assembled into the hood,
if not, install them as indicated in the assembly instructions.

In this version the check valve must not be assembled: remove it if it is
on the air outlet fitting of the motor.

ASSEMBLY INSTRUCTIONS

only intended for qualified personnel

The hood can be installed in various configurations.
The generic assembly steps apply to all installations; for each case,
follow the specific steps provided for the required installation.

OPERATION

WHEN TO TURN  ON THE  HOOD?

Switch on the hood at least one minute before starting to cook to direct fumes
and vapours towards the suction surface.
After cooking, leave the hood operating until complete extraction of all vapours
and odours. By means of the Timer function, it is possible to set auto switch-off
function which will allow the hood to turn off automatically after 15 minutes of
operation.

WHICH SPEED IS TO BE SELECTED?

1st speed:

maintains the circulation of clean air with low electricity consump-

tion.

2nd speed:

 normal conditions of use.

3rd speed:

presence of strong odours and vapours.

4th speed:

 rapid disposal of odours and vapours.

WHEN SHOULD THE FILTERS BE WASHED OR REPLACED?

The metal filters must be cleaned every 30 hours of operation.
The active carbon filters must be replaced every 3-4 months, depending on the
use of the hood.
For further details see the

“MAINTENANCE”

 chap.

ELECTRONIC PUSHBUTTON PANEL

( TOP)

Motor ON/OFF

Upon start-up, the speed is that stored at the previous operation.

Increase speed from 1 to 4

Speed 4 is only active for a few
minutes, then speed 3 activa-
tes.

The speeds are indicated by the
LEDs on the keys:

 Speed 1

 Speed 2

 Speed 3

 Speed 4

("+" LED flashing)

Reduce speed from 4 to 1

Light on/off

TIMER

(red LED flashing)

Auto switch-off after 15 min.
The function deactivates (red LED off ) if:
- The TIMER key (

) is pressed again.

- The ON/OFF key (

) is pressed.

FILTER ALARM

(red LED steady on with (

) off )

Anti-grease filter maintenance after approximately 30 hours of op-
eration.
Press (

) the meter for 3 seconds to reset.

TOUCH PUSHBUTTON PANEL

(QUASAR,  QUASAR Green Tech)

ON/OFF (Blue led steady on)

Motor on/off and Speed 1

ON/OFF (blue led flashing)

If pressed for more than 3 seconds, it activates the 24h cycle (1h ON
-> 3h
OFF -> 1h ON)
the function deactivates if:
- The motor turns off (key

 )

- After 24h

Speed 2 activation

Speed 3 activation

Speed 4 is only active for a few minutes, then speed 3 activates.

Light on/off
Short impulse:

turn light on and off

Long impulse:

change light tone from 2700K to 5600K

TIMER

(red LED flashing)

Auto switch-off after 15 min.
The function deactivates (red LED off ) if:
- The motor turns off (key

 ).

- The speed is changed.

FILTER ALARM

(red LED steady on with (

 ) off )

Anti-grease filter maintenance after approximately 30 hours of op-
eration.
Press the meter for 3 seconds to reset.
