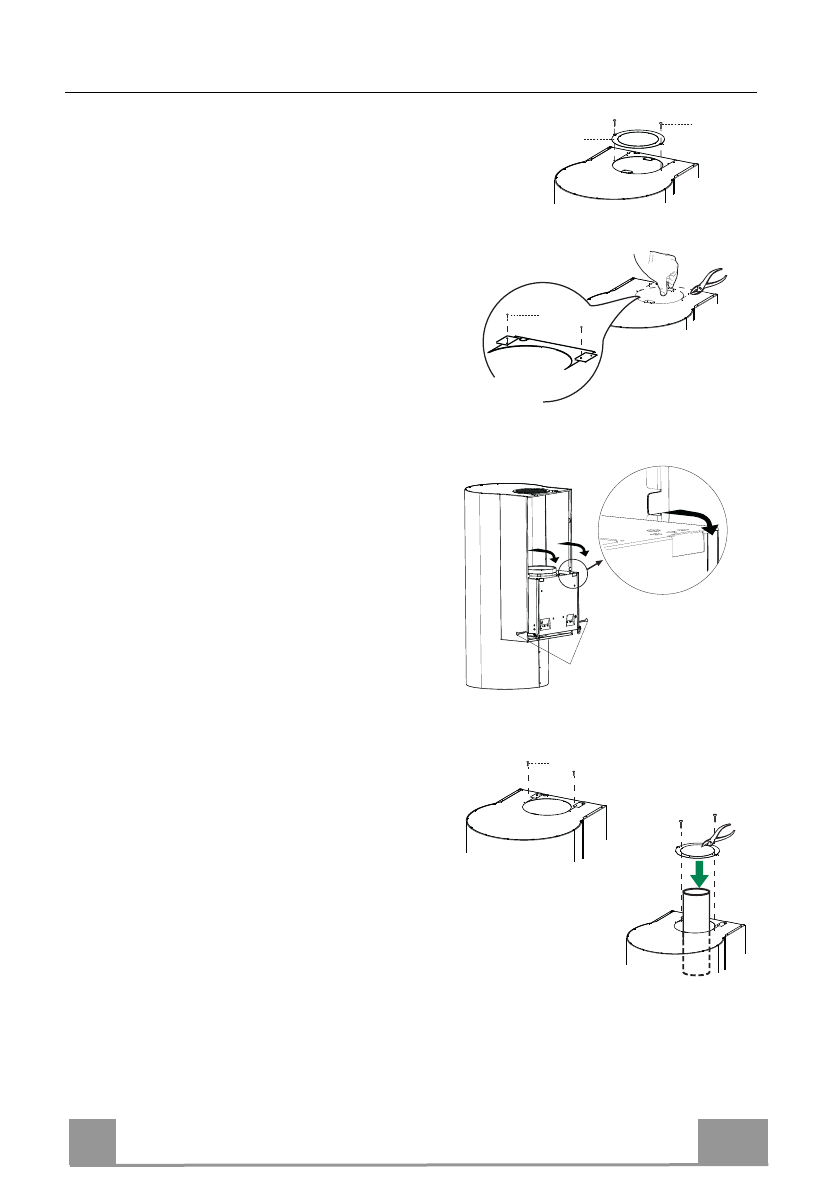

Fitting the hood body – Ducting Version

Ducting Version Rear outlet

•  If the air outlet on the Rear of the hood has been selected, the

Air outlet Reduction-plug

8c

 must be screwed into the top

part of the Hood using 2 Screws

12e

 provided.

Ducting Version Top outlet

•  If the air outlet on the top of the hood has been

selected, the 2 brackets visible in the top part of
the hood canopy must be removed. Also remove
the pre-scored section shown in (Fig.

2

) to allow

the pipe to pass through.

•  Screw the brackets to the pre-scored piece, after

removing it as described above, using 2 screws

12e

 provided.

•  Rest the Hood Canopy

1

 on the Suction Unit

3

, inserting it, and fix it at the side using the

2 screws

12b

. (Fig.

1

)

  •  Screw the pre-scored piece with the

brackets (Fig.

2

) back onto the top part of

the hood canopy, using 2 screws

12e

provided, so as to block the air ducting
pipe.

  •  If a size 120 pipe is used, break the inner part of the air outlet

Reduction-plug

8c

.

    Insert the ring obtained in this way into the air ducting pipe and

screw it to the hood canopy using 2 screws

12e

 provided.

fig.2

12e

12e

8c

12e

ø 120

fig.1

12b
