www.timberk.com • electrical storage water heater

8

NOTE:

In places or on the wall, where there may be a water
contact, the power outlet installation height must be
not less than 1.8 m.

NOTE:

The water heater is an appliance, operating in such
a manner that pressure of water in the water heater
corresponds to the pressure of water in water main.
If pressure in the main exceeds 0.75 MPa, then it is
necessary to mount a pressure reducer before the water
heater so that pressure doesn’t exceed 0.75 MPa.

NOTE:

Do not mount additional accessories, such as a shut-off
valve, between the relief valve and the inlet nozzle.

Connection to water main

1. The heater must be connected to water main with at least 0.1 MPa
pressure; maximum pressure is 0.75 MPa.

2. G1/2 diameter pipes are used to connect the water heater to the water
pipeline.

3. To prevent a leakage when connecting pipes, use rubber sealing gaskets
on the threaded pipe ends.

4. Screw a relief valve to the inlet nozzle, marked blue and embossed arrow
of the water flow direction, so that the water flow direction coincides with
direction of the arrow on the valve’s case.

5. Water heater with the mounted valve must be connected to the water
main – install a shut-off valve at the water inlet point. You need to connect
a drain pipe to the opening of the pressure relief of safety valve. Next you
should put a drain pipe to the sewer.

6. Connect the desired number of consumption points to the outlet nozzle,
marked red.

7. Open the shut-off tap and one of the tap assemblies. After the tank is
filled with water, as evidenced by issue of water from the cock assembly,
shut the cock assembly and check the leak integrity of all joints.

1. The electric water heater must be mounted on a solid wall. If wall strength
doesn’t allow to bear the double weight of the total water heater weight
fully filled with water, then it should be mounted on a special support.

2. After you chose the proper place to install the water heater, determine
points for holes for anchor hook bolts (to be determined in accordance
with the data sheet for the appliance you chose). Drill two holes of the
corresponding depth in the wall using a drill, dimensionally fit for anchor
bolts, enclosed with the water heater.

Then insert bolts into the drilled holes, and, turning bolt hooks clockwise,
securely tighten bolt nuts, then hang the water heater on these anchor bolt
hooks (see Fig. 7).

3. Fix a power outlet to the wall. Requirements to the outlet are as follows:
220V/10A, single-phase, three-wired. It is recommended to place the
outlet on the right side above the water heater.

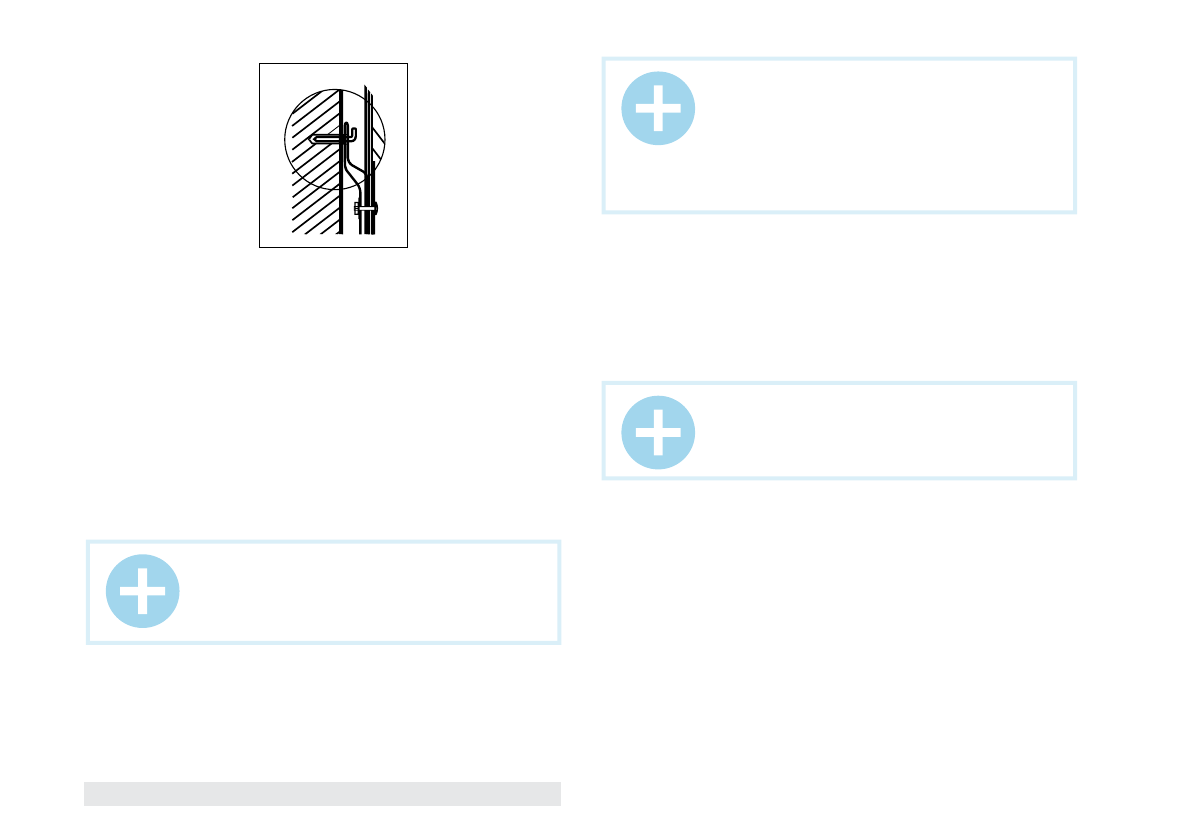

Fig. 7
