www.timberk.com • electrical storage water heater

7

*Does not included in the scope of delivery

Water heater mounting methods

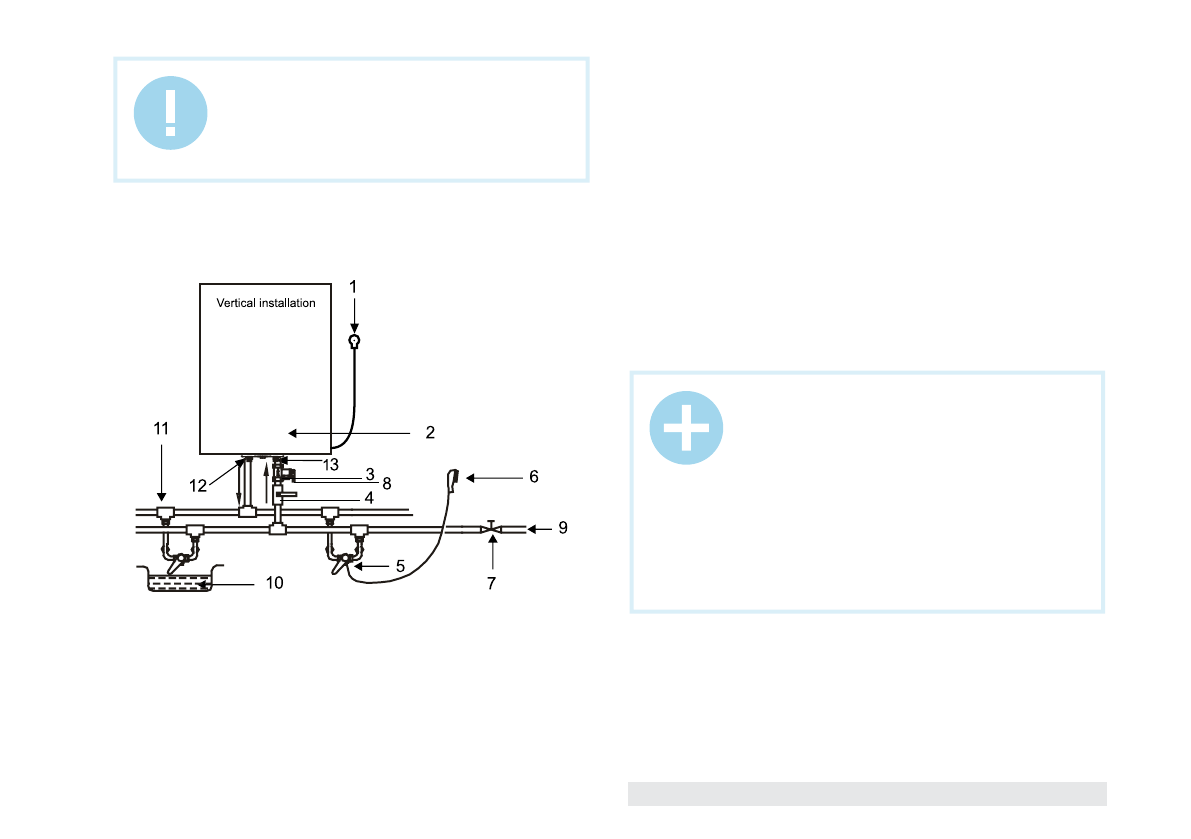

Fig. 6 shows the way to mount the water heater for several consumption
points.

Water heater mounting

1. Power cord with a plug

2. Water heater

3. Check relief valve

4. Cold water supply valve*

5. Mixer*

Fig. 6

IMPORTANT!

You can use the same way of installation for RE9. But,
please, note that pipe of cold water (9) is on the left
position. Pipe of hot water (2) is on the right.

NOTE:

Please, use accessories, provided by the manufacturer,
to install the water heater. Electric water heater must
not be mounted on a wall prior you make sure that the
bracket is installed firmly and securely. Otherwise the
electric water heater may fall down from the wall, which
may cause its damage and even serious accidents
involving bodily injury. When determining points for
bolt holes, it is necessary to provision some spare
space between the lower part of the water heater and
the floor not less than 0.6 m, to make it convenient to
perform maintenance if necessary.

6. Shower header*

7. Water main shut-off valve*

8. Pressure relieving opening

9. Water main

10. Bath tub*

11. T-bend*

12. Water outlet

13. Water inlet
