www.timberk.com • electrical storage water heater

6

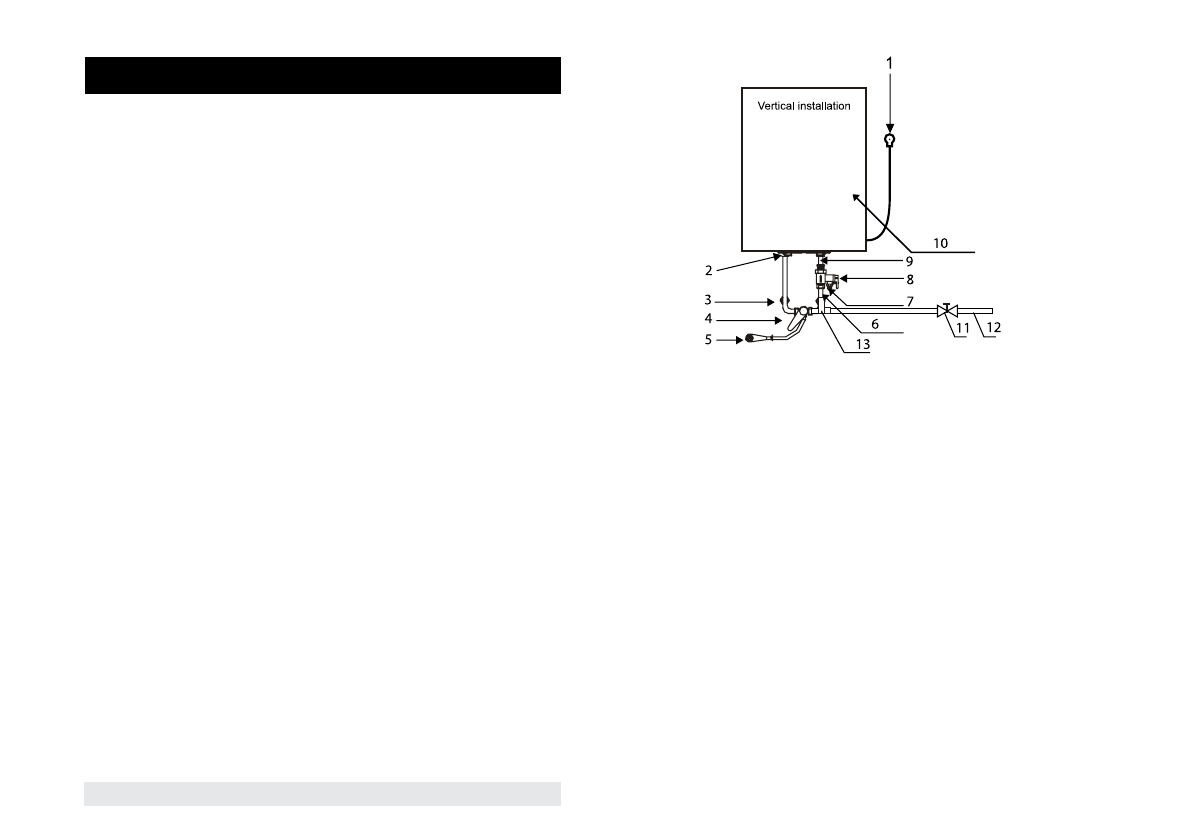

7. WATER HEATER INSTALLATION

1. Power cord with a plug

2. Magnesium anode – water discharge nozzle

3. Water outlet

4. Hot water supply adjustment tap*

5. Mixer*

6. Shower header*

7. Cold water supply adjustment tap*

8. Pressure relieving opening

9. Check relief valve

10. Water inlet

11. Water heater

12. Water main shut-off valve*

13. Water main

14. T-bend*

*Does not included in the scope of delivery

Location

1. Electric water heater should be mounted on a firm wall.

2. The wall, where the electric water heater is to be mounted, must withstand
at least the double weight of the water heater, fully filled with water; there
must be no cracks and other damages on the wall. Otherwise it is necessary
to take measures to strengthen the mounting or mount the water heater on
a special support.

3. If a bathroom is too small, the water heater can be installed elsewhere,
unexposed to direct sunlight and unavailable for moisture. However, to
reduce heat losses in pipelines, the location, where a water heater is to be
installed, must be as close to the place, where hot water is used, as possible.

Water heater mounting methods

Fig. 5 shows the way to mount the water heater for one consumption point.

Fig. 5
