IMPORTANT!

Please, use accessories, provided by the manu-

facturer, to install the water heater. Electric water

heater must not be mounted on a wall prior you make

sure that the bracket is installed firmly and securely.

Otherwise the electric water heater may fall down

from the wall, which may cause its damage and

even serious accidents involving bodily injury. When

determining points for bolt holes, it is necessary to

provision some spare space between the lower part

of the water heater and the floor, and as to the FSM2/

FSQ2 line there also must be some space between

the right side of the water heater and the wall on the

right, not less than 0.6 m to make it convenient to

perform maintenance if necessary.

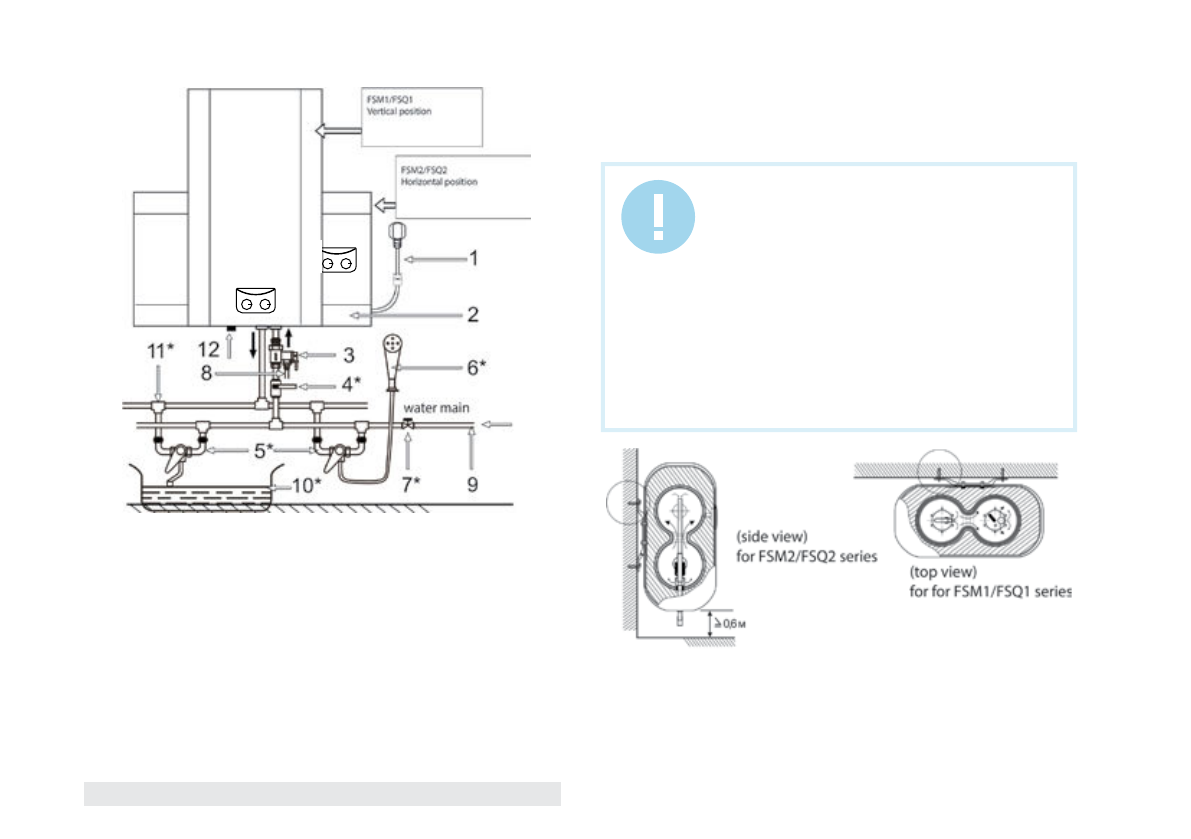

Fig. 7 shows the way to mount the water heater for one consumption point.

1. Power cord with GFCI**

2. Mounted water heater

3. Composite pressure-relief valve

4. Cold water supply valve*

5. Mixer*

6. Shower header*

7. Water main shut-off valve

8. Discharge pipe

9. Water main

10. Bath*

1. Electric water heater should be mounted on a firm wall. If the wall is not
robust enough to hold the weight equal to the doubled weight of the overall
water heater weight, fully filled with water, then it should be mounted on a
special support.

11. T-joint*

12. Magnesium anode – water discharge nozzle

* not included in the delivery set
** Depending on the product batch, GFCI can be located not within the power cable electric
plug.

Fig. 6

Fig. 7
