www.timberk.com • electrical storage water heater

11

Control panel

1. Thermostat handle

Please, use this handle to set the desired temperature of water.  Turning the
knob in a clockwise direction you increase temperature of water.

2. Switcher of power modes

«      » - means OFF position. Turning the knob in a clockwise direction you
increase power from 800W up to 2000W

3. Indicators lighting

If light are blue it means the water heater works, but a water is not heating
inside. If lights are pink/red it means the heating element heats a water
inside tank.

Water heater operation

1. Switching on

1.1 At first, open one of the hot water outlet valves, then open the cold
water supply valve. The electric water heater will start filling with water.
When water flows from the hot tap freely, it means the water heater is fully
filled with water and you can close the hot water outlet valve.

8. WATER HEATER CONTROL

NOTE:

- if pressing test button (2) voltage is not cut off and/or

indicator (1) continues to be lighted, it means that GFCI

safety device is not operating properly.
- if pressing restart button (3) voltage is not restored

and/or indicator (1) doesn’t light up, it means that the

water heater is not operating properly. In both cases

disconnect the water heater and call the service center.
- to reduce the risk of an electric shock, do not

disassemble, remove or fill liquid in this appliance.

NOTE:

When setting temperature, having reached the

optimal heating position “        ” (+58°С (+/- 2°С), you

will hear a sound signal (for some models).

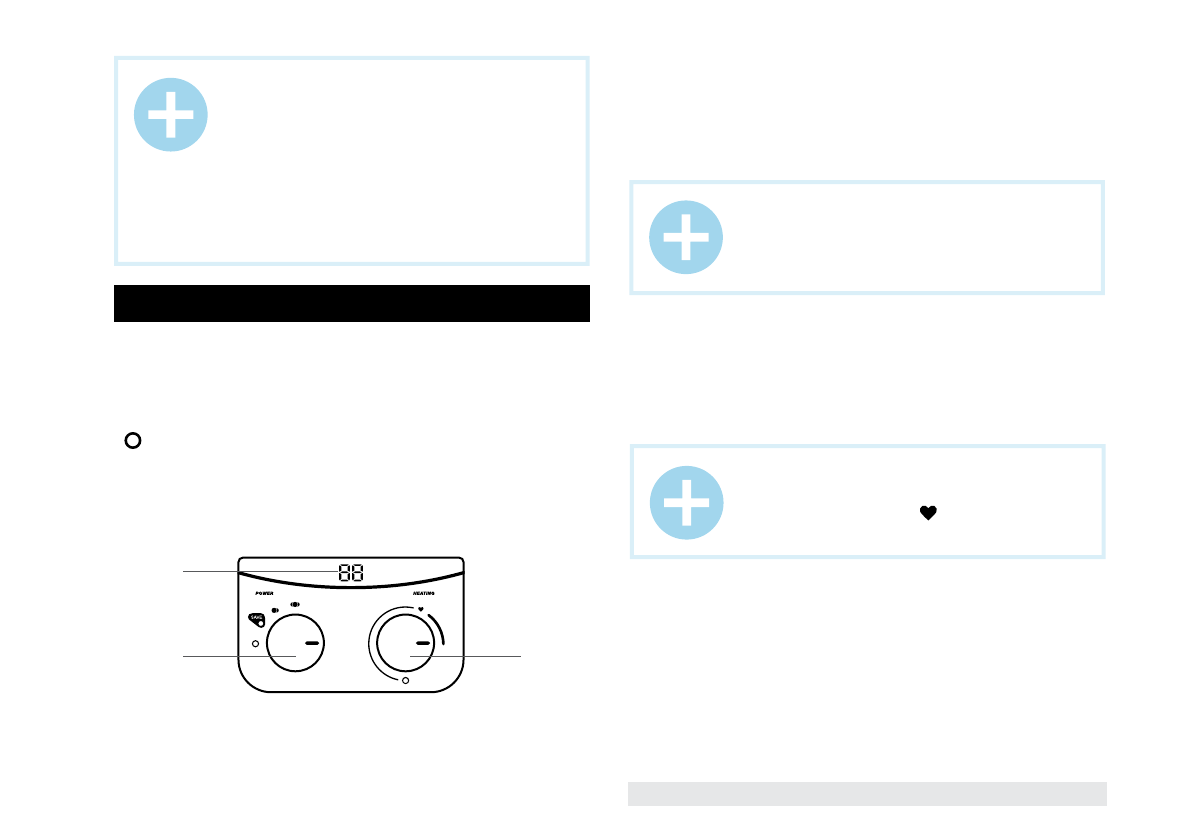

Fig. 10

1.2 Plug the power cord into the outlet, at that an indicator light on GFCI
and temperature controller handle lighting will light up and time will be
shown on the display.

2. Water heating temperature setting

2.1. Temperature can be set within the range 35°С-75°С, in increments
of 1°С.

NOTE:

During normal operation the cold water supply valve

must be set “open”.

2

3

1

2.2 The water heater automatically maintains water temperature. When
water temperature in the water heater reaches the temperature, set by the
user, the heating is automatically switched off.  When water temperature
in the water heater drops to a certain level, the heating is automatically
switched off.
