www.timberk.com • electrical storage water heater

9

2. G1/2 diameter pipes are used to connect the water heater to the water
pipeline.

3. To prevent a leakage when connecting pipes, use rubber sealing gaskets
on the threaded pipe ends.

4. Screw a relief valve to the inlet nozzle, marked blue and embossed arrow
of the water flow direction, so that the water flow direction coincides with
direction of the arrow on the valve’s case.

5. Water heater with the mounted valve must be connected to the water
main – install a shut-off valve at the water inlet point. You need to connect
a drain pipe to the opening of the pressure relief of safety valve. Next you
should put a drain pipe to the sewer.

6. Connect the desired number of consumption points to the outlet nozzle,
marked red.

7. Check leak integrity of joints: open the shut-off cock and one of the cock
assemblies. After the tank is filled with water, as evidenced by issue of water
from the cock assembly, shut the cock assembly and check the leak integrity
of all joints.

Connection to water main

1. The heater must be connected to water main with at least 0.1 MPa
pressure; maximum pressure is 0.7 MPa.

NOTE:

In places or on the wall, where water may get to, the

power outlet installation height must be not less than

1.8 m.

NOTE:

Do not mount additional accessories, such as a shut-

off valve, between the relief valve and the inlet nozzle.

NOTE:

The water heater is the appliance, operating in such

a manner that pressure of water in the water heater

corresponds to the pressure of water in water main.

If pressure in the main exceeds 0.7 MPa, then it is

necessary to mount a pressure reducer before the

water heater so that pressure doesn’t exceed 0.7 MPa.

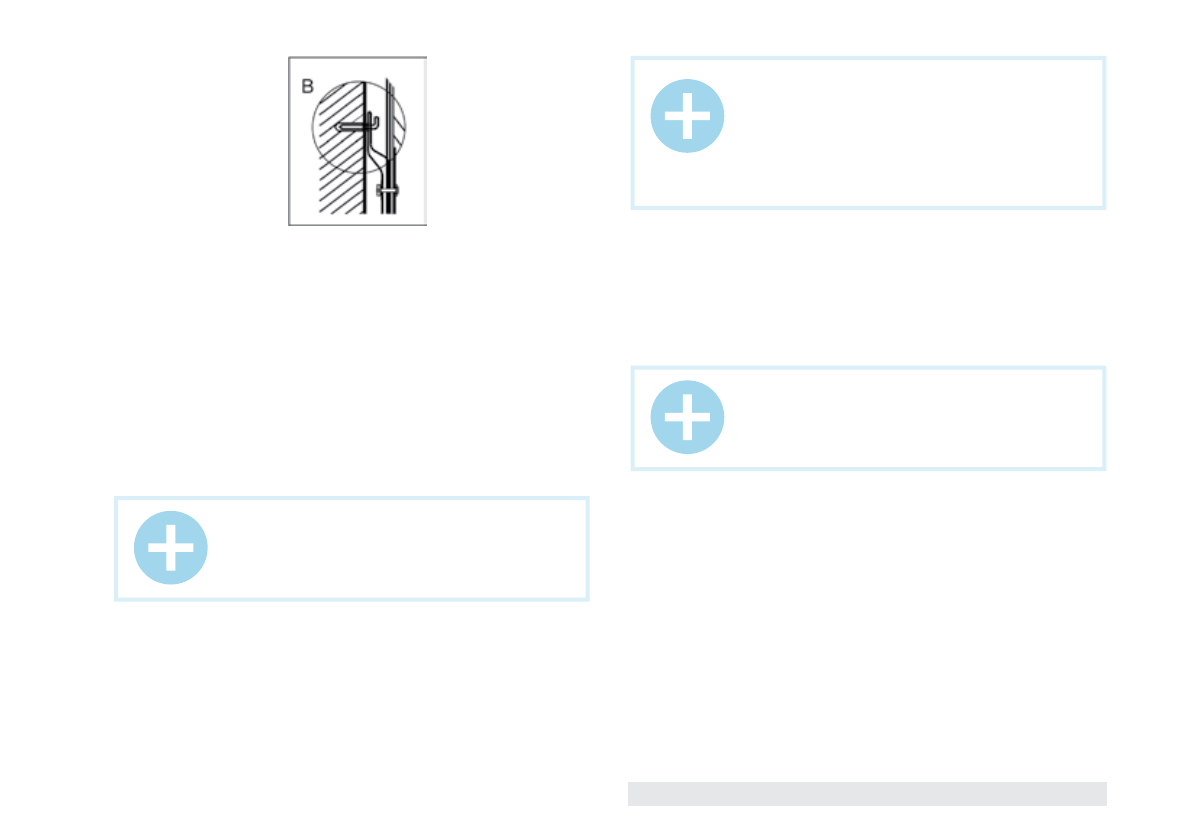

Fig. 8

2. After you chose the proper place to install the water heater, determine
points for holes for expansion hook bolts (to be determined in accordance
with the data sheet for the appliance you chose). Drill two holes of the
corresponding depth in the wall using a drill, dimensionally fit for expansion
bolts, enclosed with the water heater, insert bolts, turn the hook upwards,
securely tighten nuts and then hang the electric water heater on these hooks
(see Fig. 8).

3. Fix a power outlet to the wall. Requirements to the outlet are as follows:
230V/10A, single-phase, three-wired. It is recommended to place the outlet
on the right side above the water heater.

4. If a bathroom is too small, the water heater can be installed elsewhere,
unexposed to direct sunlight and unavailable for moisture. However, to
reduce heat losses in pipelines, the location, where a water heater is to be
installed, must be as close to the place, where hot water is used, as possible.
