26
EN
DSX TOUCH

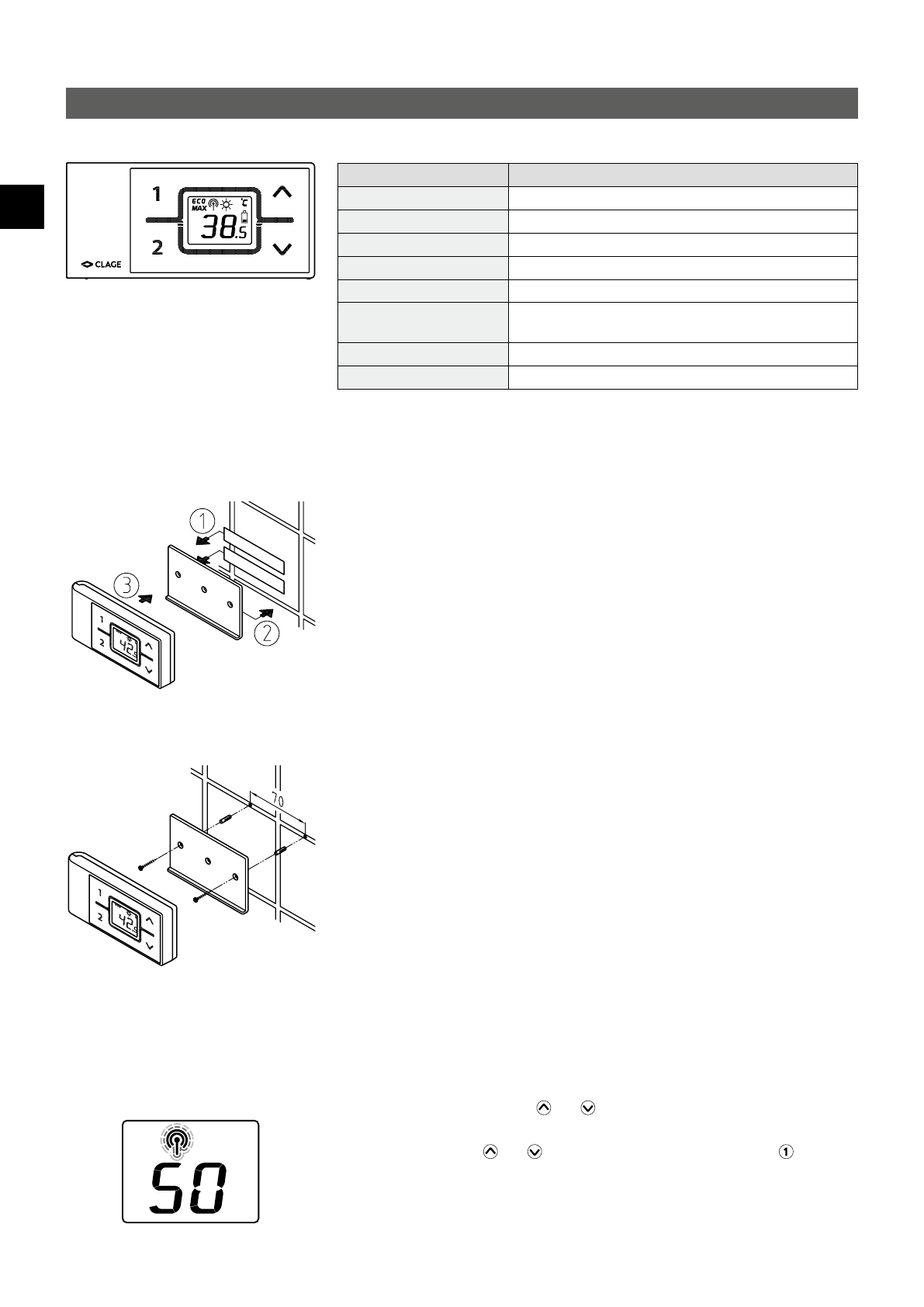

Mounting the wall bracket
• Before attaching the wall bracket to the wall, ensure that the remote control
has radio contact to the instantaneous water heater from its designated posi-
tion.
• The wall bracket of the remote control can either be attached securely with the
included adhesive tape, after stripping off the protection film (as shown in the fig-
ure A), on a rigid board (e.g. tile) or with suitable dowels (Ø 4 mm) and screws (as
shown in the figure B).
• When using the adhesive tape it is not possible to further adjust the position
because of the strong adherence of the glue. Therefore, pay attention to a horizontal
alignment when attaching it.
• The remote control is magnetically retained at the wall bracket.
Initial operation
After inserting the batteries in the remote control its display indicates all symbols for
about 4 seconds. By the time the power settings have been carried out, the remote
control indicates the current setpoint (factory setting 38 °C) and the state of the appli-
ance. In case of a failing radio contact, the display indicates “
no
” and a cyclical, flash-
ing radio symbol (see Troubleshooting).
If the water heater supplies a shower, the water temperature is limited to a maximum
of 55 °C. Refer to the installation instructions of the instantaneous water heater.
Registration of remote control at the instant water heater
The remote control is registered as-delivered condition.
Only register again after performed work reset at the DSX Touch or when the remote
control display continually indicates “
no
”.
1. Make sure that the power supply to the instantaneous water heater is switched on
(fuse).
2. Remove the batteries until the display expires. After inserting the batteries, the
display indicates all symbols for about 4 seconds. During this time, simultaneously
press and hold the arrow keys and for a short time. Then the display shows
the current channel (1 to 99) and a flashing radio symbol.
3. Using the arrow keys and chooses the desired channel. Press key to confirm
the selected channel number. The display changes to registration mode and shows
“
--
” as well as a flashing radio symbol.
4. Place the remote control directly in front of the instantaneous water heater.
4. Remote control
Technical data
Model
FX Remote control
Operating voltage
3 V
Type of battery
2x AAA Alkaline
1)
Type of protection
IP 20
Transmission range
10 metres incl. barrier
Transmission power
max. 1 mW
Transmission and receiving
frequency
868,3 MHz
Radiation
undirected
Approvals
Europe EN 300 220 / CE
1) Do not use rechargeable batteries.
Figure B:
Optional installation with dowels and screws
Figure A:
Installation with adhesive tape
