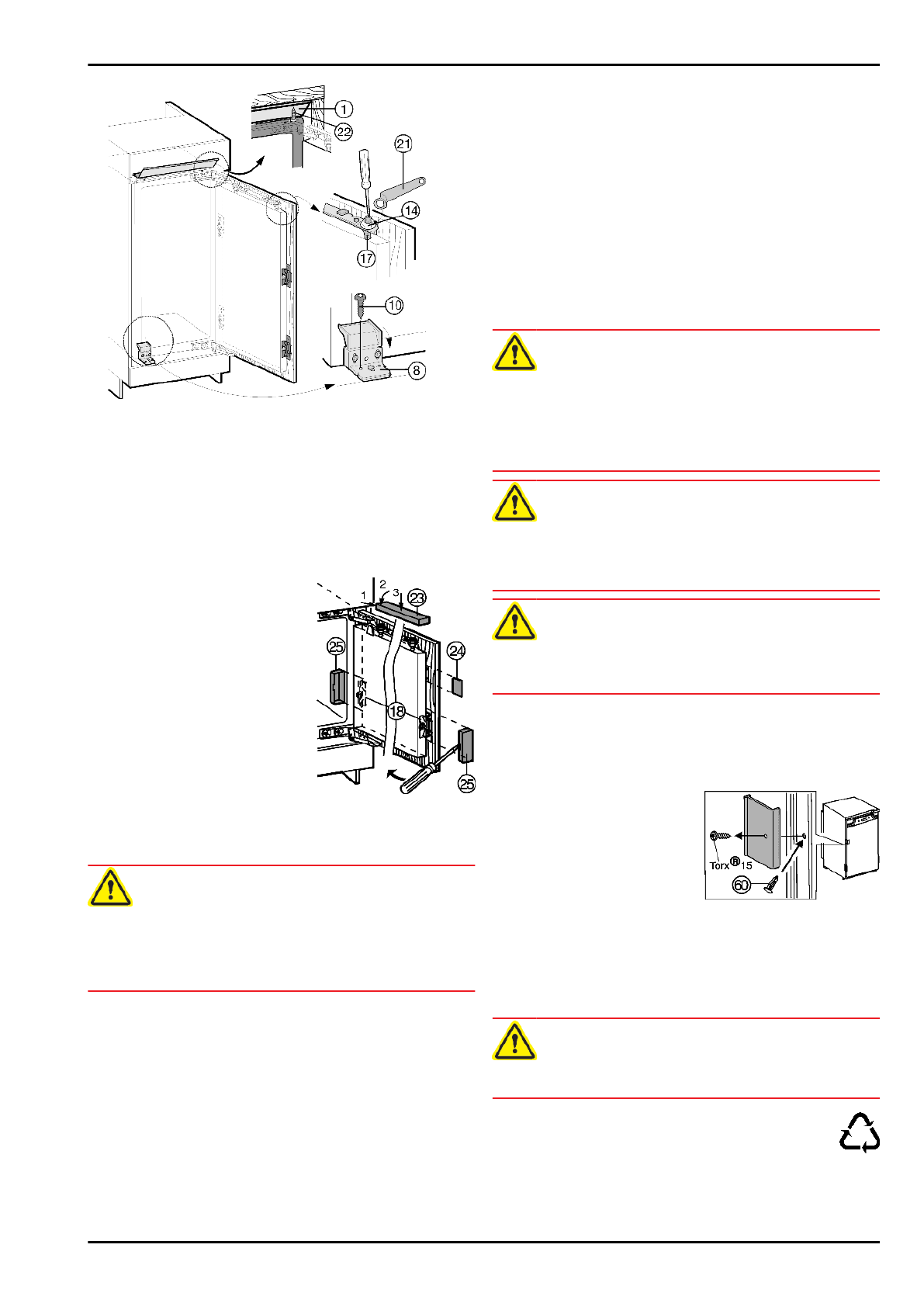

Fig. 27

u

Check the fit of the door and readjust if necessary.

u

Tighten all screws.

u

Tighten  the  locknuts

  Fig.  27  (14)  with  the  ring  spanner

Fig. 27 (21) while holding the adjusting bolts Fig. 27 (17), with

a screwdriver.

u

Screw  the  equaliser  trim

  Fig.  27  (1)  from  below  using  three

screws

 Fig. 27 (22) onto the cupboard ceiling.

u

Fix  the  appliance  in  the  round  hole  at  the  bottom  with  the

second  screw

  Fig.  27  (8)  through  the  plastic  bracket

Fig. 27 (10).

u

Snap covers into place.

u

Attach top cover

 Fig. 28 (23)

and snap into place.

u

Attach

side

cover

Fig. 28 (24), push it to the limit

and then press until it audibly

snaps into place.

u

Attach  covers

  Fig.  28  (25)

sideways,  then  draw  them

forwards  with  a  screwdriver

so  that  they  snap  into  place

well.

Fig. 28

4.3 Transporting the appliance

CAUTION

Risk of injury and danger of damage as a result of incorrect trans-

port!

u

Transport the appliance in a packed condition.

u

Transport the appliance upright.

u

Do not transport the appliance without assistance.

4.4 Installing the appliance

In the event that the appliance is damaged, contact the supplier

immediately before connecting to the mains.
The floor at the site must be flat and level.
Do not install the appliance in a location where it is exposed to

direct radiation of the sun, next to a cooker, heater and similar.
Do not install the appliance without assistance.

Standard EN 378 specifies that the room in which you install your

appliance must have a volume of 1 m

2

 per 8 g of R 600a refrig-

erant used in the appliance. If the room in which the appliance is

installed is too small, a flammable gas-air mixture may form in the

event  of  a  leakage  in  the  refrigeration  circuit.  The  quantity  of

refrigerant used in your appliance is indicated on the type plate

on the inside of the appliance.
Fit the appliance in stable kitchen units only.

The following ventilation gaps must be observed:

q

The depth of the ventilation channel at the rear of the unit must

be at least 38 mm.

q

There must be a ventilation space of at least 200 cm

2

 in the

plinth and at the top of the unit.

q

Basically the principle applies: the larger the ventilation space,

the more energy-saving the appliance is in operation.

WARNING

Fire hazard due to dampness!

If live parts or the mains lead become damp this may cause short

circuits.

u

The appliance is designed for use in enclosed areas. Do not

operate the appliance outdoors or in areas where it is exposed

to splash water or damp conditions.

WARNING

Fire hazard due to refrigerant!

The refrigerant R 600a is environmentally friendly but flammable.

Escaping refrigerant may ignite.

u

Do not damage the piping of the refrigeration circuit.

WARNING

Fire hazard and danger of damage!

u

Do  not  place  appliances  emitting  heat  e.g.  microwaves,

toasters etc. on the appliance!

u

Detach the connecting cable from the rear of the appliance,

removing  the  cable  holder  at  the  same  time  because  other-

wise there will be vibratory noise!

After installation:

u

Remove all transit supports.

u

Unscrew the red transport lock.

Close  the  vacated  retaining

hole using the stopper (60).

u

Dispose of packaging material (see 4.5) .

If the appliance is installed in a very damp environment, conden-

sate may form on the outside of the appliance.

u

Always see to good ventilation at the installation site.

4.5 Disposing of packaging

WARNING

Danger of suffocation due to packing material and plastic film!

u

Do not allow children to play with packing material.

The packaging is made of recyclable materials:

-

corrugated board/cardboard

-

EPS moulded parts

-

polythene bags and sheets

-

polypropylene straps

u

Take the packaging material to an official collecting point.

Putting into operation

8
