Ensure that the following tools are to hand:

q

Crosstip screwdriver

q

Torx screwdriver 10

q

Torx screwdriver 15

q

Torx screwdriver 25

q

Torx screwdriver 30

q

Spanner

The shelf and side walls of the unit must be at right-angles to one

another. Align the unit with a spirit level and an angle. If neces-

sary, level out by building up from underneath.
Check installation dimensions:

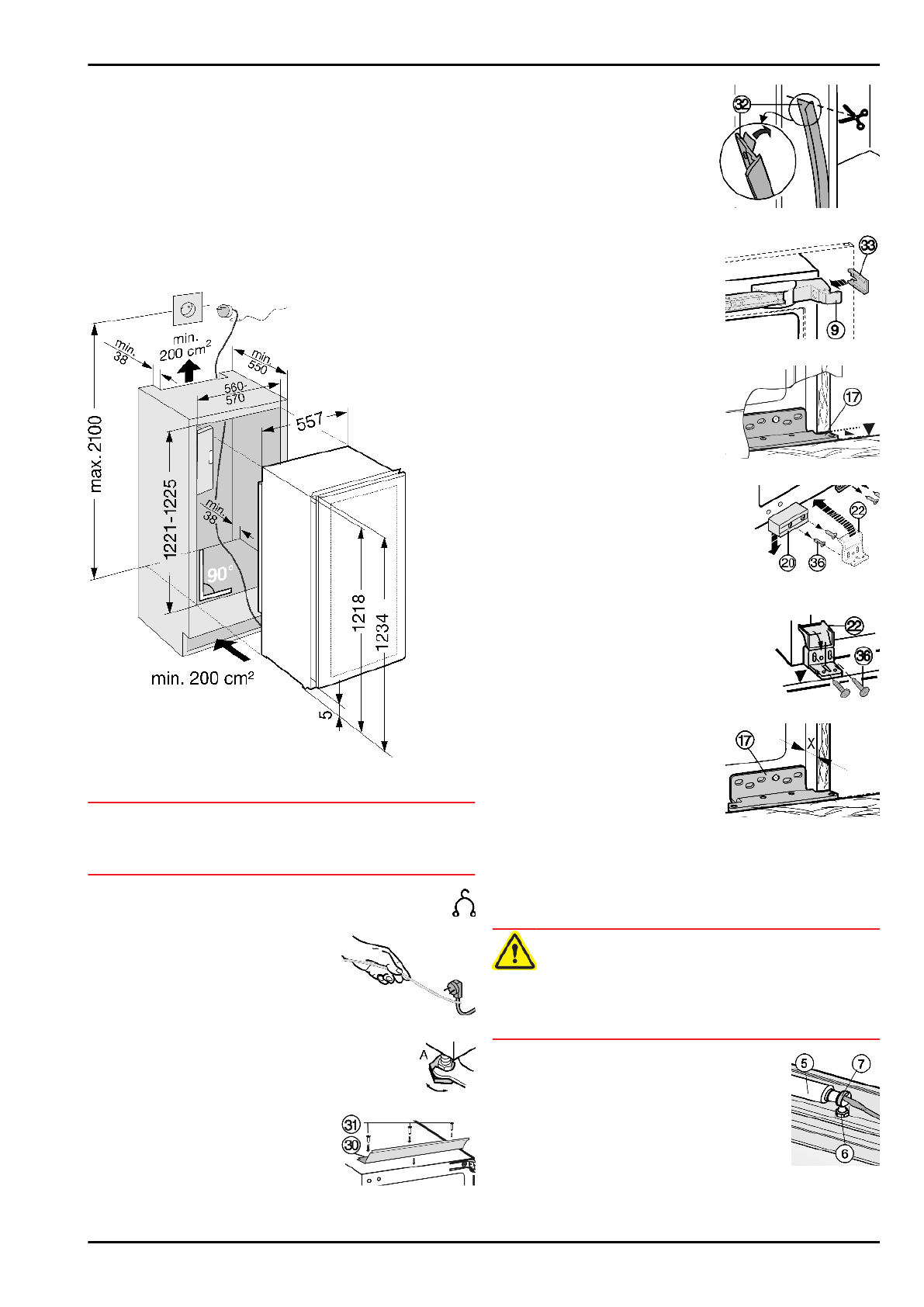

Fig. 23

4.2.1 Installing the appliance

ATTENTION

Risk of damage to the door!

u

Detach door transit supports only when the appliance is slid

fully into the recess.

u

Detach the connecting cable from the rear of the appli-

ance,  removing  the  cable  holder  because  otherwise

there will be vibratory noise!

u

Lay the connecting cable with the

help of a string in such a way that

the  appliance  can  be  easily  con-

nected after fitting.

u

Slide the appliance 2/3 of the way

into the recess.

Fig. 24

u

Turn in the adjustable-height feet all the way.

u

Fix

the

equaliser

trim

Fig.  25  (30)  with  screws

Fig.  25  (31)  in  the  pilot  holes  in

the ceiling of the appliance.

Fig. 25

u

Strip the protective film off the

cover trim

 Fig. 26 (32).

u

Adhesively  affix  the  cover

trim

 Fig. 26 (32) on the handle

side so as to be flush with the

front of the side wall of the ap-

pliance.

u

If necessary, shorten the cov-

er trim to recess height.

Fig. 26

For  16  mm  thick  unit  walls

(568 mm wide recess):

u

Press spacer

 Fig. 27 (33) onto

the turn hinge

 Fig. 27 (9) in the

area of the slot.

For  19  mm  thick  unit  walls

(562 mm wide recess):

u

the spacer is not needed.

Fig. 27

u

Push the appliance into the re-

cess  until  the  lower  turn  hinge

Fig. 28 (17) abuts the end face

of the unit wall.

w

The  turn  hinge

  Fig.  28  (17)

bears on the floor of the recess.

Fig. 28

u

Detach the

 Fig. 29 (20) transit sup-

port.

If the appliance is transported again,

the transit support has to be re-fitted:

Fig. 29

u

Do not dispose of the transit support for the door.

u

Screw plastic bracket

 Fig. 30 (22) onto

the  handle  side  of  the  appliance  with

M5 screws

 Fig. 30 (36).

u

Align the plastic bracket

 Fig. 30 (22) so

as to be flush with the front edge of the

unit floor.

Fig. 30

u

At  the  bottom  of  the  turn  hinge

Fig.  31  (17),  measure  the  dis-

tance (X) from the front edge of

the  unit  side  wall  to  the  appli-

ance.

u

Check  whether  the  measure-

ment  made  is  the  same  all  the

way  round,  otherwise  the  door

may not close properly.

u

If  necessary,  extend  the  adjust-

able-height  foot  on  the  handle

side so as to make up for any un-

evenness of the floor.

Fig. 31

CAUTION

Danger of injury by the soft stop mechanism!

If the soft stop mechanism contracts and strikes the appliance,

fingers may get caught and the appliance may be damaged.

u

Keep a firm hold on the soft stop mechanism.

u

Lift the soft stop mechanism

 Fig. 32 (5)

off the ball journal

 Fig. 32 (6). Carefully

lift the spring using a screwdriver in order

to detach the spring clip

 Fig. 32 (7).

u

Carefully swivel the soft stop mechanism

to the appliance.

Fig. 32

Putting into operation
