These hobs can be inserted in a built-in kitchen unit
whose depth is between 550 and 600 mm. The hobs
dimensions are shown in the relevant diagram.
The edge of the cut out must have a minimum distance
from the rear wall of 55 mm.
If there are side walls, or sides of the furniture unit near
the hob, the cut out edges must have a minimum
distance of 100 mm.

Hanging forniture units or hoods must be placed at 650
mm. minimum from the hob.

A

= Auxiliary burner

SR

= Semirapid burner

R

= Rapid Burner

PE

= Electric hotplate

Fitting the hob to the worktop

The hobs can be installed in a kitchen unit with an
opening for insertion whose dimensions are shown in
Fig. 9. To install the hob, proceed as follows:

1) Place the sealing gasket (supplied with the hob) on

the edges of the cut out: place it exactly on the front
and rear edge, taking care that the sealings meet
without overlapping;

2) Fix the hob with the relevant screws (Fig. 10). The

traction of the screws is able to trace the sealing, any
excess of which can be easily removed.

The edge of the hob forms a double labyrinth seal which
provides a total guarantee against infiltration of liquids.

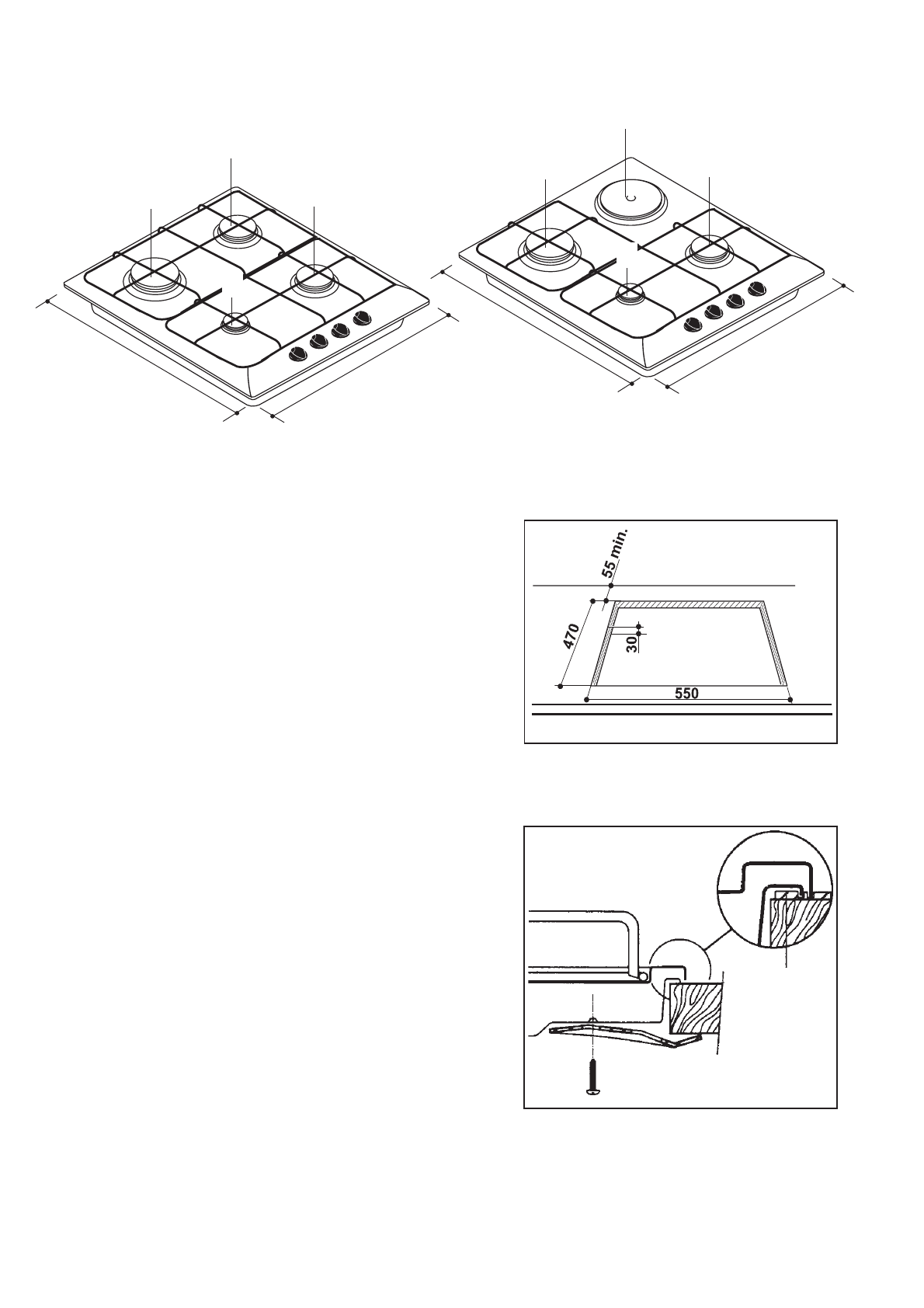

Fig. 9

Fig. 10

a) Sealing gasket

Dimensions are given in millimeters

Building In

F O   2 0 9 8

F O   0 1 9 9

a

500

580

SR

SR

R

A

500

580

PE

SR

R

A

Mod. ZGL 646

Mod. ZXL 636
