10

a) Removable panel
b) Space possibly useful for

connections

Fig. 11

Fig. 12

Fig. 14

Fig. 15

F O   1 0 1 3

FO 0947

FO 0198

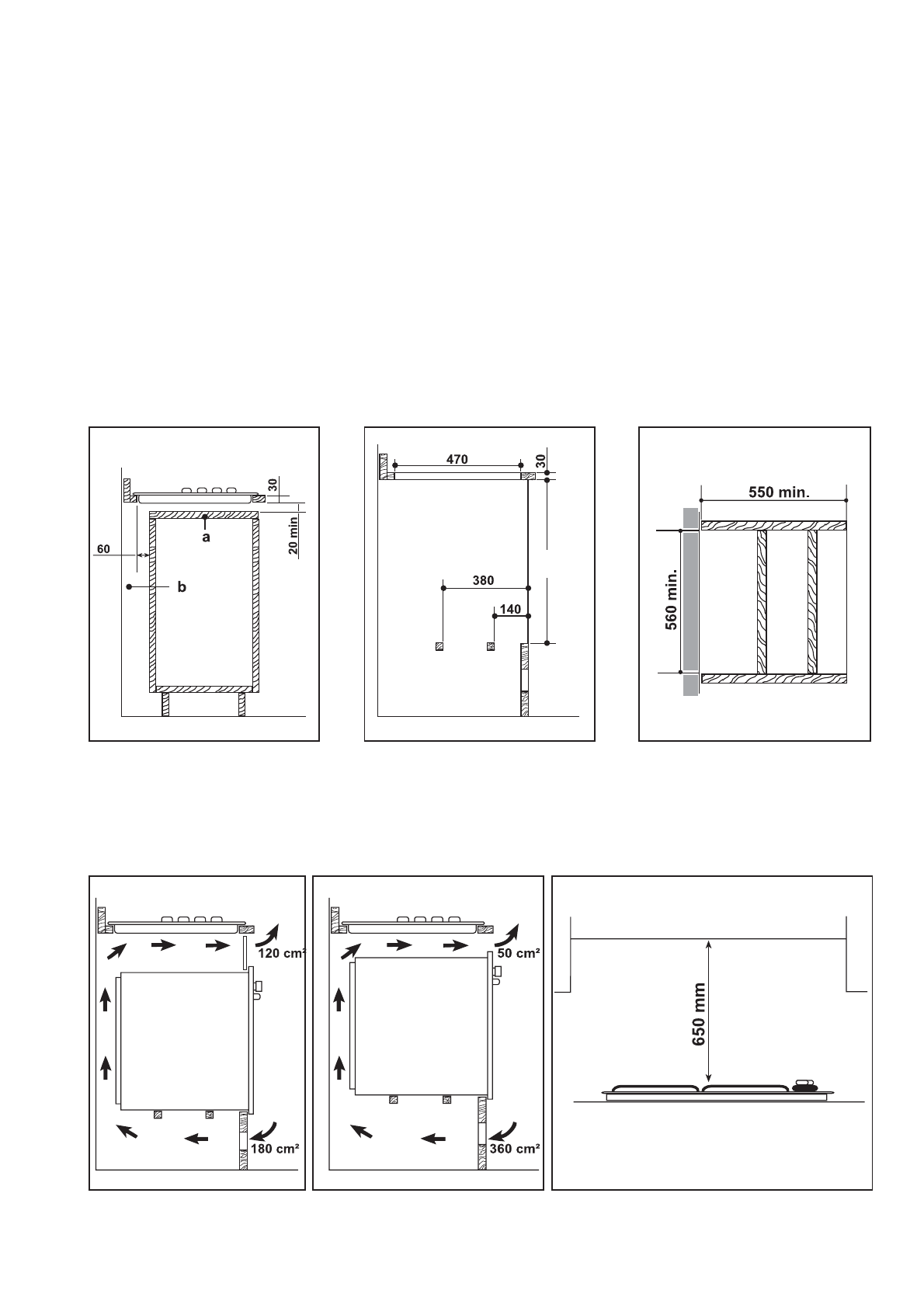

Kitchen unit with door

Proper arrangements must be taken in designing the
forniture unit, in order to avoid any contact with the
bottom of the hob which can be heated when it is
operated. The recommended solution is shown in Fig.
11.
The panel fitted under the hob should be easily
removable to allow an easy access if a technical
assistance intervention is needed.

Fig. 13

Kitchen unit with oven

The hob recess dimensions must comply the indication
given in Figs. 12 and 13 and must be provided with
brackets to allow a continuous supply of air.
To avoid overhating, the building in should be carried out
as shown in Figs. 14 e 15.
The hob's electric connection and the oven's one must
be carried out separately, both for safety reasons and
to allow the oven to be easily taken off the unit.
In case a hood with lenght of 600 mm. is fitted over the
hob, the hanging furniture units beside the hood must
be placed at 650 mm. minimum from the hob (Fig.16).

Possibilities for insertion

F O   0 9 3 9

F O   0 9 3 8

F O   2 0 9 9

Fig. 16

595
