6

Gas Burners Rating

Rapid Burner

3,0 kW (G20) - 2,8 kW (G30/G31)

Semirapid Burner

2,0  kW

Auxiliary Burner

1,0  kW

Appliance Class

3

Category

II2H3B/P

Setting

Natural gas

G20  - 20 mbar

Gas connection

 G 1/2"

•

The following instructions about installation and
maintenance must be carried out by qualified
personnel in compliance with the regulation in
force.

•

The side walls of the unit in which the hob is
going to be installed, must not exceed the height
of the working top.

•

Avoid installing the appliance in the proximity of
inflammable materials (e.g. curtains, tea towels
etc.).

•

The appliance must be electrically disconnected
before all interventions. If any electric supply to
the appliance is required to carry out the work,
ensure all the necessary precautions are followed.

T H E   M A N U FA C T U R E R   W I L L  N O T  A C C E P T
LIABILITY, SHOULD ANY OF THE OTHER SAFETY
INSTRUCTIONS INCORPORATED IN THIS BOOK
OR THE REGULATION IN FORCE BE IGNORED.

Technical Data

Instruction for the Installer

Electric hotplate

(ZXL 636)

Ø 145 mm.

            1,5 kW

Electric Supply

230 V

~

 50 Hz

Hob recess dimensions

Length

550 mm.

Width

470 mm.

Gas connection

Choose fixed connections or use a flexible pipe in
stainless steel in compliance with the regulation in force.
If using flexible metallic pipes, be careful they do not
come in contact with mobile parts or they are not
squeezed. Use the same attention when the hob is
combinated with an oven.

IMPORTANT  -

 To ensure a correct operation, a saving

of energy and the long-life of the appliance, the voltage
pressure of the appliance must correspond to the
recommended values.

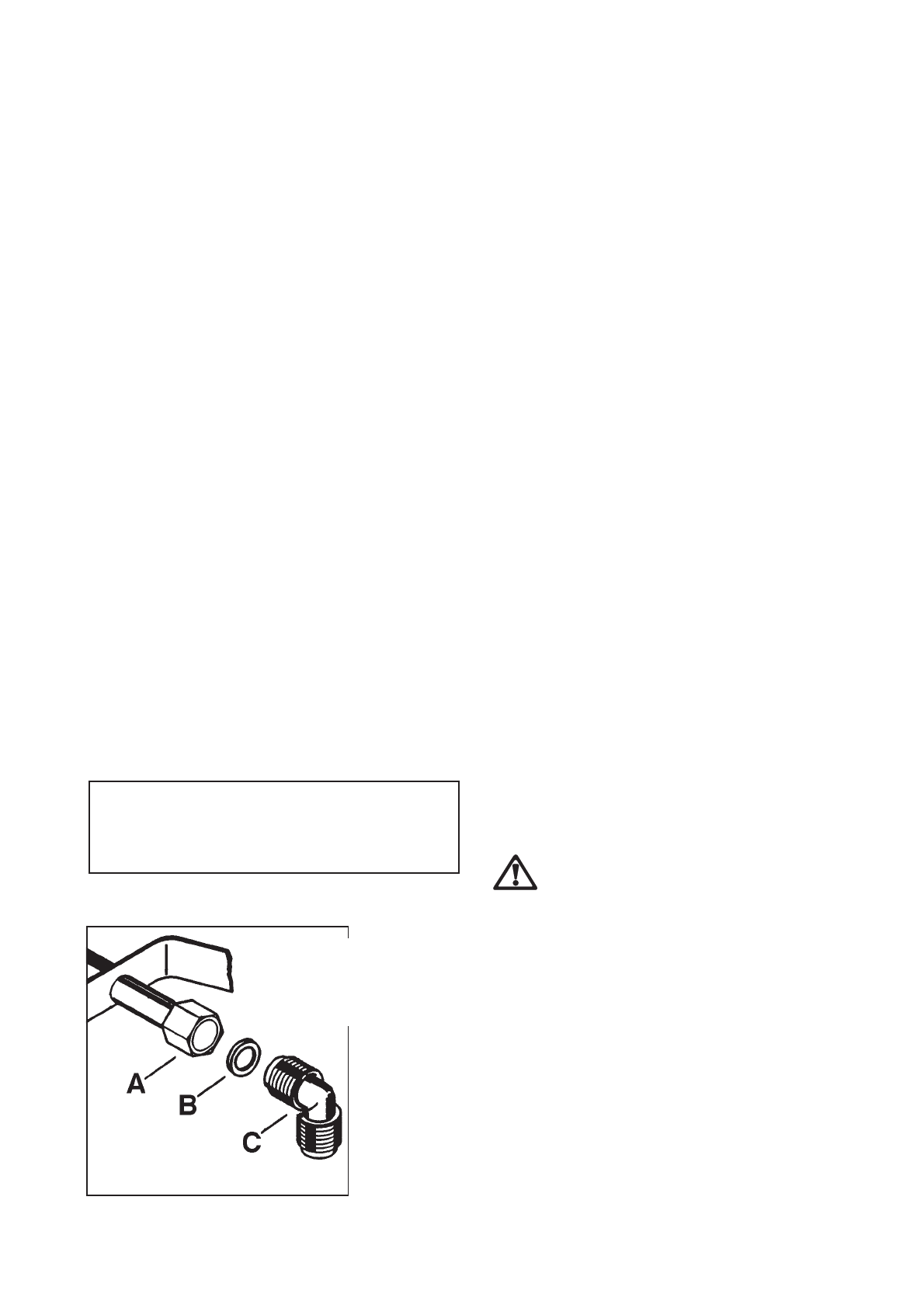

The adjustable connection is fixed to the comprehensive
ramp by means of a threaded nut G 1/2". Interpose the
sealing between the components as shown in Fig. 4.
Screw the parts without forcing, adjust the connection in
the required direction and tighten everything.

IMPORTANT - When the final connection has
been made, it is essential that a thorough leak
test is carried out on the hob and installation.
Use some soapy water, never a flame.

Fig. 4

F O   0 2 6 4

A) Ramp with ending nut
B) Seal
C) Adjustable connection
