E L E C T R I C A L

R E Q U I R E M E N T S

Required Power Supply
220 – 240 V AC, 50 – 60 Hz, 15 amp service

Maximum Connected Load
2.6 kW

The Wolf electric fryer module requires a
separate, grounded 3-wire 220 – 240 V AC,
50 – 60 Hz, 15 amp service with its own circuit
breaker or fuse. A properly rated cord should
be attached to the power supply box of the
fryer as shown in the illustration below. Open
the power box to expose the screws with
corresponding numbers. Loosen the 1, 5, and
ground screws. Run the cord through the
circular hole and into the power supply box.
Attach the Neutral wire to the number 1
position. Line should be attached to the 5
position and attach the ground to the corre-
sponding ground screw. After tightening the
screws, close the cover to the power supply
box without pinching any of the wires.

Verify that power is disconnected from
the junction box before proceeding.

W O L F

F RY E R   M O D U L E

You must follow local codes and ordinances
when installing your service.

IMPORTANT NOTE: The correct voltage,
frequency and amperage must be supplied to
the appliance from a dedicated, grounded
circuit which is protected by a properly sized
circuit breaker or time delay fuse. The proper
voltage, frequency, and amperage ratings are
listed on the product rating plate located on
the underside of the module. Refer to the illus-
tration on page 5.

The wiring diagram covering the control circuit
is located inside the module control box.

IMPORTANT NOTE: To avoid electrical shock
when disconnecting the fryer module, all
poles / wires must be disconnected from the
power supply box.

The complete appliance must be properly
grounded at all times when electrical
power is applied.

Improper connection can result in a fire
hazard!

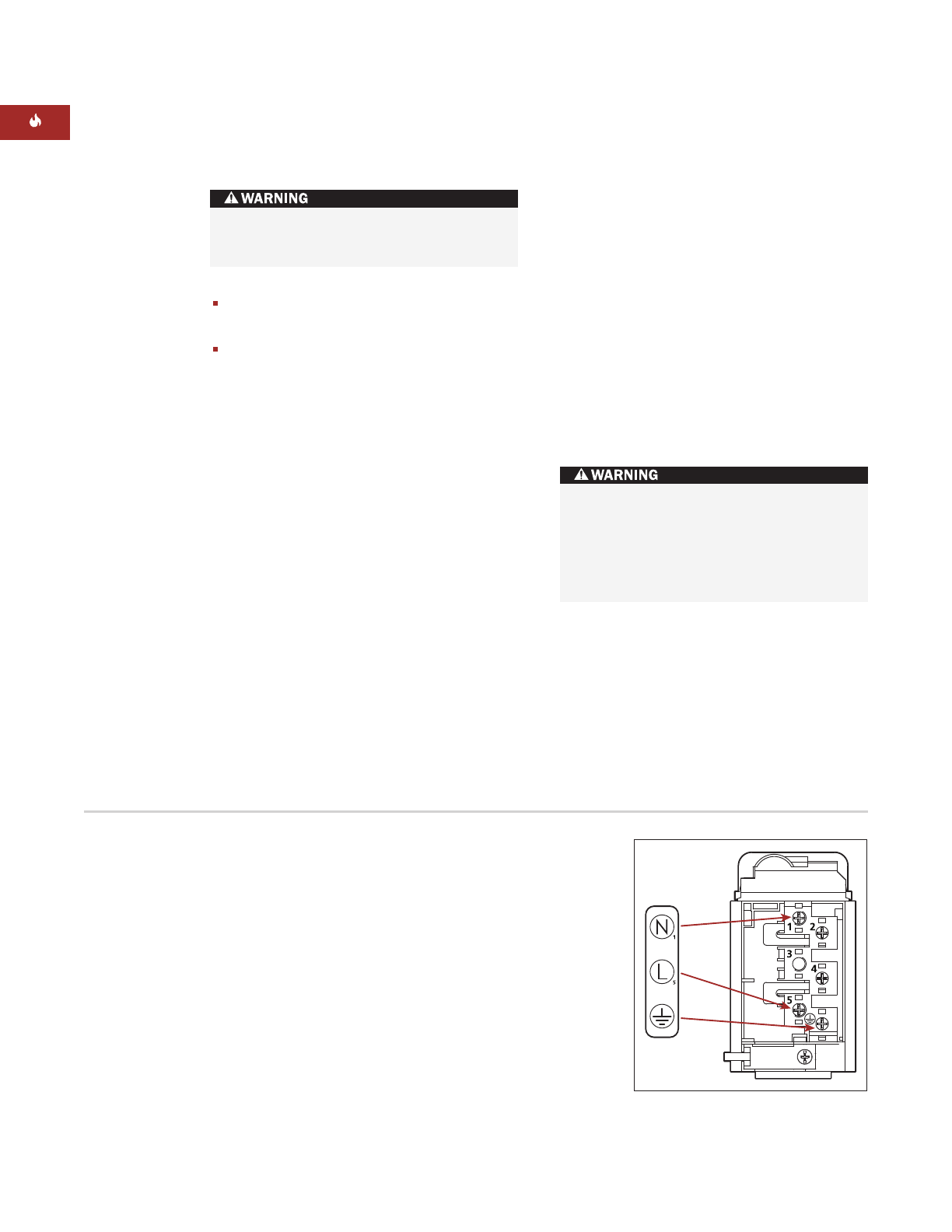

Power supply box
