8

When two or more modules are installed
together, an integrated module filler strip
(IFILLER/S) is recommended. Contact your
Wolf dealer for information on accessories.

IMPORTANT NOTE: Review specific
installation instructions for product to product
capabilities.

W O L F

F RY E R   M O D U L E

M A N U A L   D R A I N

O U T L E T

IMPORTANT NOTE: The fryer module must be
installed in a base cabinet that allows access to
the manual drain valve for draining the oil. A
heat-resistant bucket must be positioned under
the drain outlet to accept the oil. The bucket
must be able to hold 7.6 L. Refer to the Instal-
lation Specifications illustration on
page 7 for location of the manual drain outlet.

M U LT I P L E C O O K T O P

I N S T A L L A T I O N

IMPORTANT NOTE: If the fryer module is to
be used with a combination of additional
cooktop units or modules with a filler strip,
the cut-out width is calculated by adding the
corresponding units' cut-out dimensions plus
32 mm for each additional unit.

When multiple units are installed side by side,
each unit must have its own separate recom-
mended electrical circuit.

64

mm

min

FRONT OF COUNTERTOP

489

mm

CUT-OUT

DEPTH

743

mm

TWO MODULES WIDTH

1130

mm THREE MODULES WIDTH OR

1124

mm / 762 mm COOKTOP AND ONE MODULE

1518

mm FOUR MODULES WIDTH OR

1511

mm / 762 mm COOKTOP AND TWO MODULES OR

1276

mm / 914 mm COOKTOP AND ONE MODULE

356

mm

CUT-OUT

WIDTH

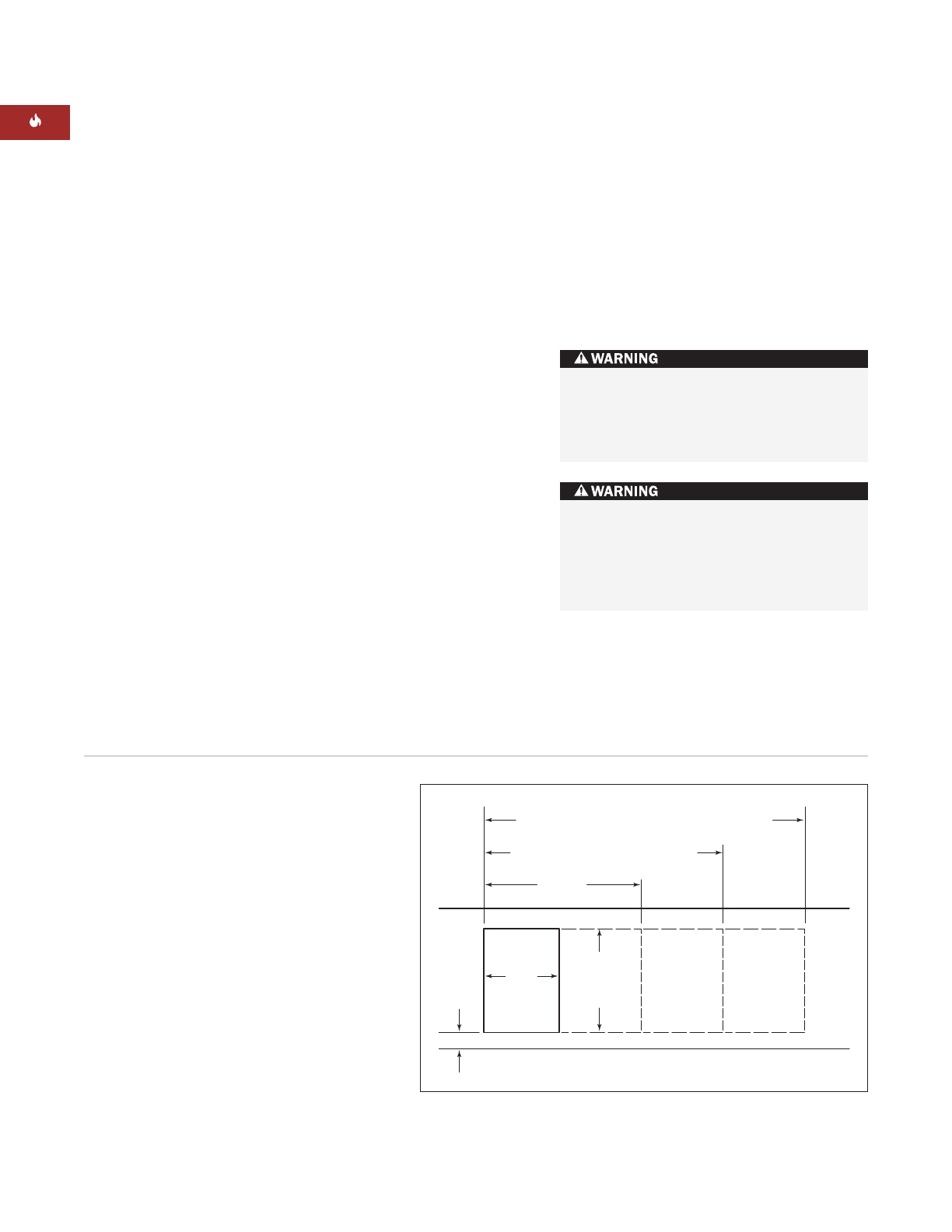

Countertop cut-out dimensions for installation of multiple cooktops

This fryer module must be installed at
least 381 mm away from any open-flame
cooking device. The open flame may
cause ignition of oil.

This fryer module must be installed at
least 381 mm away from a Wolf steamer
module, as contact between water and
hot oil may cause burns from steam and
hot oil.
