• To connect the appliance to the gas supply, use a tested and certified flexible hose.
• The flexible connection hose should be able to move freely.
It should not come into contact with the movable parts of the furniture or the bottom of the
cooking hob.
• If an electric oven is built into the kitchen element under the cooking hob, it should be
fitted with a cooling fan.

After connecting the gas hob, check the joints for any leaks.

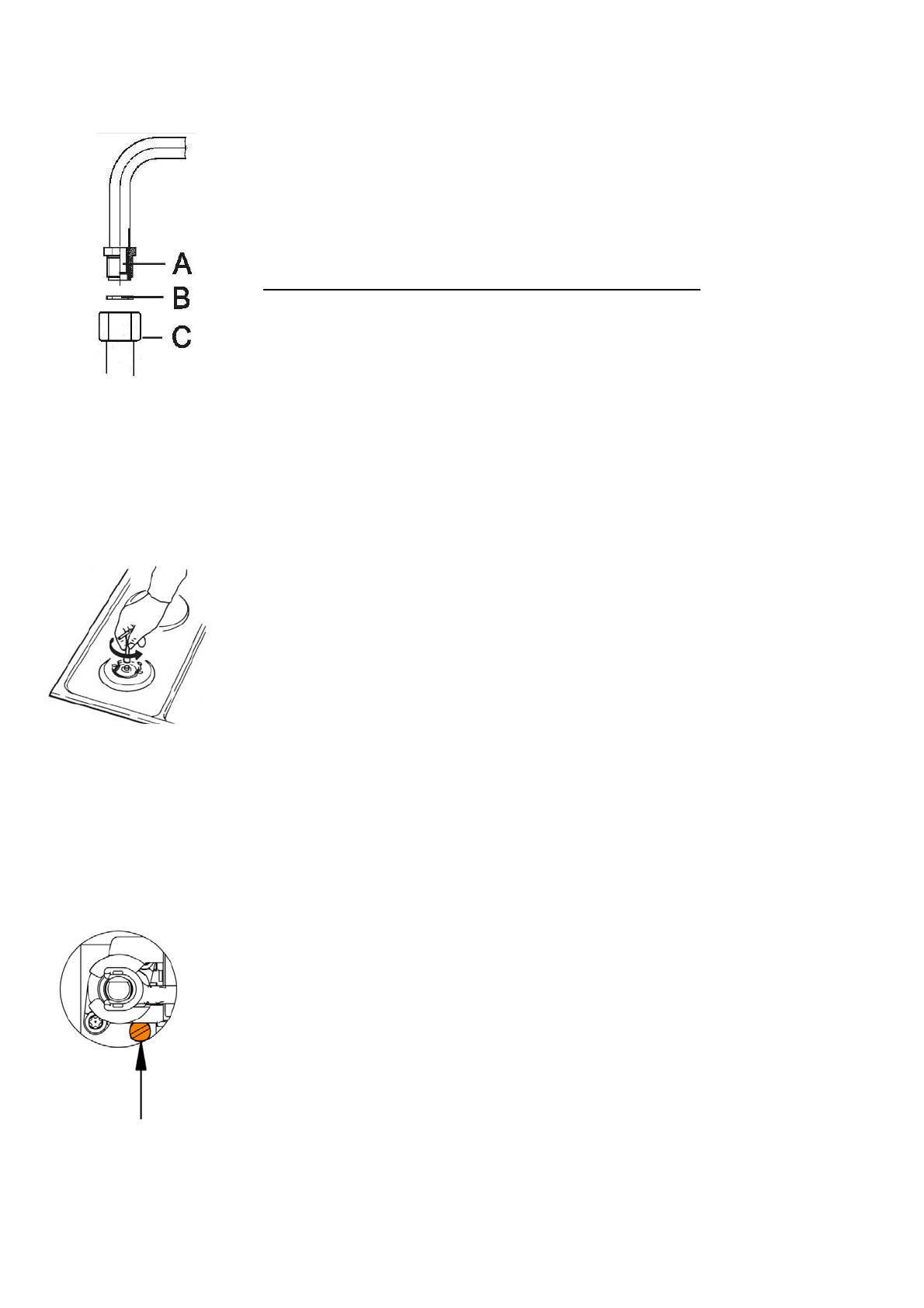

Gas supply connection plug
A

ISO7-1 R1/2 connection plug

B

Non-metal gasket with thickness of 2 mm

C

Pipe adapter for liquid gas (depending on the model)

Only use pipes and seals in accordance with the Standards

. These pipes must be

installed so that, when fully extended, their length does not exceed 2000 mm. For easier
installation and to prevent gas leaks, attach the swivel coupling to the cook top first, and
then to the gas mains pipe. Inverting this sequence may hamper the gas seal between
the pipe and the cook top.

Important: when the installation is complete, check that all couplings are
completely sealed by using a soapy solution. Never use a flame. Also ensure that
the flexible pipe cannot come into contact with any moving part of the cook top
(e.g. drawer) and that it is not in a position where it could be damaged.

After the connection, check the burners for correct operation.
The flames must be clearly visible, and should be blue and green at the center. If the
flame is unstable, increase the minimum power.

Adaptation to a different
type of gas

• The procedure or adaptation of the cooker to another type of gas does not require
removal of the appliance from the worktop.
• Before adapting, disconnect the appliance from the power mains and close the gas
supply valve.
• Replace the existing nozzles for nominal thermal load with corresponding nozzles for
the new gas type and supplied provided (see table below).
• After finishing this sequence, replace the old setting label with the new one provided for
the new injectors.


Adjustment elements

To leave the adjustment elements accessible, please observe the following instructions:
• Remove the support grid and burner covers with respective crowns.
• In double burners, adjustment elements are accessible behind the main nozzle
protective plate.
• Remove the control knobs, including the gaskets.

Gas valve

Minimum thermal load regulation valve

Minimum flow
adjustment

Instructions for town (G110, G120, G150.1) and methane gas (G20, G25)

1. Light the burner and bring it to the minimum position.
2. Remove the gas tap knob and turn the adjustment screw on the side of the tap rod:



anti-clockwise to increase the gas flow



clockwise to reduce the gas flow

until a regular minimum flame is obtained.
3. Re-assemble the knob and verify burner flame stability (when quickly rotating the hand
from maximum to minimum position the flame must not shut off).
4. Repeat the operation on all gas taps.

Instructions for liquid gas (LPG: G30, G31)

Tighten the screw on the side of the tap, rod clockwise completely.

Warning: these tasks may only be carried out by a qualified technician, authorized by the gas distributing
company or authorized service center!
