Connecting:
• Incorrect connection may destroy parts of the appliance, making the warranty void.
• Before connecting the appliance, make sure the voltage indicated on the rating plate is
consistent with the voltage in your home network. Connection voltage should be checked
by a qualified technician using a corresponding measuring device!
• Connection cable on the back of the appliance should be led in such way that it does
not touch the appliance back wall, as this part will get very hot during operation.
The following can be used for connection:
H05RR-F – 3x0,75mm
2
H07RN-F – 3x0,75mm
2
H05RN-F – 3x0,75mm
2
H05V2V2-F – 3x0,75mm
2
H05VV-F – 3x0,75mm
2
LIVE = L = BROWN
EARTH =
= GREEN / YELLOW
NEUTRAL = N = BLUE
CONNECTING THE COOKING HOB TO THE GAS SUPPLY
• The appliance must be connected in compliance with all relevant regulations, and it may only be used in well ventilated
/ aerated rooms. Before connecting or using the appliance, please read the instruction manual.
• Before installing and connecting, make sure the local natural gas supply network and connection (type of gas and
pressure), are compatible with your appliance version.
The category with the related types of gas can be used are included in
ʺ
ADAPTATION TO A DIFFERENT
TYPE OF GAS
ʺ
Table
• The version of this appliance is indicated on the rating plate.
• This appliance is not suitable for connection to a burning fumes exhaust system (i.e. a chimney).
The appliance must be installed and connected in compliance with the relevant effective installation regulations. Special

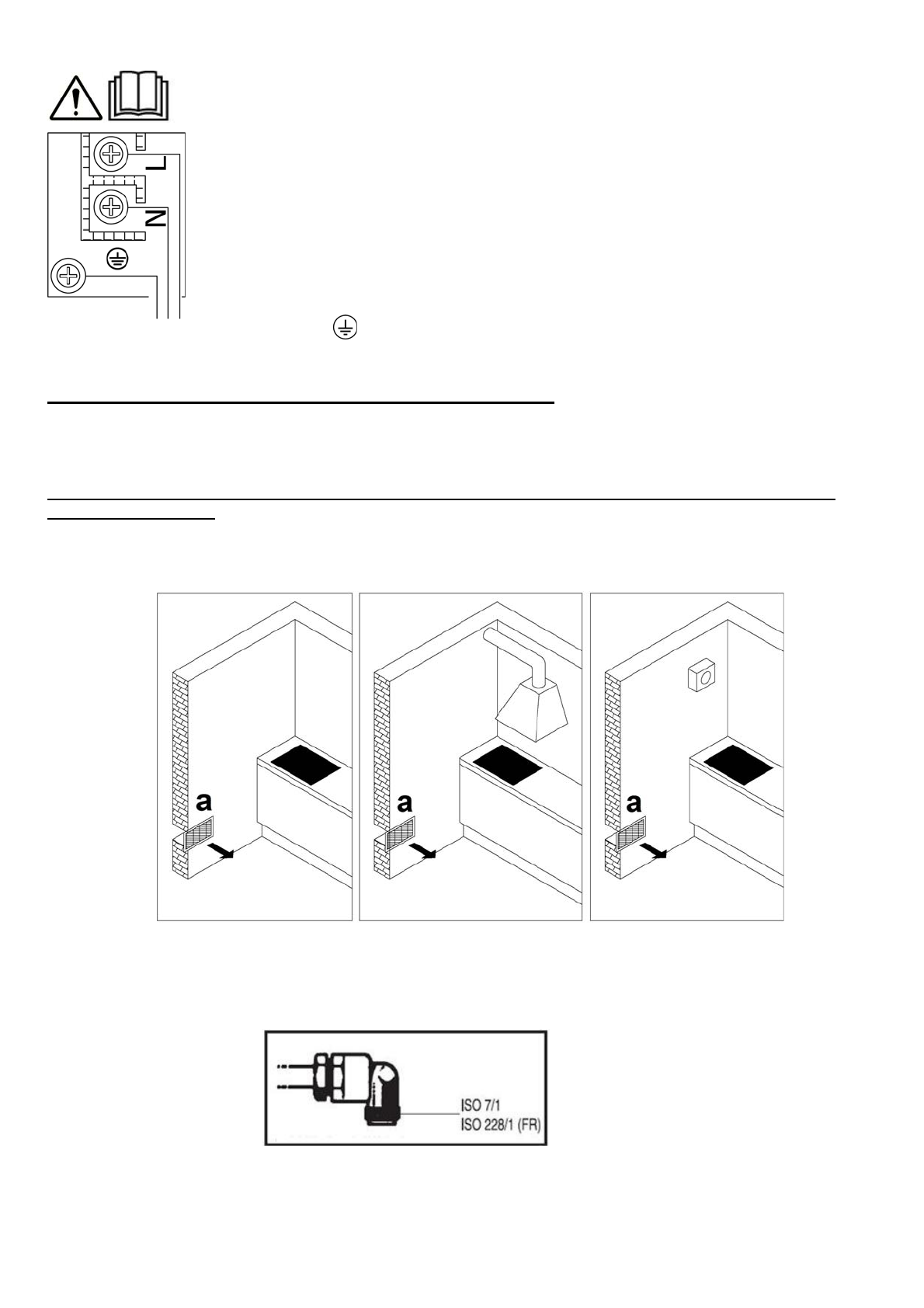

care must be taken to ensure adequate ventilation / aeration (
a
= min. 100 cm
2
).
Connection
• When connecting the appliance to the gas supply, follow the regulations of the local gas
distributor.
• On the lower side, the cooking hob is fitted with a gas connection plug with a ISO7-1
R1/2 thread.
• Also supplied with the appliance is an adapter for liquid gas, a taper male, and a non-
metal gasket.
• When connecting, the knee R1/2 should be held firmly to prevent it from rotating.
• For sealing of the connection joints, use a non-metal approved gaskets and approved
sealants.
• The gaskets should only be used once. The thickness of the flat non-metal gaskets
should not be deformed more than by 25 percent.
