6

Linksys AC1200 Max Wi-Fi Range Extender

Connecting with the extender’s PIN

Use this method if your client device asks for the extender’s PIN.

1.  On the client device, enter the PIN listed on the extender’s Wi-Fi Protected

Setup screen. (It is also listed on the product label on the bottom of the
extender.) When the connection is complete, the Wi-Fi Protected Setup
light on the extender will be solid.

2.  Click OK on the extender’s Wi-Fi Protected Setup screen within two

minutes.

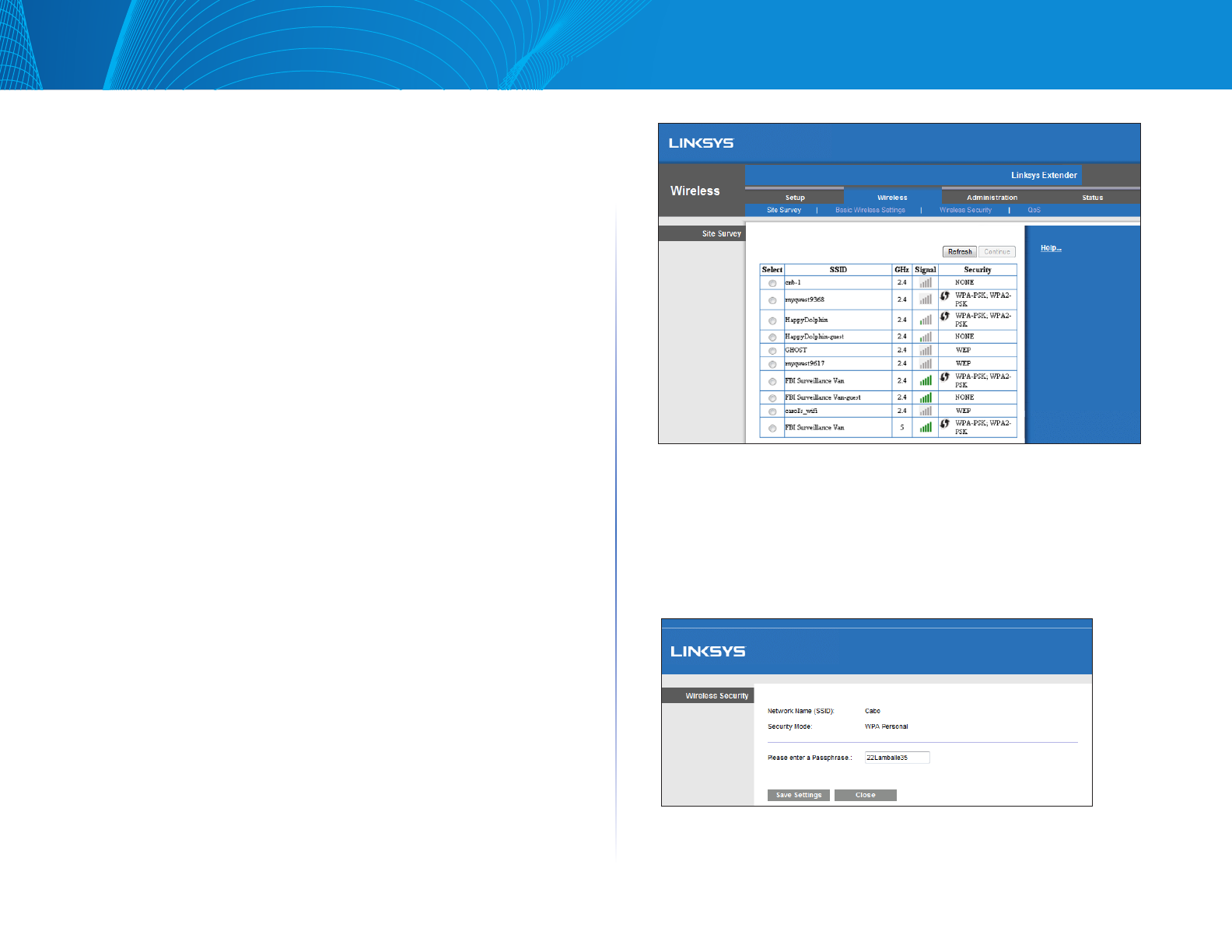

How to use Site Survey

Site Survey gives a snapshot of all neighboring access points and wireless
routers within range of the extender.

To open the Site Survey page:

1.  Log in to the browser-based utility (see “How to access the browser- based

utility” on page 5).

2.  Click the Wireless tab. Click the Site Survey page.

3.  Select—To connect to a wireless network, click the button next to the

wireless network name (SSID) in the Select column, and click Connect.

4.  SSID—Displays the name of neighboring wireless networks.

5.  GHz—Displays the radio band (in GHz) of the neighboring wireless

networks

6.  Signal Strength—Displays the relative position of the neighboring

access points by indicating the power of the wireless signal received: 1
bar= 20%,2 bars=40%, 3 bars=60%, 4 bars=80%, 5 bars=100%. If no bar is
displayed, the extender is located too far away from the upstream access
point. Try to keep the signal strength between 60% and 100% for optimum
performance.

7.  Security—Displays the mode of security in use by the neighboring APs. If

a network supports Wi-Fi Protected Setup, the Wi-Fi Protected Setup icon
is also displayed.

To connect your extender with an access point or router in Site Survey, you
will need to know the password or passphrase of the network on that device.

1.  Select the network name (SSID) that you want to repeat with your extender

by clicking the corresponding button in the Select column.

2.  Click Connect. When prompted, enter the password or passphrase used to

secure your wireless network. The type of security information required in
this screen must match your access point or router’s wireless security settings.

3.  Click  Save Settings. Your extender wireless parameters should be

configured. The wireless interface will restart, and the extender will
connect to the access point or router you have chosen.
