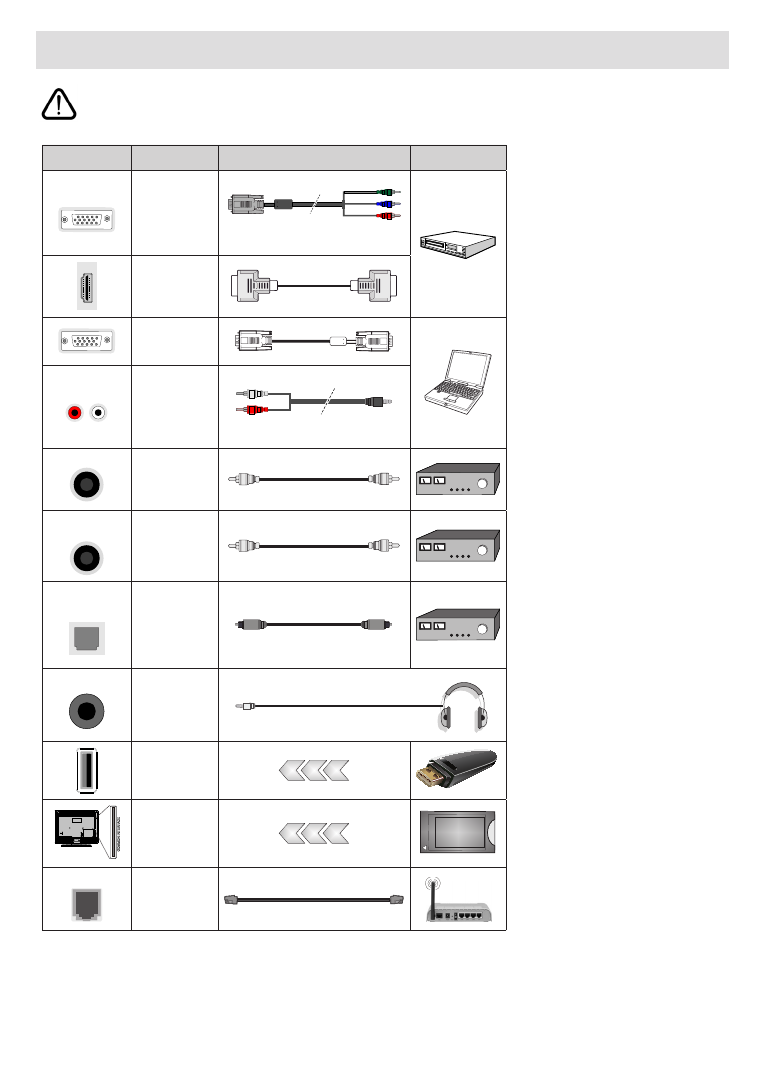

Other Connections

 If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making

any connection. After the connection is done, you can turn on the units and use them.

Connector

Type

Cables

Device

COMPONENT  Component

Video

Connection

(back)

VGA to

Component Connection Cable

HDMI

Connection

(back&side)

VGA

Connection

(back)

AUDIO IN

VGA/

Component

Audio

Connection

(back)

Component/VGA

 Audio Cable

SPDIF

SPDIF

(Coaxial Out)

Connection

(back)

SPDIF

(optional)

SPDIF

(Coaxial Out)

Connection

(back)

SPDIF

(optional)

SPDIF

(Optical Out)

Connection

(back)

HEADPHONE

Headphone

Connection

(side)

USB

Connection

(side)

CI

Connection

(side)

CAM

module

LAN

Ethernet

Connection

(back)

LAN / Ethernet Cable

To enable VGA/Component audio,

you will need to use the back audio

i n p u t s  w i t h  a  VGA/Component

audio cable for audio connection.

When using the wall mounting kit

(contact your dealer to purchase one,

if not supplied), we recommend that

you plug all your cables into the back

of the TV before mounting on the

wall.  Insert or remove the CI module

only when the TV is SWITCHED

OFF. You should refer to the module

instruction manual for details of the

settings. The USB inputs on the

TV support devices up to 500mA.

Connecting devices that have current

value above 500mA may damage

your TV. When connecting equip-

ment using a HDMI cable to your

TV, to guarantee sufficient immunity

against parasitic frequency radiation

and trouble-free transmission of high

definition  signals,  such  as  4K  con

-

tent, you have to use a high speed

shielded (high grade) HDMI cable

with ferrites.
