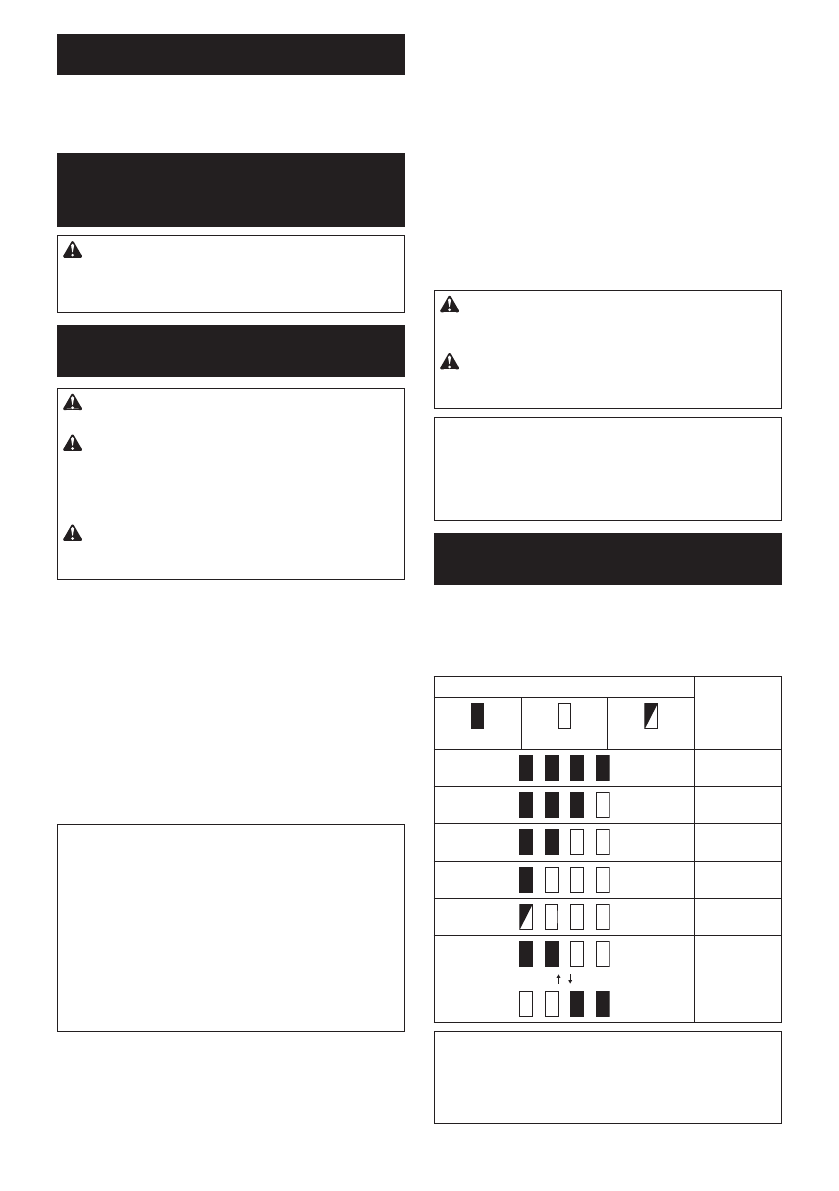

11 ENGLISH

PARTS DESCRIPTION

►

Fig.1:

1.

 Head unit

2.

 Float

3.

 Float cage

4.

 Cloth

filter

5.

 Tank

FUNCTIONAL

DESCRIPTION

CAUTION:

Always be sure that the appliance

is switched off and the battery cartridges are

removed before adjusting or checking function on

the appliance.

Installing or removing battery

cartridge

CAUTION:

Always switch off the appliance

before installing or removing battery cartridges.

CAUTION:

Hold the cleaner and battery car-

tridges firmly when installing or removing battery

cartridges.

 Failure to do so may cause them to slip

off your hands, resulting in damage to the cleaner and

battery cartridges or personal injury.

CAUTION:

Be careful not to pinch your fin

-

gers when opening or closing the battery cover.

Failure to do so may cause personal injury.

The cleaner has double battery slots. With two identical

batteries in parallel, you can extend your running time

in one or more uses without having to stop to recharge

batteries. The cleaner also works with a single battery,

so you can choose with either double batteries or single

battery according to your needs.

►

Fig.2:

1.

 Left battery slot

2.

 Right battery slot

With double batteries

Continuous drive with two batteries allows longer run

-

time and more efficient cleaning. When the first battery

is becoming empty, the cleaner automatically switches

a power source, so it continues working with the second

battery.

NOTE:

 The left battery slot (when facing the front of

the cleaner) has priority over the right battery slot.

The right battery slot will only be identified as a power

source, either when no battery is installed in the

left battery slot or the battery in the left battery slot

becomes empty.

NOTE:

 You can remove the battery from the left

battery slot and recharge it after the cleaner has

switched its power source from the left battery slot to

the right without ceasing operation. To give priority

back to the left battery slot after installing a recharged

battery, restart the cleaner.

With a single battery

Only one battery is required as a power source in either

the left or right battery slot. The cleaner automatically

determines which battery slot is available according to

operating conditions.

Installation and uninstallation

To install battery cartridges, release the lock first,

and open the battery cover. Then insert the battery

cartridges.

►

Fig.3:

1.

 Lock

2.

 Battery cover

Align the tongues on the battery cartridges with the

grooves in the battery housing and slip them into place.

Insert them all the way until they lock in place with a

little click.

Then lock the battery cover.

►

Fig.4:

1.

 Battery cartridge

2.

 Button

To remove the battery cartridges, slide them out of the

battery housing while pressing and holding the buttons

in front of the cartridges.

CAUTION:

Always install the battery cartridge

fully.

 If not, it may accidentally fall out of the appli

-

ance, causing injury to you or someone around you.

CAUTION:

Do not install the battery cartridge

forcibly.

 If the cartridge does not slide in easily, it is

not being inserted correctly.

NOTE:

 When the cleaner switches the power source

from the first battery to the second, it may require a

temporary halt in operations, causing a slight loss of

suction. Please note that it is not malfunction so the

cleaner recovers and resumes operations immedi

-

ately after the pause.

Indicating the remaining battery

capacity

Press the check button on the battery cartridge to indi

-

cate the remaining battery capacity. The indicator lamps

light up for a few seconds.

►

Fig.5:

1.

 Indicator lamps

2.

 Check button

Indicator lamps

Remaining

capacity

Lighted

Off

Blinking

75% to 100%

50% to 75%

25% to 50%

0% to 25%

Charge the

battery.

The battery

may have

malfunctioned.

NOTE:

 Depending on the conditions of use and the

ambient temperature, the indication may differ slightly

from the actual capacity.

NOTE:

 The first (far left) indicator lamp will blink when

the battery protection system works.
