 English |

19

Bosch Power Tools

1 609 929 Y16 | (26.3.12)

Declaration of Conformity

We declare under our sole responsibility that the product de-

scribed under “Technical Data” is in conformity with the fol-

lowing standards or standardization documents: EN 60745

according to the provisions of the directives 2011/65/EU,

2004/108/EC, 2006/42/EC.
Technical file (2006/42/EC) at:

Robert Bosch GmbH, PT/ETM9,

D-70745 Leinfelden-Echterdingen

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

12.03.2012

Assembly

Mounting the Protective Devices

f

Before any work on the machine itself, pull the mains

plug.

Note:

After breakage of the grinding disc during operation or

damage to the holding fixtures on the protection guard/power

tool, the machine must promptly be sent to an after-sales

service agent for maintenance for addresses, see section “Af-

ter-sales Service and Customer Assistance”.

Protection Guard for Grinding

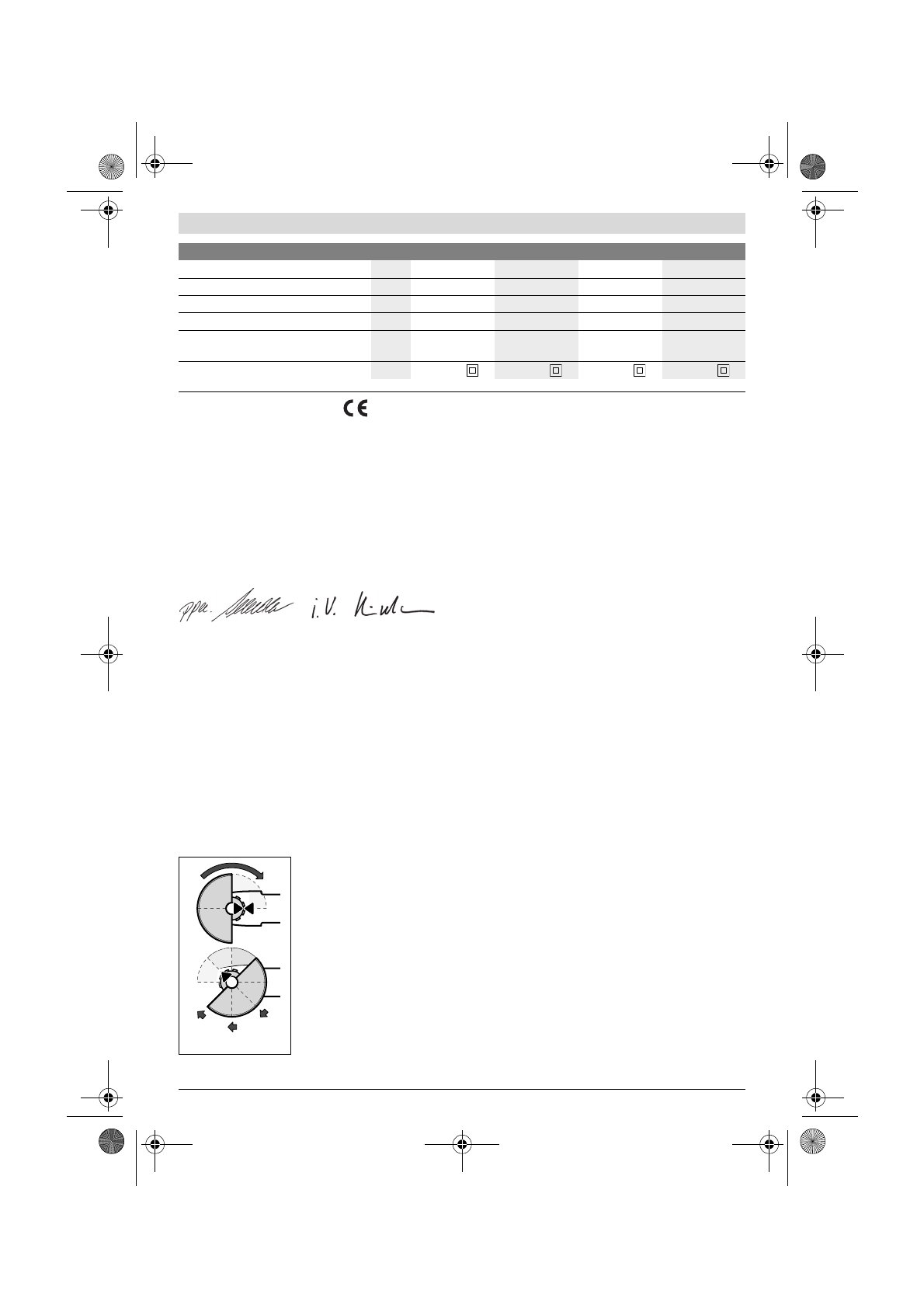

Place the protection guard

11

 on-

to the spindle collar as shown in

the illustration. The triangle marks

on the protection guard must cor-

respond with the respective

marks on the gear case.
Press the protection guard

11

 on-

to the spindle collar until the

shoulder of the protection guard

is seated against the flange of the

machine, and turn the protection

guard until it can clearly be heard

to engage.

Adjust the position of the protection guard

11

 to the require-

ments of the work process. For this, press the release lever

1

upward and turn the protection guard

11

 to the required po-

sition.

f

Adjust the protection guard 11 in such a manner that

sparking is prevented in the direction of the operator.

f

The protection guard 11 may be turned only upon actu-

ation of the release lever 1! Otherwise the power tool

may not continue to be used under any circumstances

and must be taken to an after-sales service agent.

Note:

 The encoding keys on the protection guard

11

 ensure

that only a protection guard that fits the machine type can be

mounted.

Protection Guard for Cutting

f

For cutting with bonded abrasives, always use the pro-

tection guard for cutting 13.

f

Provide for sufficient dust extraction when cutting

stone.

The protection guard for cutting

13

 is mounted in the same

manner as the protection guard for grinding

11

.

Cutting Guide with Dust Extraction Protection Guard

The cutting guide with dust extraction protection guard

20

 is

mounted in the same manner as the protection guard for

grinding

11

.

Extraction Hood for Sanding

The extraction hood

6

 can be used for low-dust sanding of

paint, varnish and plastics in conjunction with the carbide

grinding head

8

 or the rubber sanding plate

16

 with a sanding

sheet

17

. The extraction hood

6

 is not suitable for working

metals.
A suitable Bosch vacuum cleaner can be connected to the ex-

traction hood

6

.

The extraction hood

6

 is mounted in the same manner as the

protection guard

11

. The brush collar is exchangeable.

Auxiliary Handle

f

Operate your machine only with the auxiliary handle 4.

Screw the auxiliary handle

4

 on the right or left of the machine

head depending on the working method.

Hand Guard

f

For operations with the rubber sanding plate 16 or with

the cup brush/wheel brush/flap disc, always mount the

hand guard 15.

The hand guard

15

 is fastened with the auxiliary handle

4

.

Thread of grinder spindle

M 14

M 14

M 14

M 14

Thread length (max.) of grinder spindle

mm

22

22

22

22

Reduced starting current

–

–

z

z

Constant electronic control

–

–

z

z

Weight according to EPTA-Procedure

01/2003

kg

2.1

2.1

2.0

2.2

Protection class

/

II

/

II

/

II

/

II

Angle Grinder

GWS 1000

GWS 1000

GWS 1100

GWS 1400

The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.

Dr. Egbert Schneider

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9
