tensIon adjustment of the door sprIng

Thedoorspringsaresetatthefactorytothe

propertensionfortheouterdoor.Ifaesthetic

wooden panel are installed, you will have

toadjustthedoorspringtension.Rotatethe

adjustingscrewtodrivetheadjustortostrain

orrelaxthesteelcable(seeigure5).

Doorspringtensioniscorrectwhenthedoor

remains horizontal in the fully opened posi

-

tion, yet rises to a close with the slight lift of

ainger.

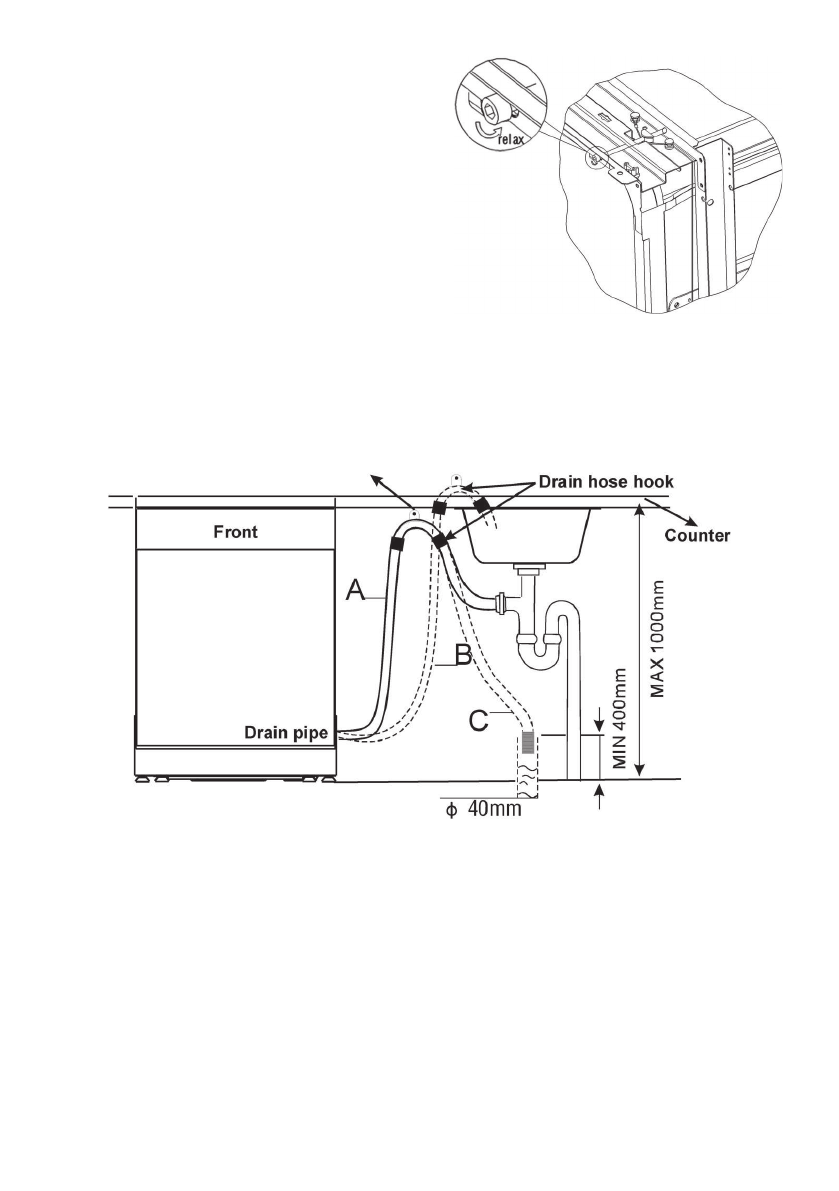

connectIon of draIn hoses

Insertthedrainhoseintoadrainpipewitha

minimumdiameterof4cm,orletitrunintothesink,makingsuretoavoidbending

orcrimpingit.Usethespecialplasticsupportthatcomeswiththeappliance(igure

6). The free and of the hose must be at a height between 400 and 1000 mm and

mustnotbeimmersedinwatertoavoidthebacklowofit.ATTENTION:Thespecial

plastichosesupportmustbesolidlyfastenedtothewalltopreventthedrainhose

frommovingandallowingwatertospilloutsidethedrain.

dIshWasher InstallatIon steps

1. Install the furniture door to the outer door of the dishwasher using the brackets

provided.Refertothetemplateforpositioningofthebrackets.

2. AdjustthetensionofthedoorspringsbyusinganAllenkeyturninginaclockwise

motion to tighten the left and right door springs. Failure to do this could cause

damagetoyourdishwasher(Illustration2).

3. Connecttheinlethosetothecoldwatersupply.

4. Connectthedrainhose.Refertodiagram.(Figure6)

5. Connectthepowercord.

6. Putthedishwashertosliderails(lIIustration4).

7. Afixthecondensationstripundertheworksurfaceofcabinet.Pleaseensurethe

condensationstripislushwithedgeofworksurface.

8. Placethedishwasherintoposition.

9. Level the dishwasher. The rear feet can be adjusted from the front of the dish

-

Figure5

Figure6
