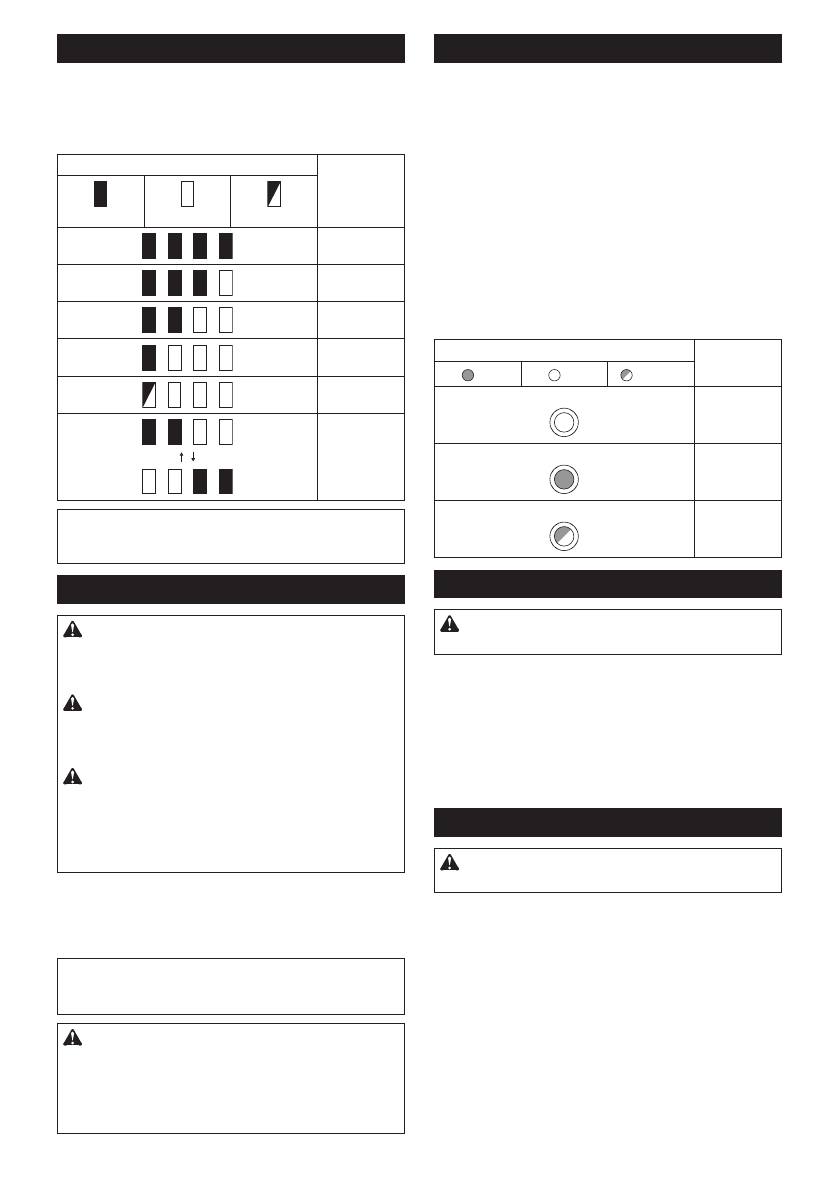

15 ENGLISH

Indicating the remaining battery capacity

Only for battery cartridges with the indicator

►

Fig.9:

1.

 Indicator lamps

2.

 Check button

Press the check button on the battery cartridge to indicate the remain

-

ing battery capacity. The indicator lamps light up for a few seconds.

Indicator lamps

Remaining

capacity

Lighted

Off

Blinking

75% to 100%

50% to 75%

25% to 50%

0% to 25%

Charge the

battery.

The battery

may have

malfunctioned.

NOTE:

 Depending on the conditions of use and the

ambient temperature, the indication may differ slightly

from the actual capacity.

Switch action

WARNING:

Before installing the battery car-

tridge into the tool, always check to see that the

switch trigger actuates properly and returns to

the "OFF" position when released.

WARNING:

NEVER defeat the lock-off button

by taping down or some other means.

 A switch with

a negated lock-off button may result in unintentional

operation and serious personal injury.

WARNING:

NEVER use the tool if it runs when

you simply pull the switch trigger without press-

ing the lock-off button.

 A switch in need of repair

may result in unintentional operation and serious

personal injury. Return tool to a Makita service center

for proper repairs BEFORE further usage.

To prevent the switch trigger from being accidentally pulled, a lock-

off button is provided. To start the tool, depress the lock-off button

and pull the switch trigger. Release the switch trigger to stop.

►

Fig.10:

1.

 Switch trigger

2.

 Lock-off button

NOTICE:

Do not pull the switch trigger hard

without pressing in the lock-off button.

 This can

cause switch breakage.

CAUTION:

The tool starts to brake the cir-

cular saw blade rotation immediately after you

release the switch trigger. Hold the tool firmly to

respond the reaction of the brake when releasing

the switch trigger.

 Sudden reaction can drop the tool

off your hand and can cause a personal injury.

Automatic speed change function

This tool has "high speed mode" and "high torque

mode".

The tool automatically changes the operation mode

depending on the work load. When the work load is low,

the tool will run in the "high speed mode" for quicker

cutting operation. When the work load is high, the tool

will run in the "high torque mode" for powerful cutting

operation.

►

Fig.11:

1.

 Mode indicator

The mode indicator lights up in green when the tool is

running in "high torque mode".

If the tool is operated with excessive load, the mode

indicator will blink in green. The mode indicator stops

blinking and then lights up or turns off if you reduce the

load on the tool.

Mode indicator status

Operation

mode

 On

 Off

 Blinking

High speed

mode

High torque

mode

Overload

alert

Adjusting depth of cut

CAUTION:

After adjusting the depth of cut,

always tighten the lever securely.

Loosen the lever on the depth guide and move the base

up or down. At the desired depth of cut, secure the base

by tightening the lever.

For cleaner, safer cuts, set cut depth so that no more

than one blade tooth projects below workpiece. Using

proper cut depth helps to reduce potential for danger-

ous KICKBACKS which can cause personal injury.

►

Fig.12:

1.

 Lever

Bevel cutting

CAUTION:

After adjusting the bevel angle,

always tighten the clamping screws securely.

Loosen the clamping screws. Set for the desired angle

by tilting accordingly, then tighten the clamping screws

securely.

►

Fig.13:

1.

 Clamping screw

Use the stopper when you do precise 45° angle cutting.

Fully turn the stopper as illustrated depending on 0° -

45° bevel cut or 0° - 48° bevel cut.

►

Fig.14:

1.

 Stopper
