EN

16

from the plug manufacturer.

<16 A

<25 A

<20 m

ø 1,5 mm

2

14 AWG

ø 2,5 mm

2

12 AWG

20 m - 50 m ø 2,5 mm

2

12 AWG

ø 4,0 mm

2

10 AWG

>

PLUG

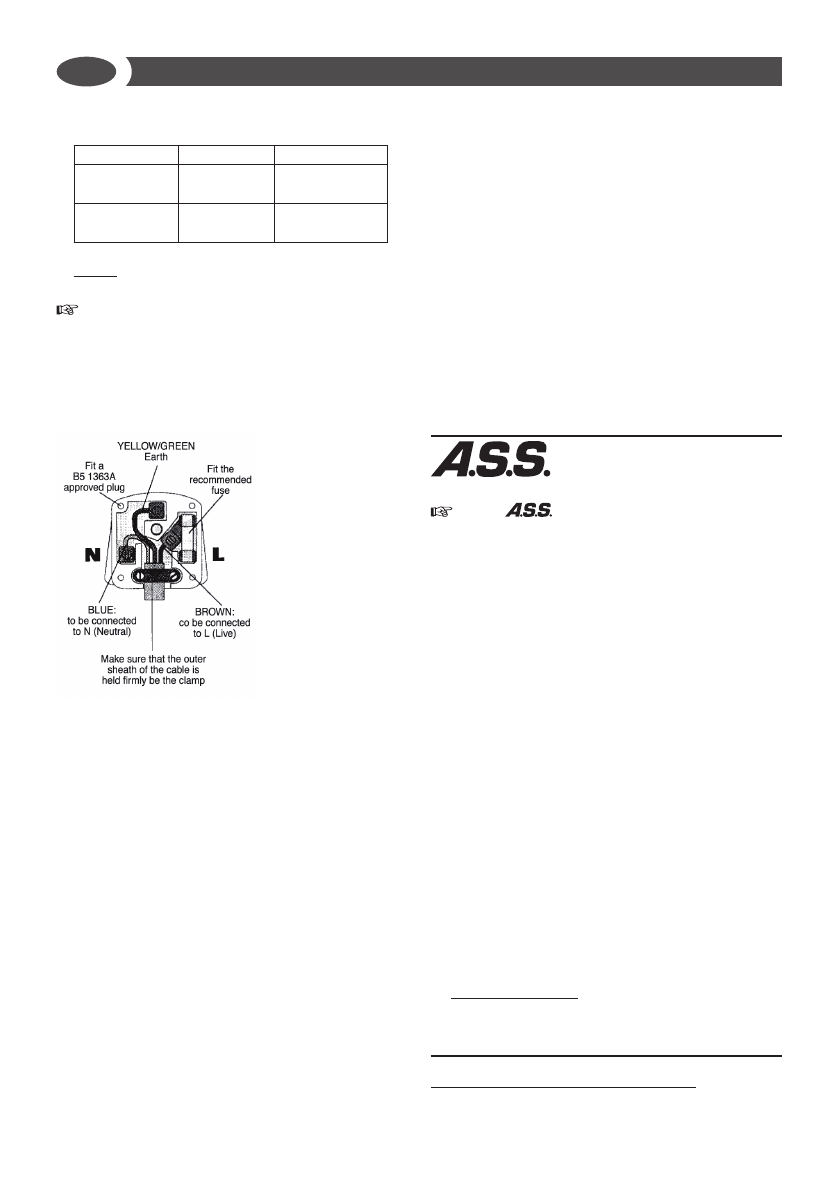

HOW TO CONNECT THE CORD TO A U.K. PLUG:

IMPORTANT The wires in the mains lead are

coloured in accordance with the following

code:

Blue

  Neutral

Brown

  Live

 Yellow/Green

Earth

Please read the in-

structions given

below before con-

necting the cord to

a plug. If in doubt

please consult a

qualified electri-

cian. As the colours

of the wires in the

mains lead of this

appliance may not

correspond with

the coloured mark-

ings identifying the

terminals in your plug, proceed as follows:

The wires that is coloured Brown must be con-

nected to the terminal which is marked with

the letter L or coloured Red. The wire that is

coloured Blue must be connected to the ter-

minal which is marked with the letter N or col-

oured Black.

Safety points for rewireable or moulded plug:

The mains lead of this appliance may be already

fitted with a BS1363 13A plug.

-  If your socket outlet is not suitable for the plug,

then the plug must be removed (cut off if it is a

moulded on plug), the flexible cord insulation

should be stripped back as appropriate and a

suitable 3 pin plug fitted.

•

WARNING: Dispose of a plug that has been cut

from the power supply cord, as such a plug is

hazardous if inserted in a live 13A socket outlet

elsewhere in the house.

 -  Should the fuse need to be replaced an ASTA

marked fuse, approved to BS1362, of the same

rating must be used.

 - Always replace the fuse cover after fitting a

fuse. The plug must NOT be used if the cover is

omitted or lost until a replacement is obtained.

 -  Make certain that only the correct fuse cover is

used and fitted.

- For plugs with detachable fuse cover the

replacement must be the same as the colour

insert in the base of the plug, or as directed by

the embossed wording on the base of the plug.

-

 If the detachable fuse cover is lost a

replacement may be purchased from a Service

Centre.

 ( if fitted)

 NOTE:

  (Automatic Stop System), which

stops the machine during the bypass phase. To

start the water cleaner, it is therefore necessary

to set the switch on position (I)“ON”; after that

press the pistol trigger: the Automatic Stop

System will start the machine and will stop it

automatically when the trigger is released. It

is advisable to put on the safety of the pistol

trigger whenever the machine is stopped, in

order to avoid unintentional starting.

·  Any automatic start of the machine without

pressing the gun trigger is attributable to

air bubbles in the water or other similar

phenomena which do not imply the existence

of any defects in the machine.

·  Do not leave the appliance unattended during

the standby for more than 5 minutes. Contrarily,

for the safety of the appliance it is necessary to

re-turn the switch into the (0) OFF position.

·  Please check that the coupling of the high

pressure hose with the appliance and the

gun supplied as standard equipment made

correctly, that is to say without any water leak.

>

SWITCHING OFF

   See fig.

C

CARE AND MAINTENANCE

   See fig.

I
