5.1 HIGH PRESSURE CONNECTION

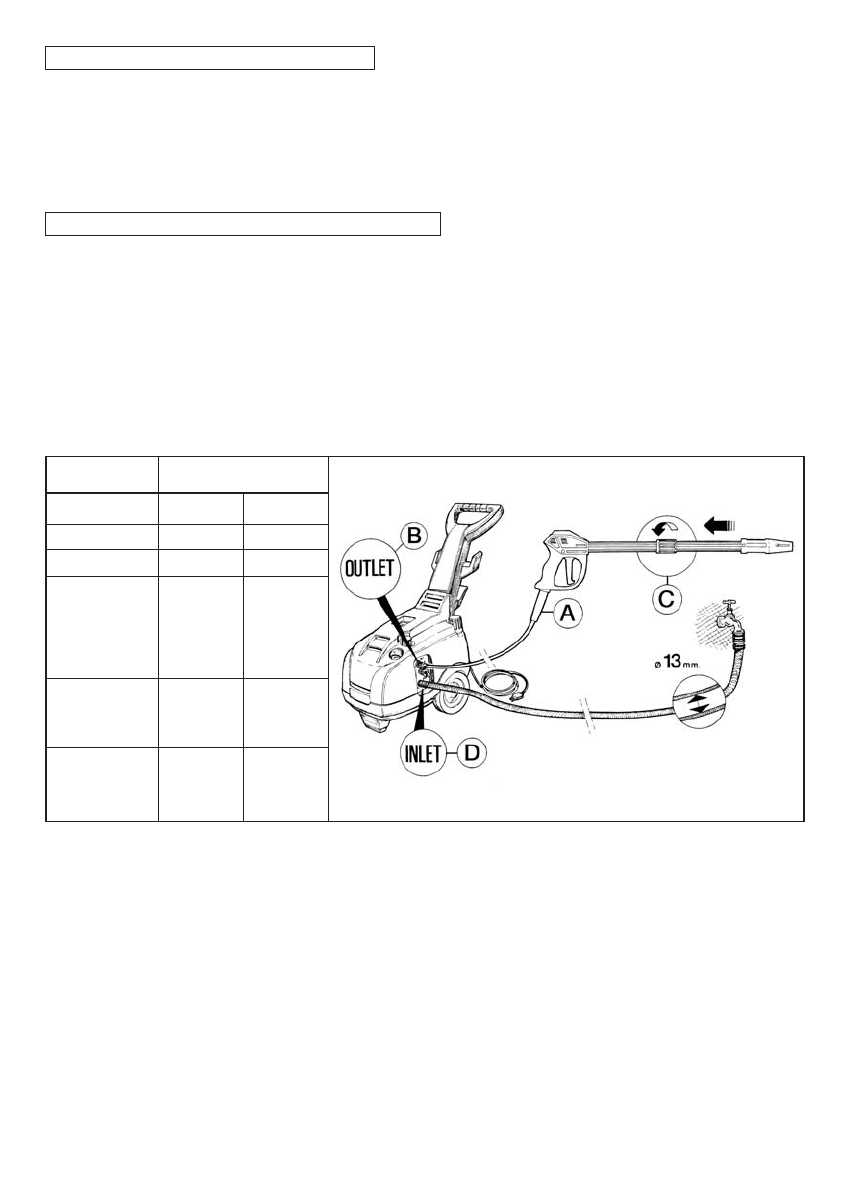

1 - Connect one end of the high pressure hose to the automatic gun (A) and the other end to
the OUTLET connection on the machine. Tighten firmly (B).

2 - Complete the assembly by coupling the extension to the gun/lance and tighten firmly (C).

5.2 - CONNECTION TO THE WATER SUPPLY

1- The maximum temperature of the inlet water must not exceed 60°C (140°F).
2- Connect the water supply to the INLET (D) port by means of a reinforced hose (min.15
bar/1,5 MPa/200 psi) with the internal diameter not less than 13mm (1/2”)
3- Since the water flow decreases according to the length of the hose, make sure that the quan-
tity of water supplied to the machine is not less than the quantities indicated in the chart below.
4- The pressure of the inlet water must not exceed 10 bar, 1 MPa, 145 psi.

ATTENTION: The water supply which enters into the washer is not drinkable.

IMPORTANT

The water supplied to the machine must be clean. Running the unit without water, or with water
which is dirty, contains grit or corrosive liquids, causes serious damage to the machine.

If the user wishes to power the washer by means of free suction, simply emerge the end of the
supply tube in the water to be suctioned. The maximum suction depth considered as the dis-
tance in height between the water surface and the pump varies between 1 m. and 3 m. (see
technical specifications table).

MODEL

L/min.

G.P.M. USA

T-TX SERIES

FLOW RATE OF

WATER SUPPLY

T 10-100
T 11-120

TX 10-130
TX 12-100
TX 12-140

TX 951

TX 14-120
TX 13-180

TX 956
TX 954

TX 15-150
TX 17-130

TX 957
TX 961

15

17

20

4

4.5

5.3

T 8-90

11

2.9

TX 955.6

13

3.4
