English

- 25 -

FIG.17

FIG.16

FIG.14

FIG.15

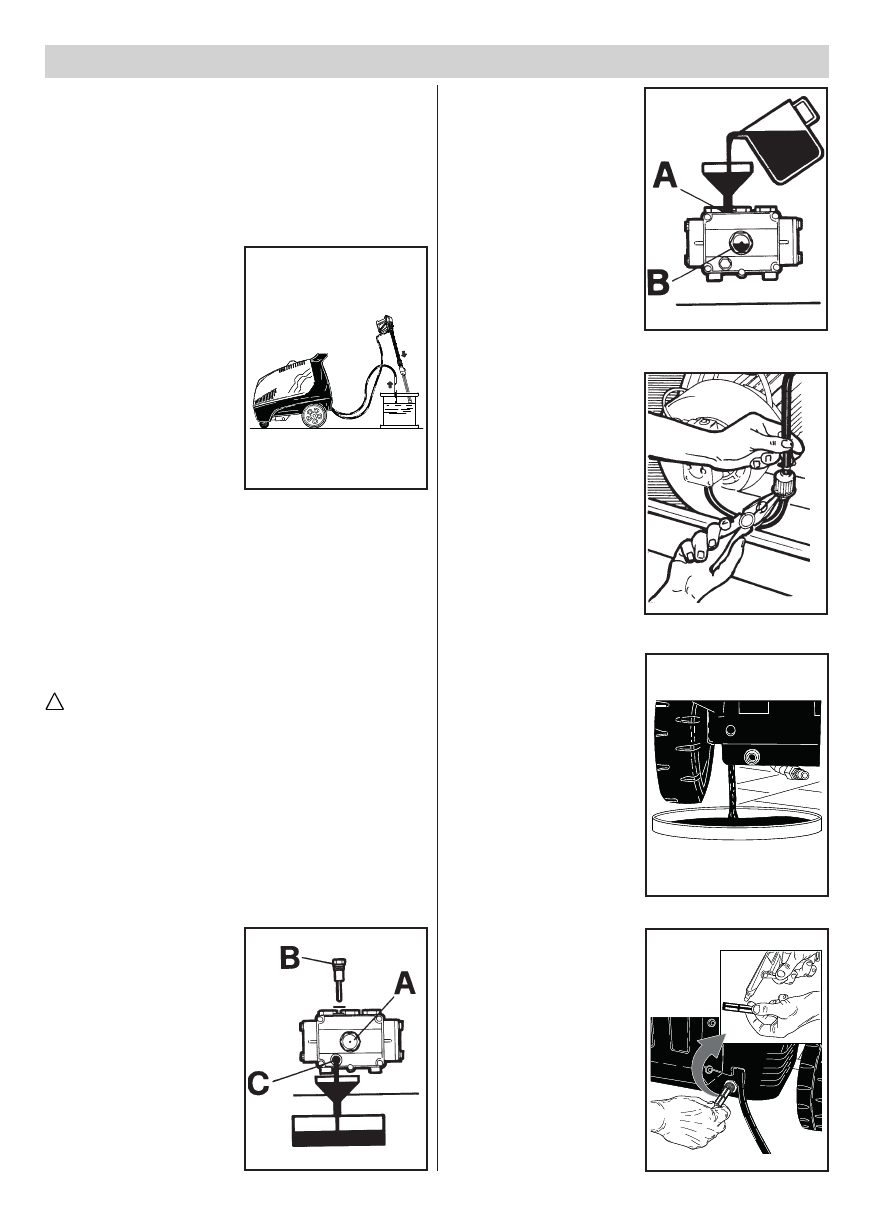

OPERATIONS FOR USING

ANTIFREEZE (fig. 13).

1

)  Turn  off  the  water  supply

(tap), disconnect the hose

and run the cleaner until it is

completely empty.

2

) Stop the water cleaner with

the ON/OFF switch in the “O”

position.

3

) Prepare a container with the

solution of antifreeze.

4

) Immerse the tube in the

container with the anti-freeze

solution.

FIG.18

Proceed as follows:

1

) Unscrew the drain cap

situated  under  the  pump  (fig.

14C).

2

) Unscrew the cap with the

dipstick (fig. 14).

3

)  Let  all  the  oil  drain  off  into

a container and deliver it to an

authorized oil collection and

disposal centre.

4

) Replace the drain screw

and pour fresh oil in through

the filling cap on top (fig.

15A) until it reaches the level

indicated on the sight glass

(fig. 15B).

For water cleaners without

oil drain bung, contact our

technical service centre for

replacement.

Use only SAE 15W 40 oil.

CLEANING THE FUEL FIL-

TER  AND TANK

.

Remove and replace the in-

line fuel filter (fig. 16).

Change it from time to time.

Empty the fuel tank.

Open the drain cap (fig. 17)  (if

available) and let any impuri-

ties drain out into a container.

Flush out the tank with clean

fuel and close the drain cap.

CLEANING THE WATER

FILTER

Clean  the  water  intake  filter

regularly and free it from any

impurities (fig. 18).

CHECKING PUMP OIL LE-

VEL AND OIL CHANGE

From time to time check the

oil level in the high pressure

pump by means of the sight

glass (fig. 14A) or the dipstick

(fig. 14B).

If the oil has a milky appearan-

ce, call the technical service

centre immediately.

Change  the  oil  after  the  first

50 hours' work and subse-

quently every 500 hours or

once a year.

!

FIG.13

PRECAUTIONS  AGAINST  FROST

The cleaner must not be exposed to frost.

If the cleaner is left in premises where it is exposed to frost,

when work is over or for storage, antifreeze must be used to

prevent serious damage to the hydraulic circuit.

5

) Start the water cleaner with the ON/OFF switch in the “I”

position.

6

) Start the cleaner and let it run until antifreeze comes out

through the lance.

7

) Suck up antifreeze with the detergent intake system too.

8

)

Disconnect the water cleaner from the mains electricity

supply via the omnipolar switch or by unplugging the plug from

the socket.

9

) For high pressure cleaners provided with water tank, the

detergent solution prepared as described in the point 3, must

be poured directly into the tank.

Warning

Anti-freeze may cause environmental pollution. Always follow

the instructions given on the pack. (Dispose of carefully.)
