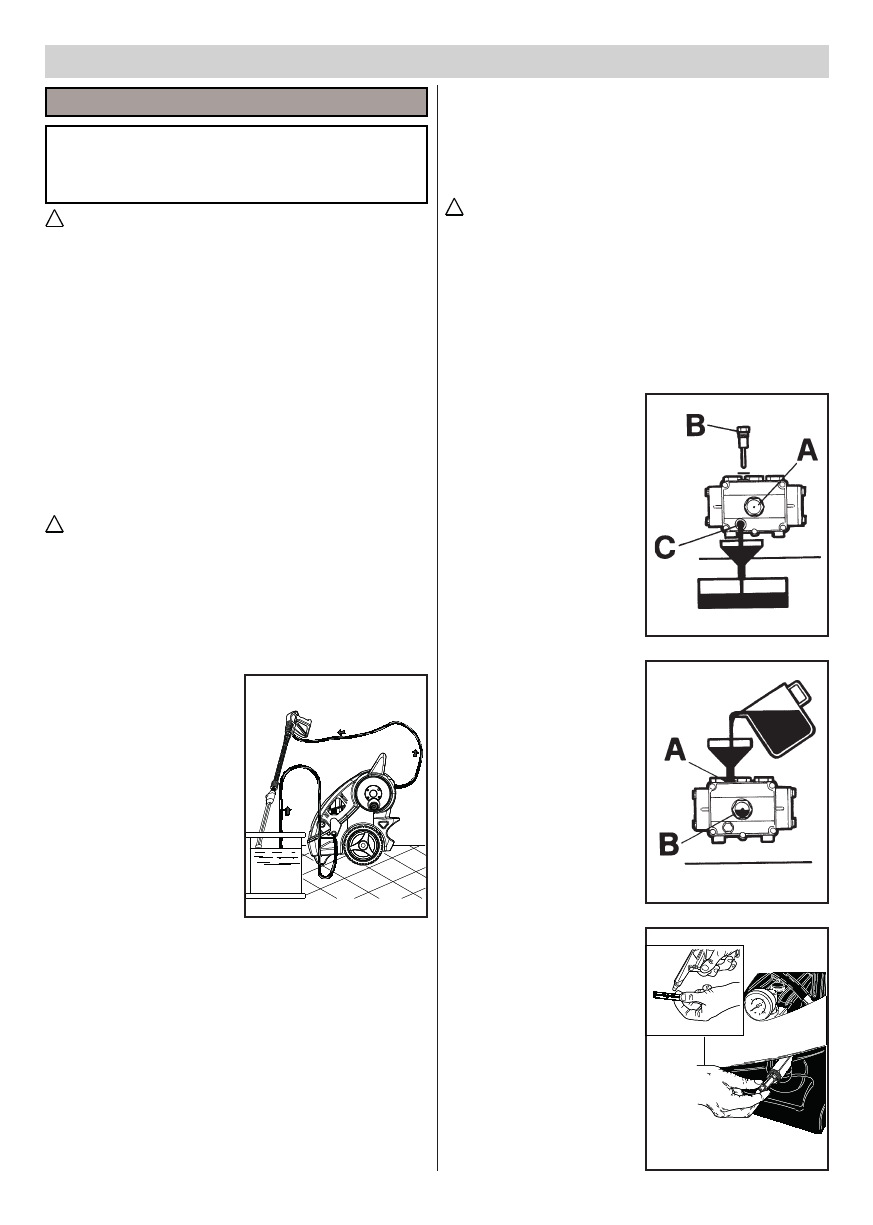

- 24 -

English

Change  the  oil  after  the  first

50 hours' work and subse-

quently every 500 hours or

once a year.

Proceed as follows:

1

) Unscrew the drain cap

situated  under  the  pump  (fig.

14 C).

2

) Unscrew the cap with the

dipstick (fig. 14).

3

)  Let  all  the  oil  drain  off  into

a container and deliver it to an

authorized oil collection and

disposal centre.

4

) Replace the drain screw

and pour fresh oil in through

the filling cap on top (fig.

15A) until it reaches the level

indicated on the sight glass

(fig. 15B).

For  water  cleaners  without

oil drain bung, contact our

technical service centre for

replacement.

Use only SAE 15 W40 oil.

CLEANING THE WATER

FILTER

Clean  the  water  intake  filter

regularly and free it from any

impurities (fig. 16).

6

)  Start the cleaner and let it run until antifreeze comes out

through the lance.

7

)  Suck up antifreeze with the detergent intake system too.

8

)  Switch  off  the  cleaner  and  disconnect  the  electric  power

by switching off the omnipolar switch,via the omnipolar switch

or by unplugging the plug from the socket.

Warning

Anti-freeze may cause environmental pollution. Always follow

the instructions given on the pack. (Dispose of carefully.)

CHECKING PUMP OIL LEVEL AND OIL CHANGE

From time to time check the oil level in the high pressure pump

by means of the sight glass (fig. 14A) or the dipstick (fig. 14B).

If the oil has a milky appearance, call the technical service

centre immediately.

MAINTENANCE

ONLY THE OPERATIONS AUTHORIZED IN THIS

INSTRUCTIONS MANUAL MAY BE CARRIED OUT BY

THE USER.

ALL OTHER OPERATIONS ARE FORBIDDEN.

Danger

Maintenance of the high pressure pump, electrical parts and all

components with a safety function must be carried out by an

authorised technical service centre only.

The manufacturer is not liable in case of tampering, changes, in-

correct  repairs or maintenance carried out  on the machine  by a

third person not provided with the manufacturer’s authorization.

All documents pertaining to the repair and planned service

interventions, as    well  as  any  certificates  concerning  the  de

-

vice installation according to the laws in force (IEC 60364-1

standard) must be kept carefully by the user, together with the

Instructions Manual.

Periodically, at least once a year, have the safety devices and

the rated values checked at one of our technical service centres.

Danger

Before performing any maintenance operations, disconnect it

from the water supply (by closing the tap) and the mains electri-

city supply (by turning off the omnipolar switch and unplugging

it from the mains socket) (see chapters on connecting to the

mains electricity and water supplies).

After completing the maintenance, before reconnecting the high

pressure washer to the mains electricity and water supplies,

storage, antifreeze must be used to prevent serious damage

to the hydraulic circuit.

OPERATIONS FOR USING ANTIFREEZE (fig. 13)

1

) Turn off the water supply (tap), disconnect the hose and run

the cleaner until it is completely empty.

2

) Stop the water cleaner with the ON/OFF switch in the “O”

position.

3

) Prepare a container with the solution of antifreeze.

4

) Immerse the tube in the container with the anti-freeze

solution.

5

) Start the water cleaner with the ON/OFF switch in the “I”

position.

make sure the panels are

replaced  correctly  and  fixed

with the screws.

Failure to do so may cause

a risk of electric shock.

PRECAUTIONS AGAINST

FROST

The cleaner must not be

exposed to frost.

If the cleaner is left in pre-

mises  where  it  is  exposed  to

frost, when work is over or for

!

!

!

FIG.13

FIG.15

FIG.14

FIG.16
