        |       About your monitor

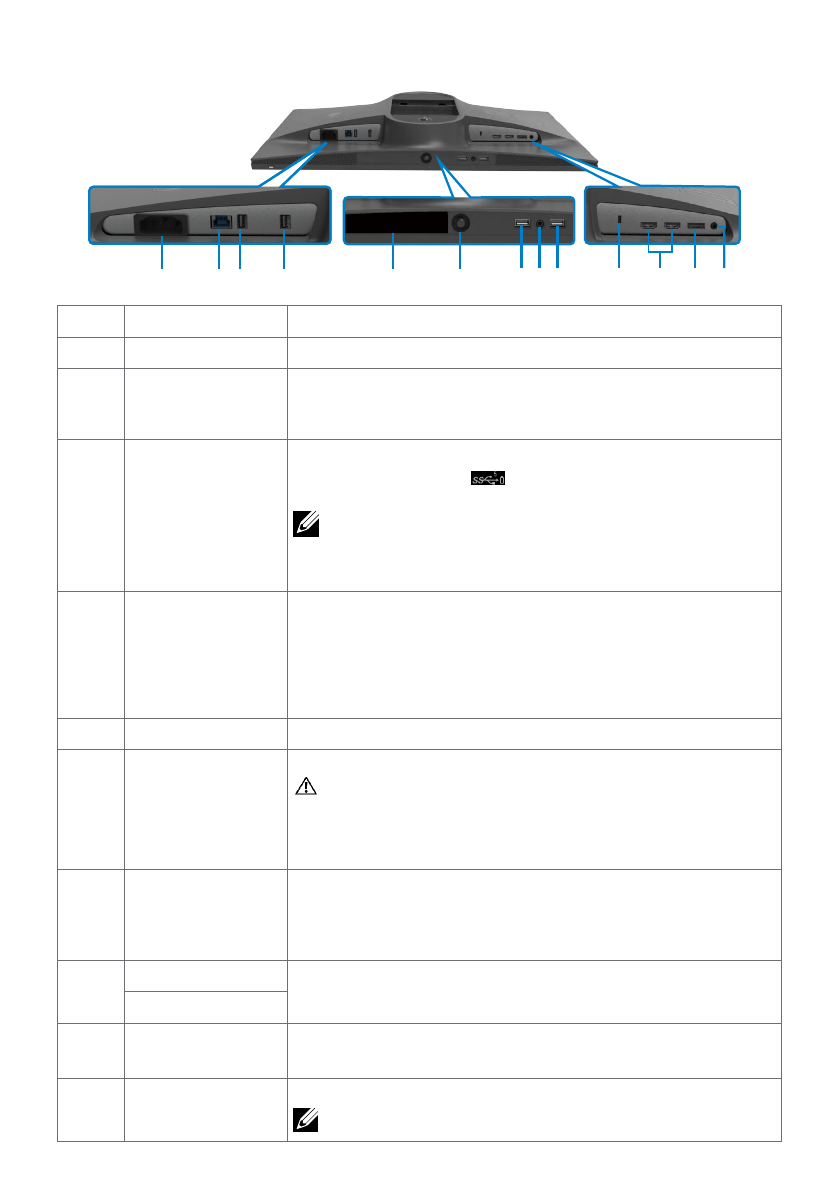

Bottom view

2 3 4

1

13

5

6

7 8 9

10 11 12

Label Description

Use

1

Power connector Connect the power cable (shipped with your monitor).

2

USB Type-B

upstream port

Connect the USB cable (shipped with your monitor) to

this port and your computer to enable the USB ports

on your monitor.

3,4,

7,9

Super speed

USB 5 Gbps

(USB 3.2

Gen1) Type-A

downstream

ports (4)

Connect your USB peripherals such as mouse and

keyboard. Port with

 battery icon supports Battery

Charging Rev. 1.2.

 NOTE: To use these ports, you must connect the

USB upstream cable (shipped with your monitor)

between the monitor and the computer.

5

Barcode, serial

number, and

Service Tag label

Refer to this label if you need to contact Dell for

technical support. The Service Tag is a unique

alphanumeric identifier that enables Dell service

technicians to identify the hardware components in

your computer and access warranty information.

6

Joystick

Use it to control the OSD menu.

8

Headphone port Connect your headphone.

 WARNING: The possible long-term effect of

listening to audio at high volume through the

headphones may cause damage to your hearing

ability.

10

Security lock slot

(based on

Kensington

Security Slot

TM

)

Secures monitor with security cable lock (sold

separately).

11

HDMI 1 port

Connect your computer with the HDMI cable.

HDMI 2 port

12

DisplayPort

Connect your computer with the DisplayPort cable

(shipped with your monitor).

13

Line-out port

Connect your speakers.

 NOTE: This port does not support headphones.
