Overview of Components

Overview of Components

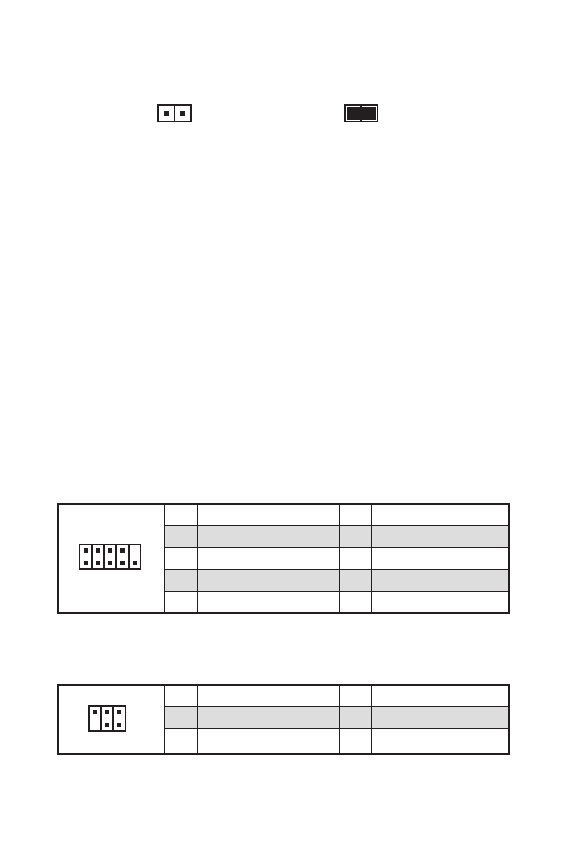

JCI1: Chassis Intrusion Connector

This connector allows you to connect the chassis intrusion switch cable.

Normal

(default)

Trigger the chassis

intrusion event

Using chassis intrusion detector

1.

Connect the

JCI1

 connector to the chassis intrusion switch/ sensor on the

chassis.

2.

Close the chassis cover.

3.

Go to

BIOS > SETTINGS > Security > Chassis Intrusion Configuration

.

4.

Set

Chassis Intrusion

 to

Enabled

.

5.

Press

F10

 to save and exit and then press the

Enter

 key to select

Yes

.

6.

Once the chassis cover is opened again, a warning message will be displayed on

screen when the computer is turned on.

Resetting the chassis intrusion warning

1.

Go to

BIOS > SETTINGS > Security > Chassis Intrusion Configuration

.

2.

Set

Chassis Intrusion

 to

Reset

.

3.

Press

F10

to save and exit and then press the

Enter

 key to select

Yes

.

JCOM1: Serial Port Connector

This connector allows you to connect the optional serial port with bracket.

JDASH1: Tuning controller Connector

This connector is used to connect an optional Tuning Controller module.

1

2

10

9

1

DCD

2

SIN

3

SOUT

4

DTR

5

Ground

6

DSR

7

RTS

8

CTS

9

RI

10

No Pin

1

2

6

5

1

No pin

2

NC

3

MCU_SMB_SCL_M

4

MCU_SMB_SDA_M

5

VCC5

6

Ground
