Overview of Components

⚠

Important

∙

Always insert memory modules in the

DIMMA2

 slot first.

∙

To ensure system stability for Dual channel mode, memory modules must be of the

same type, number and density.

∙

Some memory modules may operate at a lower frequency than the marked value

when overclocking due to the memory frequency operates dependent on its Serial

Presence Detect (SPD). Go to BIOS and find the DRAM Frequency to set the memory

frequency if you want to operate the memory at the marked or at a higher frequency.

∙

It is recommended to use a more efficient memory cooling system for full DIMMs

installation or overclocking.

∙

The stability and compatibility of installed memory module depend on installed

CPU and devices when overclocking.

∙

Please refer www.msi.com for more information on compatible memory.

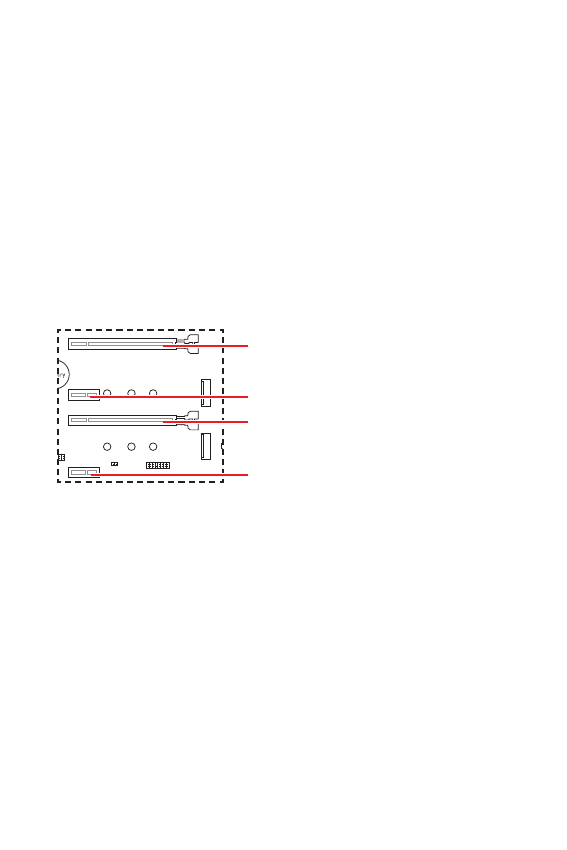

PCI_E1~4: PCIe Expansion Slots

⚠

Important

∙

When adding or removing expansion cards, always turn off the power supply and

unplug the power supply power cable from the power outlet. Read the expansion

card’s documentation to check for any necessary additional hardware or software

changes.

∙

If you install a large and heavy graphics card, you need to use a tool such as

MSI

Gaming Series Graphics Card Bolster

 to support its weight to prevent deformation

of the slot.

∙

For a single PCIe x16 expansion card installation with optimum performance, using

the

PCI_E1

 slot is recommended.

PCI_E1

:  PCIe 4.0/ 3.0 x16 (From CPU)

PCI_E3

: PCIe 3.0 x4 (From Z590 chipset)

PCI_E4

: PCIe 3.0 x1 (From Z590 chipset)

PCI_E2

: PCIe 3.0 x1 (From Z590 chipset)
