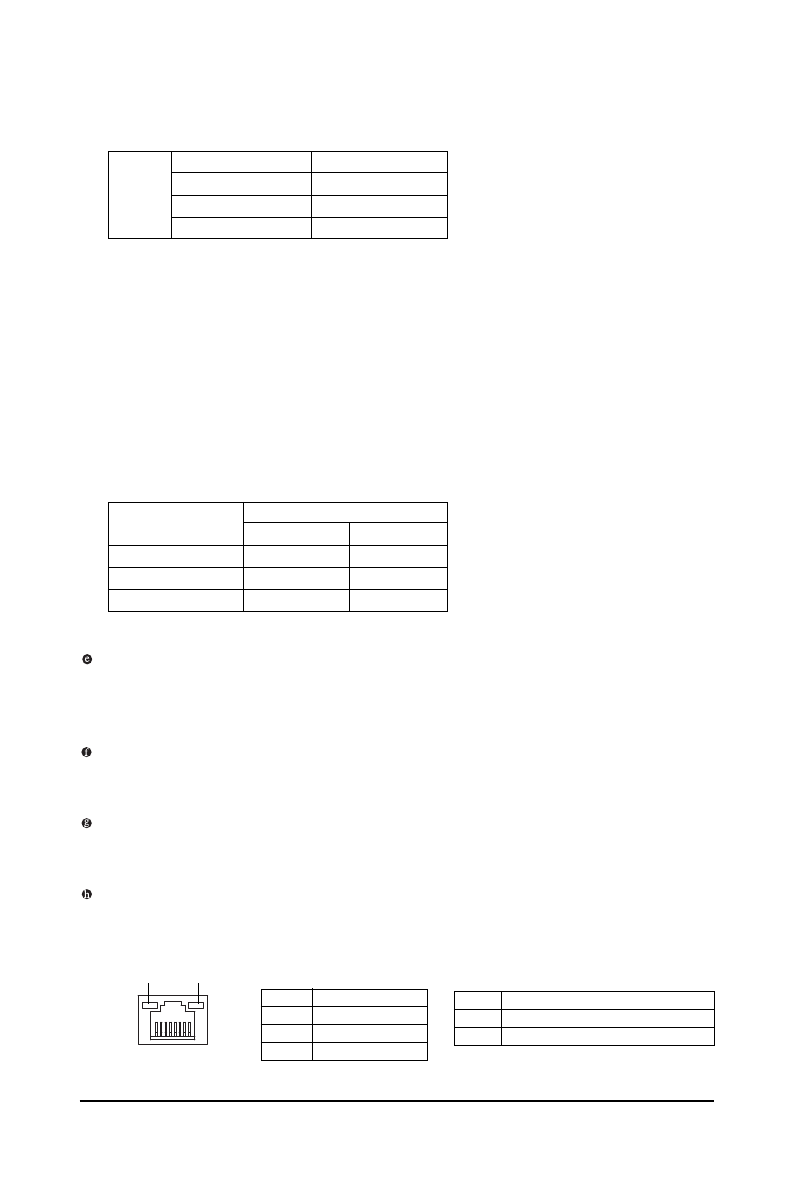

GA-MA790GP-UD3H Motherboard
- 22 -
Optical S/PDIF Out Connector
This connector provides digital audio out to an external audio system that supports digital optical
audio. Before using this feature, ensure that your audio system provides an optical digital audio in
connector.
IEEE 1394a Port
The IEEE 1394 port supports the IEEE 1394a specification, featuring high speed, high bandwidth
and hotplug capabilities. Use this port for an IEEE 1394a device.
USB Port
The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as a USB
keyboard/mouse, USB printer, USB flash drive and etc.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
Activity LED
Connection/
Speed LED
LAN Port
Activity LED:
State
Description
Blinking
Data transmission or receiving is occurring
Off
No data transmission or receiving is occurring
Connection/Speed LED:
State
Description
Orange
1 Gbps data rate
Green
100 Mbps data rate
Off
10 Mbps data rate
A. Dual Display Configurations:
This motherboard provides three ports for video output: DVI-D, HDMI and D-Sub. The table below
shows the supported dual display configurations.
Dual
Display
Combination
Supported or Not
DVI-D + D-Sub
Yes
DVI-D + HDMI
N o
HDMI + D-Sub
Yes
B. Playback of HD DVD and Blu-ray Discs:
In order to get better playback quality, when playing the HD DVD or Blu-ray discs, refer to the
recommended system requirements (or better) below.
•
CPU: AMD Athlon
TM
64 X2 Dual-Core processor (4200+ or above)
•
Memory: Two 1 GB DDR2 800 memory modules with dual channel mode enabled
•
BIOS Setup: At least 256 MB of UMA Frame Buffer Size (refer to Chapter 2, "BIOS Setup,"
"Advanced BIOS Features," for more information)
•
Playback software: CyberLink PowerDVD 8.0 or later (Note: Please ensure Hardware
Acceleration is enabled )
File Format
Suitable Resolution
Windows XP
Windows Vista
Non-protected contents
1920 x 1080p
1920 x 1080p
HD-DVD
1920 x 1080p
1920 x 1080p
Blu-ray
1920 x 1080p
1920 x 1080p
