GA-8VM800PMD-775 Motherboard
- 12 -
English
1-3
Installation of the CPU and Heatsink
Before installing the CPU, please comply with the following conditions:
1. Please make sure that the motherboard supports the CPU.
2 . Please take note of the one indented corner of the CPU. If you install the CPU
in the wrong direction, the CPU will not insert properly. If this occurs, please change
the insert direction of the CPU.
3 . Please add an even layer of heat sink paste between the CPU and heatsink.
4. Please make sure the heatsink is installed on the CPU prior to system use, otherwise
overheating and permanent damage of the CPU may occur.
5. Please set the CPU host frequency in accordance with the processor specifications. It is not
recommended that the system bus frequency be set beyond hardware specifications since it
does not meet the required standards for the peripherals. If you wish to set the frequency
beyond the proper specifications, please do so according to your hardware specifications
including the CPU, graphics card, memory, hard drive, etc.
HT functionality requirement content :
Enabling the functionality of Hyper-Threading Technology for your computer system requires all
of the following platform components:
- CPU: An Intel
®
Pentium
®
4 Processor with HT Technology
- Chipset: A VIA Chipset that supports HT Technology
- BIOS: A BIOS that supports HT Technology and has it enabled
- OS: An operation system that has optimizations for HT Technology

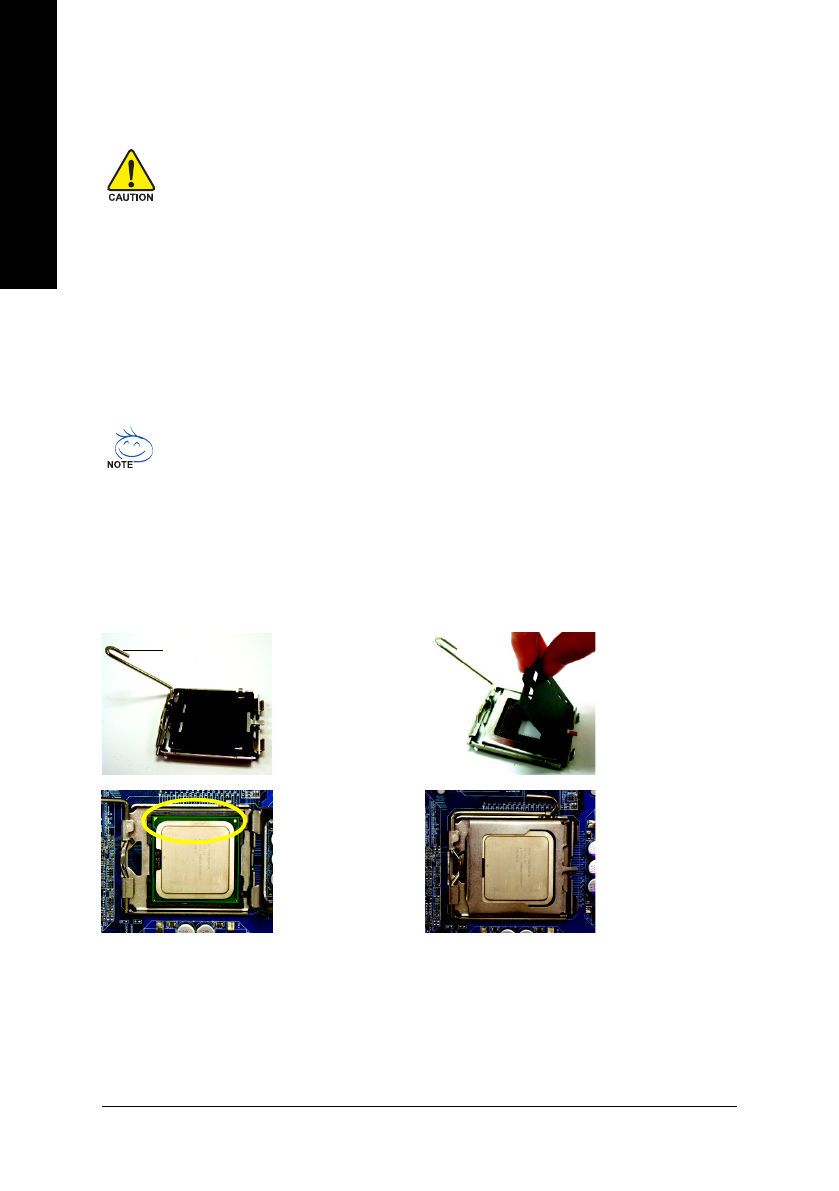

1-3-1 Installation of the CPU
Fig. 1
Gently lift the metal
l e v e r l o c a t e d o n t h e
CPU socket to the
upright position.
Metal Lever
Fig. 2
R e m o v e t h e p l a s t i c
covering on the CPU
socket.
Fig. 3
Notice the small gold
c o l o r e d t r i a n g l e
located on the edge of
t h e C P U s o c k e t .
A l i g n t h e i n d e n t e d
corner of the CPU with
Fig. 4
Once the CPU is prop-
erly inserted, please
replace the load plate
and push the metal le-
ver back into its origi-
nal position.
the triangle and gently insert the CPU into position.
(Grasping the CPU firmly between your thumb
and forefinger, carefully place it into the socket in a
straight and downwards motion. Avoid twisting or
bending motions that might cause damage to the
CPU during installation.)
