GA-8AENXP-DW Motherboard

- 22 -

English

1-8

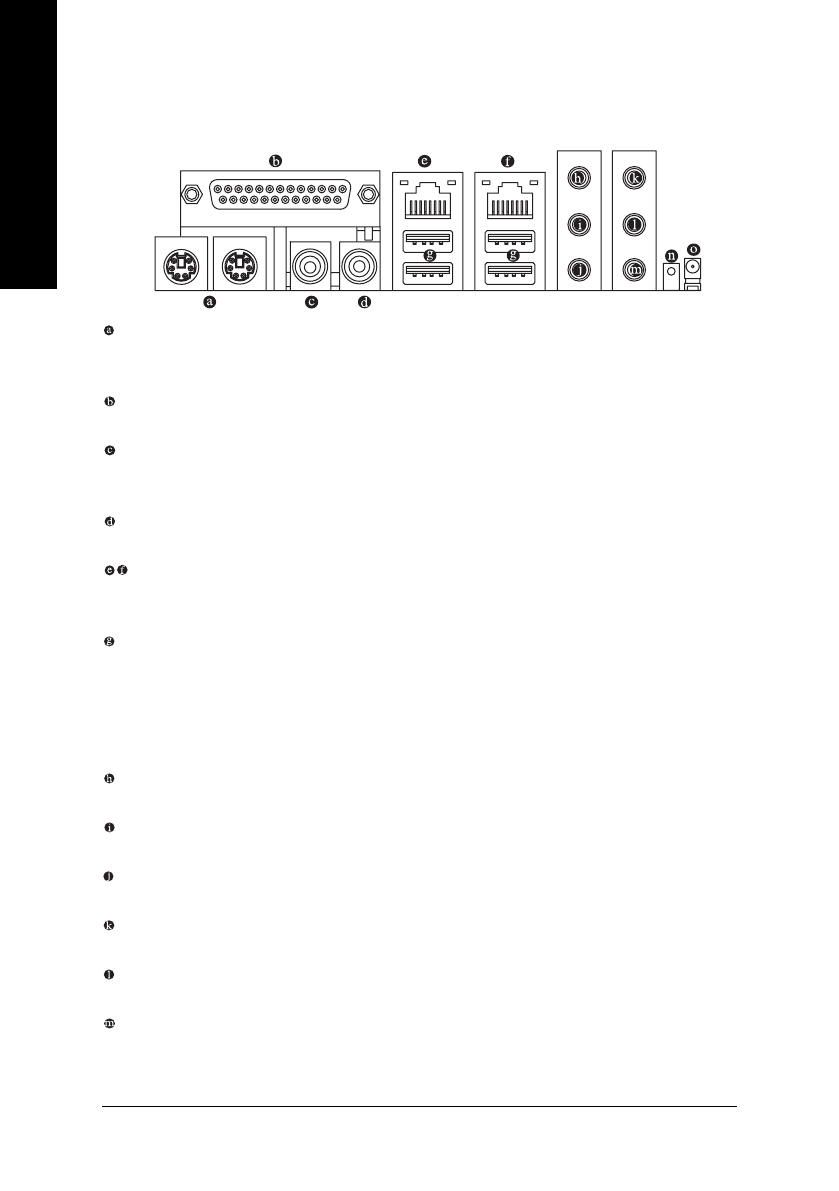

I/O Back Panel Introduction

PS/2 Keyboard and PS/2 Mouse Connector

To install a PS/2 port keyboard and mouse, plug the mouse to the left port (green) and the keyboard to
the right port (purple).

Parallel Port

The parallel port allows connection of a printer, scanner and other peripheral devices.

SPDIF_O (SPDIF Out)

The SPDIF output is capable of providing digital audio to external speakers or compressed AC3
data to an external Dolby Digital Decoder.

SPDIF_I (SPDIF In)

Use SPDIF In feature only when your device has digital output function.

LAN Port 1/LAN Port 2

The provided Internet connection is Gigabit Ethernet (PCI Express Gigabit), providing data transfer
speeds of 10/100/1000Mbps.

USB port

Before you connect your device(s) into USB connector(s), please make sure your device(s) such
as USB keyboard, mouse, scanner, zip, speaker...etc. have a standard USB interface. Also make
sure your OS supports USB controller. If your OS does not support USB controller, please contact
OS vendor for possible patch or driver upgrade. For more information please contact your OS or
device(s) vendors.

Line In

Devices like CD-ROM, walkman etc. can be connected to Line In jack.

Line Out (Front Speaker Out)

Connect the stereo speakers, earphone or front surround speakers to this connector.

MIC In

Microphone can be connected to MIC In jack.

Rear Speaker Out

Connect the rear surround speakers to this connector.

Center/Subwoofer Speaker Out

Connect the Center/Subwoofer speakers to this connector.

Side Speaker Out

Connect the side surround speakers to this connector.
