Hardware Installation
- 32 -

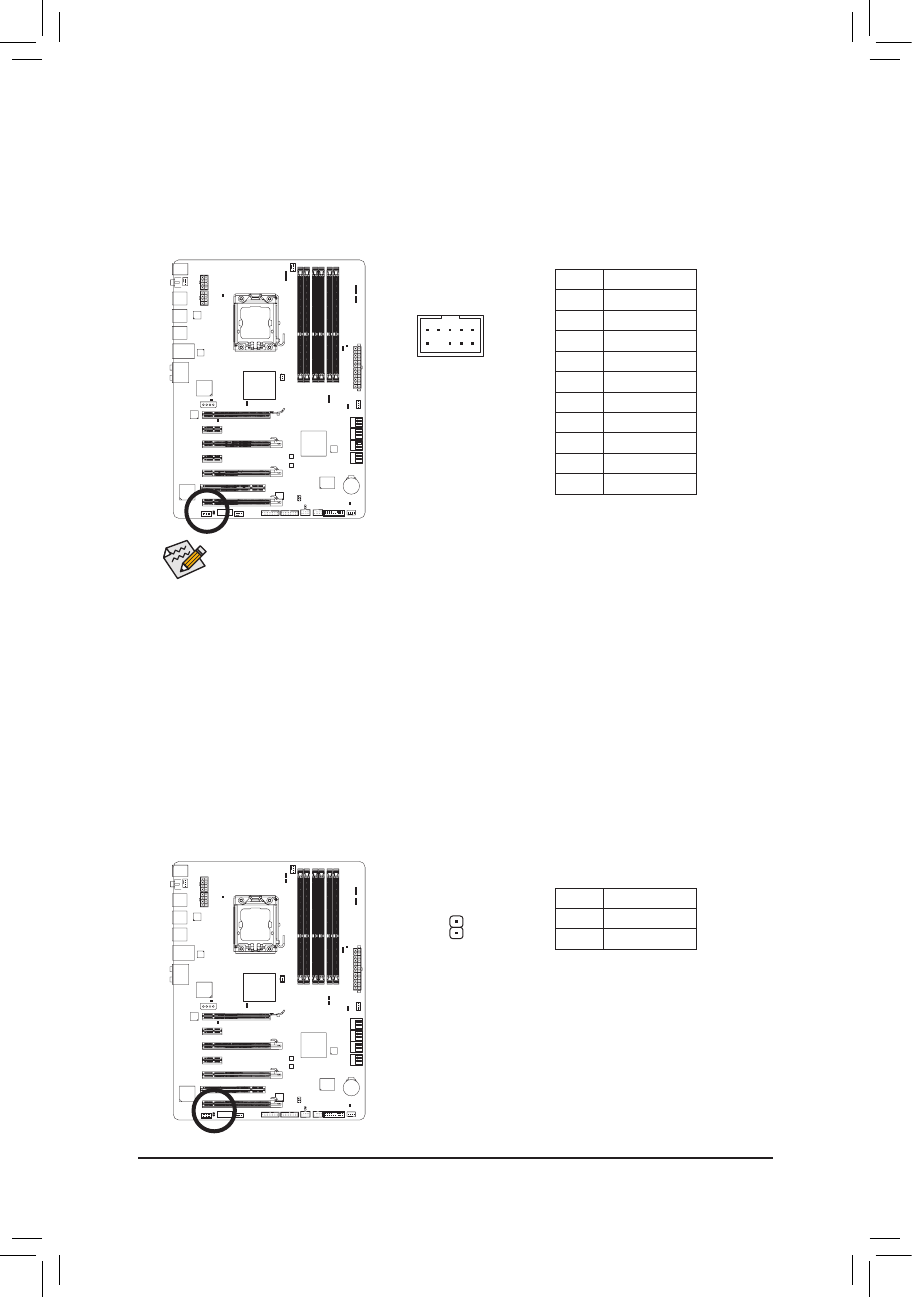

10) F_AUDIO (Front Panel Audio Header)
The front panel audio header supports Intel High Definition audio (HD). You may connect your chassis
front panel audio module to this header. Make sure the wire assignments of the module connector match
the pin assignments of the motherboard header. Incorrect connection between the module connector and
the motherboard header will make the device unable to work or even damage it.
Some chassis provide a front panel audio module that has separated connectors on each wire
instead of a single plug. For information about connecting the front panel audio module that
has different wire assignments, please contact the chassis manufacturer.
11) SPDIF_O (S/PDIF Out Header)
This header supports digital S/PDIF Out and connects a S/PDIF digital audio cable (provided by expansion
cards) for digital audio output from your motherboard to certain expansion cards like graphics cards and
sound cards. For example, some graphics cards may require you to use a S/PDIF digital audio cable for
digital audio output from your motherboard to your graphics card if you wish to connect an HDMI display
to the graphics card and have digital audio output from the HDMI display at the same time. For information
about connecting the S/PDIF digital audio cable, carefully read the manual for your expansion card.
1
Pin No.
Definition
1
MIC_L
2
GND
3
MIC_R
4
ACZ_DET
5
LINE_R
6
MIC_DET
7
GND
8
No Pin
9
LINE_R
10
LINE_DET
Pin No.
Definition
1
SPDIFO
2
GND
F_USB30
F_AUDIO(H)
9
1
10
2
