English

34

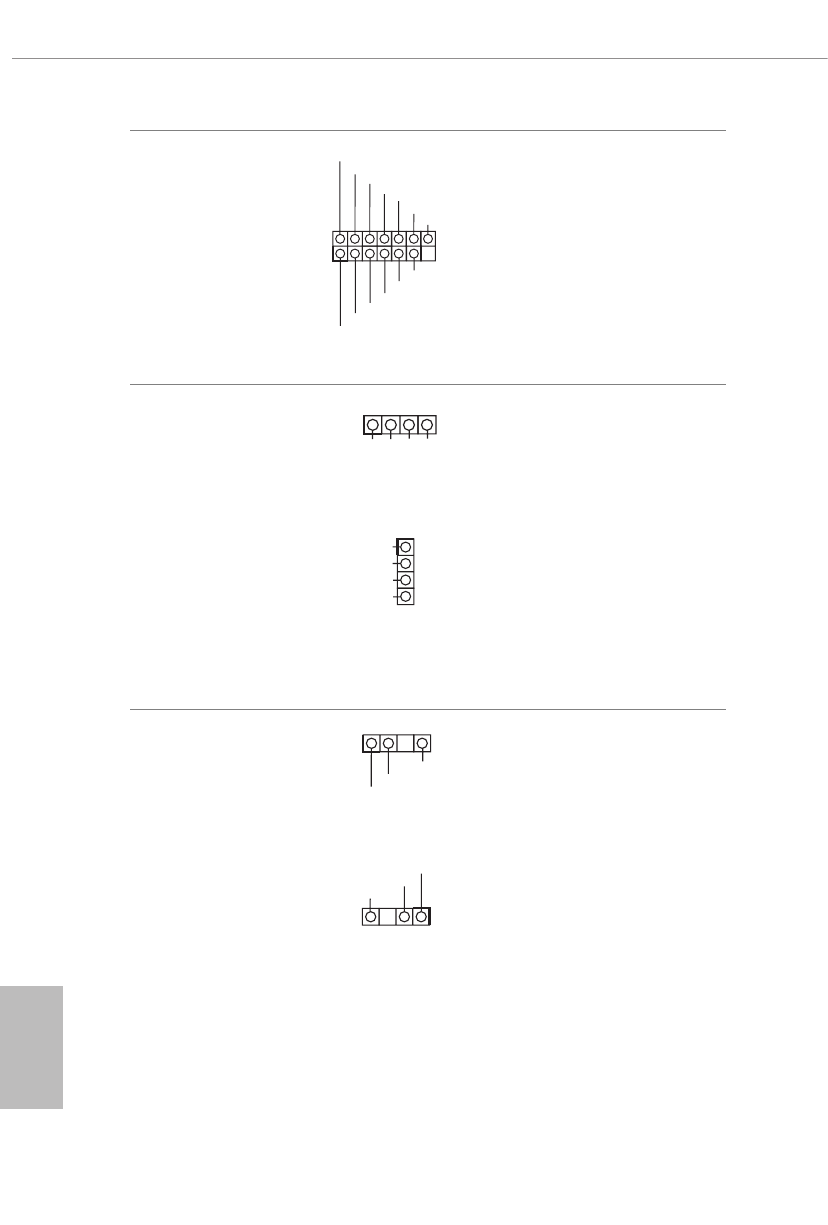

SPI TPM Header
(13-pin SPI_TPM_J1)
(see p.1,  No. 13)

This connector supports SPI
Trusted Platform Module (TPM)
system, which can securely store
keys, digital certificates, pass-
words, and data. A TPM system
also helps enhance network
security, protects digital
identities, and ensures platform
integrity.

RGB LED Headers
(4-pin RGB_LED1)
(see p.1,  No. 30)

(4-pin RGB_LED2)
(see p.1,  No. 9)

These two RGB headers are used
to connect RGB LED extension
cable which allows
users to choose from various LED
lighting effects.

Caution:

Never install the RGB

LED cable in the wrong orienta-
tion; otherwise, the cable may
be damaged.

*Please refer to page 45 for
further instructions on these two
headers.

Addressable LED Headers
(3-pin ADDR_LED1)
(see p.1, No. 29)\

(3-pin ADDR_LED2)
(see p.1, No. 8)

These two Addressable headers
are used to connect Addressable
LED extension cable which
allows users to choose from
various LED lighting effects.

Caution:

Never install the

Addressable LED cable in the
wrong orientation; otherwise,
the cable may be damaged.

*Please refer to page 46 for
further instructions on this
header.

VOUT

DO_ADDR

GND

1

+12V G R B

1

G

R

B

1

+12V

1

SPI_DQ3

+3.3V

SPI_DQ2

SPI_CS0

Dummy

CLK

SPI_MISO

SPI_MOSI

GND

SPI_TPM_CS#

RST#

RSMRST#

TPM_PIRQ

VOUT

DO_ADDR

GND

1
