Connecting video cords

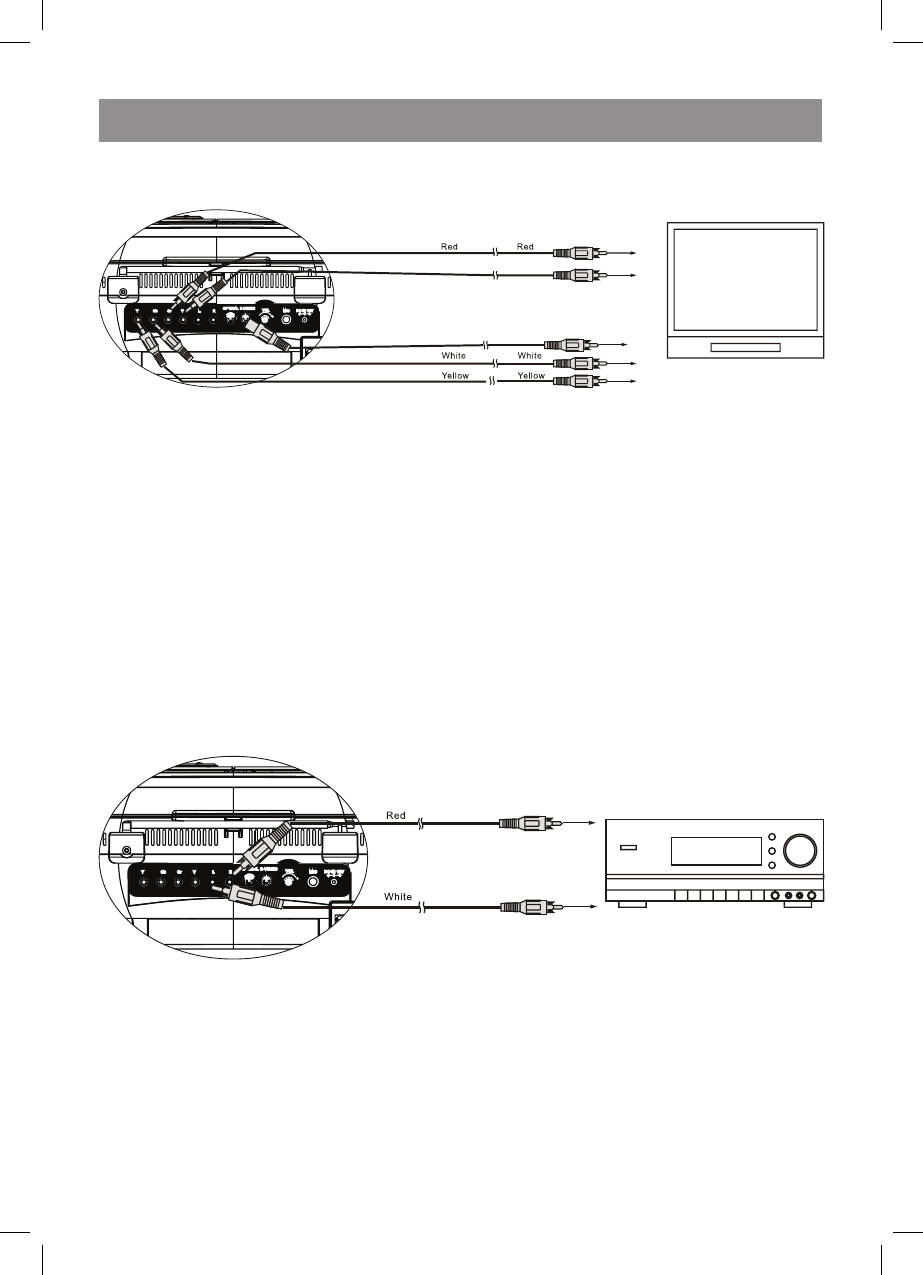

Select one of connection types listed below, which is the most appropriate for your TV-set.

() Composite video signal
To get standard picture quality connect composite video output (VIDEO) of your player with corre-
sponding input of TV-set or monitor using one audio-video cable (A/V) with yellow pins included into
delivery set.
(2) S-Video slot
To get high-quality picture connect S-VIDEO slot of your player with corresponding input of TV-set
or monitor using S-Video cable (not included into delivery set).
(3) Component video output
To get exact color rendering and highest picture quality connect component video outputs Y Cb Cr
(red/blue/green) with corresponding input slots of your TV-set or monitor using corresponding cord
(not included into delivery set).

Notes:
•     You can get good picture only when connection is proper and system settings are correct.

Audio system connection
Select one of connection types listed below, which is the most appropriate for your audio system.

() Two-channel analog audio output
If you want using two channel analog audio output, connect RCH and LCH slots of your player with
corresponding slots of power amplifier (left channel should be connected with white slot, and right
channel should be connected with red slot).
(2) Coaxial digital audio output
Use special coaxial cable (not included into delivery set) to connect COAX slot of your player with
corresponding slot of power amplifier.
 (3) Optical digital audio output
Use special optical fiber cable (not included into delivery set) to connect OPTICAL slot of your player
with corresponding slot of power amplifier.
