E

N

G

L

I

S

H

10

CQ-R223W

21

E

N

G

L

I

S

H

9

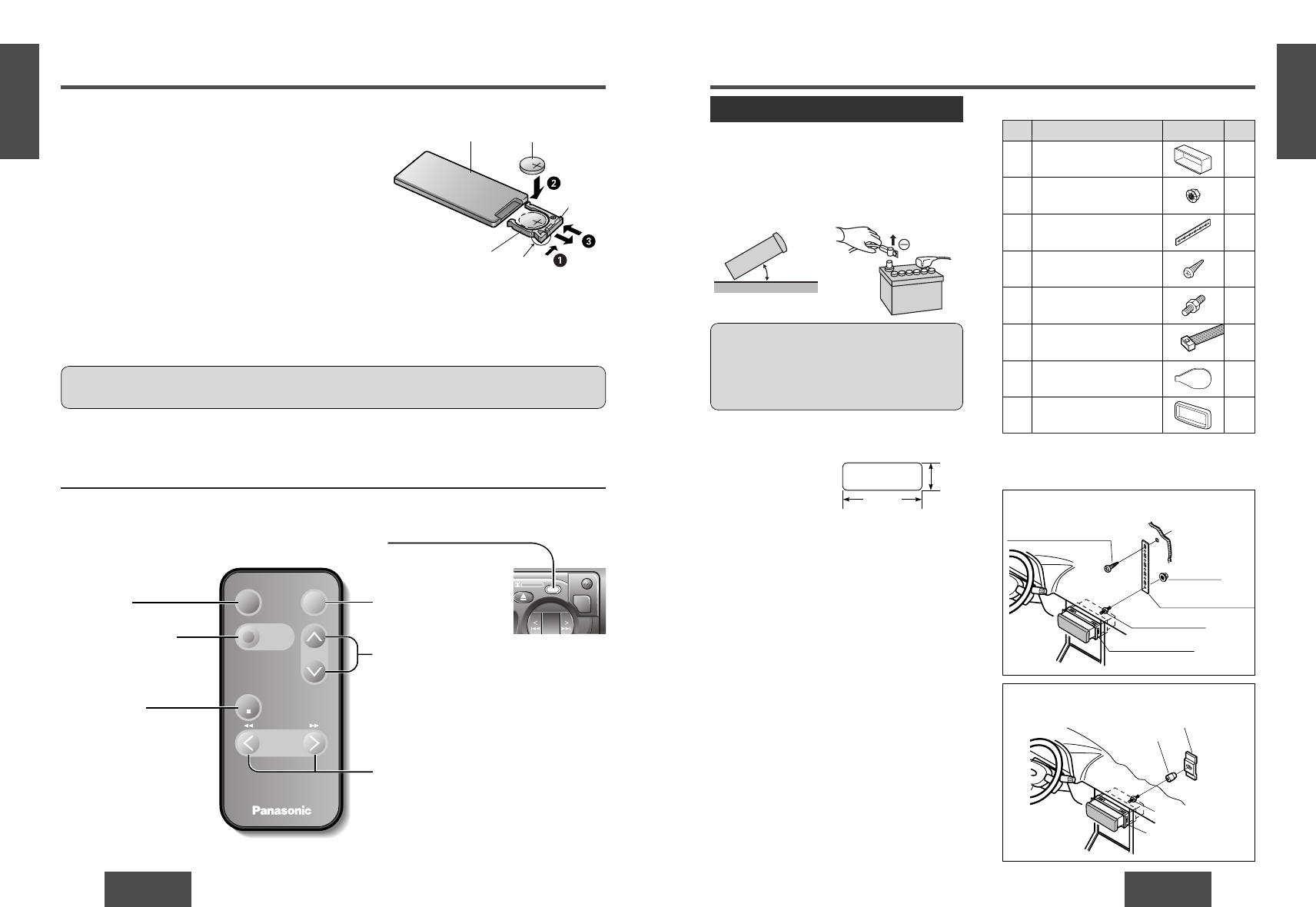

Remote Control

CQ-R223W

20

M

O

D

E

DOLBY B NR

TRACK

TUNE

REMOTE

Battery Installation

Remove the battery holder.

Press and hook A of the battery holder and then pull it out.

Install the battery on the battery holder.

Set a new battery properly with its “+” side facing up as shown
in the figure.

Insert the battery holder.

Push the battery holder back into its original position.

Battery Notes

Remove and dispose of an old battery immediately.
Battery Information:
• Battery type: Panasonic lithium battery (CR2025) (included)
• Battery life: Approximately 6 months with normal use (at room temperature)

(Back side)

Battery holder

Lithium battery
(included)

Position A

Position B

Caution:  Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire.
Battery leakage may damage the unit.

PWR

MODE

PRG

TUNE

TRACK

Car Audio

BAND/DISC UP

VOL

MUTE

(ATT)

[PWR] (power)

[MODE] (Mode (source))
(

➡

page 14, 18)

• Do not disassemble or short the battery. Do not throw a battery into a fire.
• Keep batteries away from children to avoid the risk of accidents.
• Be careful to observe proper local disposal rules when you dispose of batteries.

Control Reference Guide

Buttons of the remote control function in the same way as the controls on the main unit of the reference page.
Point the remote control unit at the main unit’s sensor (REMOTE).

[MUTE] (Mute)
(

➡

page 12)

[VOL] [

}

] [

{

] (Volume)

(Volume Up/down)
(

➡

page 12)

[TUNE][TRACK] [

a

] [

] [

]

] [

[

]

(Tune/track, selection/search/Fast forward/Fast
reverse)
(

➡

page 14, 18)

Installation

Installation Hardware

• Before installation, check the radio operation with

antenna and speakers.

• Disconnect the cable from the negative (–) battery

terminal (see caution below).

• Unit should be installed in a horizontal position with

the front end up at a convenient angle, but not more
than 30°.

Dashboard Installation

Installation Opening
The unit can be installed
in any dashboard having
an opening as shown at
r i g h t .     T h e   d a s h b o a r d
should be 4.5 mm - 6 mm thick in order to be able to
support the unit.

Installation Precautions
This product should be installed by a professional
installer, if possible.
In case of difficulty, please consult your nearest
authorized Panasonic Service Center.
1. This system is to be used only in a 12-volt, DC

battery system (car) with negative ground.

2. Follow the electrical connections carefully (

a

page

25).  Failure to do so may result in damage to the
unit.

3. C o n n e c t   t h e   p o w e r   l e a d   ( r e d )   a f t e r   a l l   o t h e r

connections are made.

4. Be sure to connect the battery lead (yellow) to the

positive terminal (+) of the battery or fuse block
(BAT) terminal.

5. Insulate all exposed wires to prevent short circuiting.
6. Secure all loose wires after installing the unit.
7. Please carefully read the operating and installation

instructions of the respective equipment before
connecting it to this unit.

Preparation

30˚ or less

Caution: Do not disconnect the battery terminals of
a car with trip or navigational computer since all
u s e r   s e t t i n g s   s t o r e d   i n   m e m o r y   w i l l   b e   l o s t .
Instead take extra care with installing the unit to
prevent shorts.

182 mm

53 mm

Fire Wall of Car

w

 Hex. Nut

e

 Rear Support Strap

t

 Mounting Bolt

q

 Mounting Collar

r

 Tapping Screw

(a) Using the Rear Support Strap

Rubber Cushion
(Option)

t

 Mounting Bolt

q

 Mounting Collar

Rear Support Bracket
(Provided on the car)

(b) Using the Rubber Cushion (option)

[BAND] [DISC UP]

(Band/Disc change/play
side change)
(

➡

page 14, 18)

No.

Item

Diagram

Q’ty

q

1

1

1

1

1

1

2

1

Mounting Collar

Hex. Nut (5 mmø)

Rear Support Strap

Tapping Screw
(5 mmø

×

16 mm)

Mounting Bolt (5 mmø)

Power Connector

Dismounting Plate

Trim Plate

w

e

r

t

y

u

i
