Operation

Operation

Passive TV antenna for inside mounting for
multimedia DVD receiver H-CMD2000

A

B

B

B

B

B

B

Rear glass

3.5 mm

Installation

It is recommended that the antenna should be mounted by professionals.
The antenna should be mounted on the rear window of the vehicle. Optimal mounting distance

between the brim of the window and the antenna is 5 cm. Before mounting, find a place inside the
vehicle ensuring good signal reception.

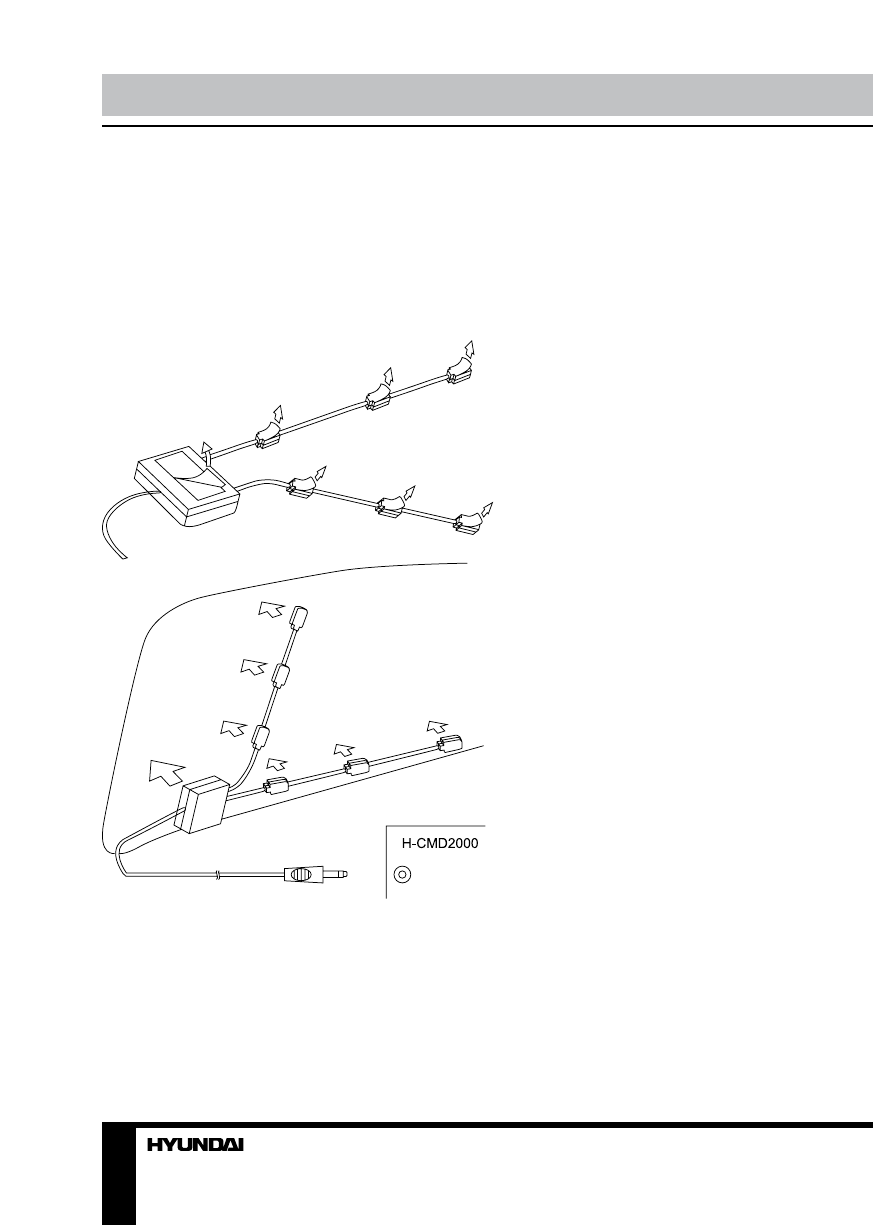

Remove fat from the surface you

want to fix the antenna on. Tear off the
protective stickers from (A) and (B)
elements.

Fix the antenna to the window

surface. Connect the antenna jack to the
corresponding input of the DVD-receiver.

Specifications

TV frequency range

VHF: 48.5 – 223 MHz

UHF: 470 – 870 MHz

Gain

3 dB

Output impedance

75 Ohm

Operating temperature

-40

0

C ~ +85

0

C

Storage temperature

-40

0

C ~ +90

0

C
