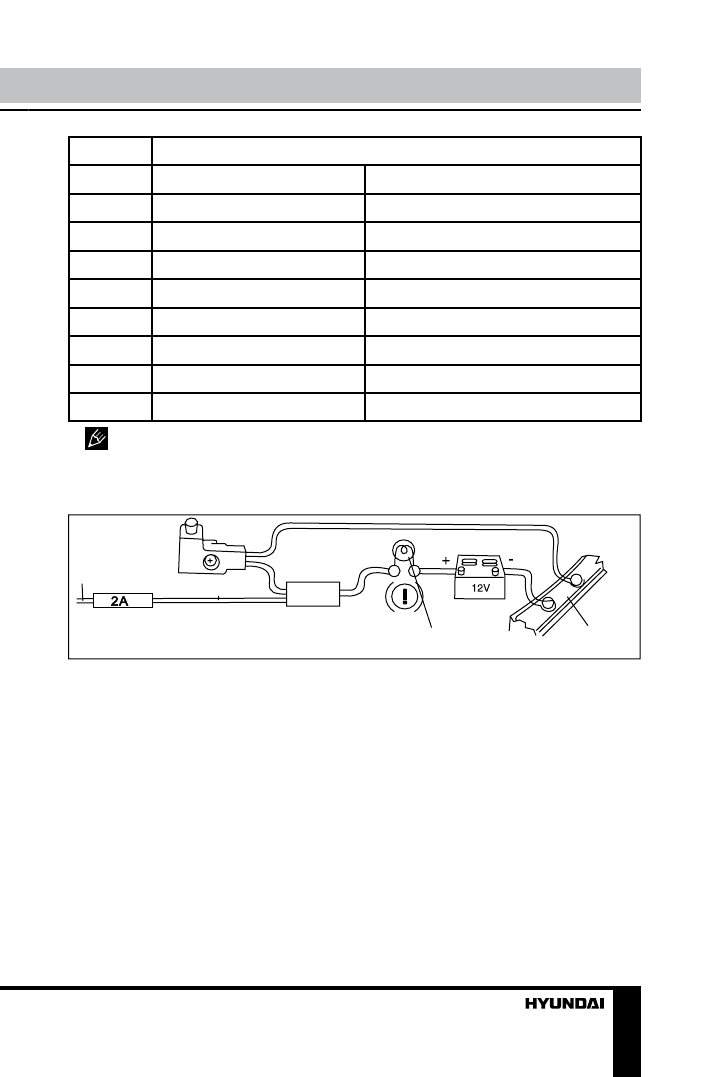

Installation/Connection

7

Location

Function

Connector B

Connector A

1

Rear right (+) - Blue

-

2

Rear right (-) - Blue/White

-

3

Front right (+) - Grey

-

4

Front right (-) - Grey/White

Battery +12V/Yellow

5

Front left (+) - Green

Power antenna/Orange

6

Front left (-) - Green/White

-

7

Rear left (+) - Brown

Ignition/Red

8

Rear left (-) - Brown/White

Ground/Black

  Power antenna wire is intended for power supply of the antenna and for

remote control of an additional amplifier.

Parking wire connection

Parking brake
lead

Brake light

Car frame

Battery

Purple Wire

If parking cable is connected to hand brake switch, the video display of the

monitor will be controlled by driving status, system setup and input video sources.
When the car is moving ahead, if the video is played, the screen shows warning.
The warning screen will prevent the driver from watching images.
