Installation/Connection

4

Installation

General notes

•   Choose the mounting location

where the unit will not interfere with
the normal function of the driver.

•   Before finally installing the unit,

connect the wiring and make sure that
the unit works properly.

•   Consult with your dealer if

installation requires drilling of holes or
other modifications of the vehicle.

•   Install the unit where it does not

get in the driver’s way and cannot
injure the passenger if there is a
sudden stop, like an emergency stop.

•   If installation angle exceeds

30° from horizontal, the unit may not
perform properly.

•   Avoid installing the unit where it

would be subject to high temperature,
such as from direct sunlight, or from
hot air, from the heater, or where
it would be subject to dust, dirt or
excessive vibration.

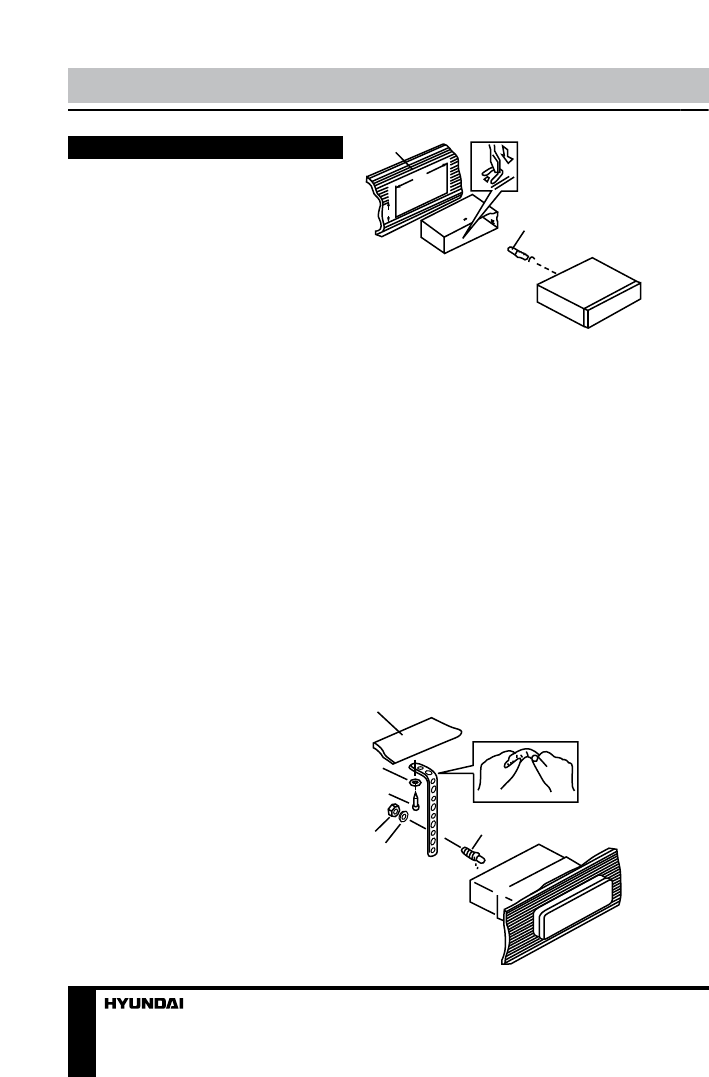

1.DIN front-mount

1. Car dashboard
2. Sleeve
3. Bolt
4. Nut (5 mm)
5. Spring washer
6. Self-tapping screw
7. Metal strap
8. Flat washer

3

2

1

182

53

1. Install the sleeve into the

dashboard; ensure it is installed with
the correct side and there are no
obstacles (wires, dashboard elements,
etc) for the unit installation.

2. After installing the sleeve into the

dashboard, bend tabs fitting to the
size of the dashboard to fix the sleeve
in place.

3. Use the metal strap to fix the rear

side of the unit. Determine a place for
fixing and install the strap as shown in
the picture. You can bend the strap to
the needed angle with your hands.

4. Make the necessary wire

connections. Ensure the connections
are correct.

5. Install the unit into the sleeve until

the side locks are fixed.
