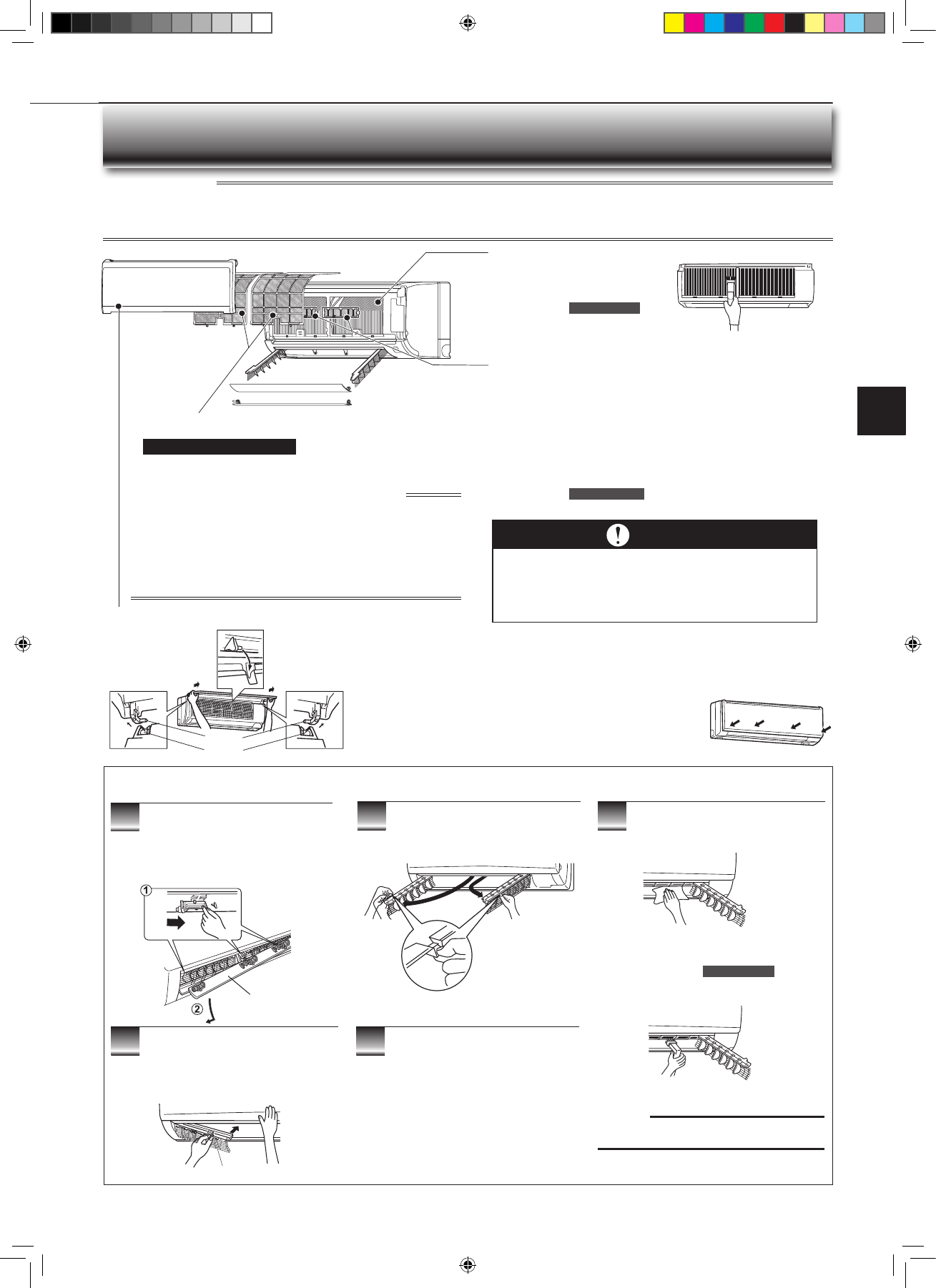

Mitsubishi Electric MSZ-GF60VE - Инструкция по эксплуатации - Страница 9

En-8

1.  Lift the front panel until a “click” is heard.
2.  Hold the hinges and pull to remove as shown in the left illustration.

•  Wipe with a soft dry cloth or rinse it with water.

•  Do not soak it in water for more than two hours.

•  Dry it well in shade.

3.  Install the front panel by following the removal procedure in reverse. Close the

front panel securely and press the positions indicated by the arrows.

Instructions:

Air outlet and Fan (before cleaning, make sure that the fan is stopped)

C

LEANING

1

Turn the horizontal vanes down-

ward. Then, remove the upper

vane as shown in

➀

and

➁

.

•  Repeat

➀

and

➁

for the lower vane.

2

Swing out the two vertical vanes

one by one.

4

Put the vertical vanes back to their

original  positions  correctly  one  by

one, into their respective guide.

•  Push the vanes until they click into place.

3

Clean the air outlet and fan.

•  Wipe with a soft dry cloth.

Clean the fan.

•  Use the QUICK CLEAN KIT (option).

  Parts Number

 MAC-093SS-E

•  Refer  to  the  instructions  described  in  the

QUICK CLEAN KIT for details.

5

Install the horizontal vanes by

following the removal procedure

in reverse.

•  If  the  horizontal  vanes  are  not  installed

correctly, all LED lamps blink when power

is turned on.

•  Switch off the power supply or turn off the breaker before cleaning.

•  Be careful not to touch the metal parts with your hands.

•  Do not use benzine, thinner, polishing powder, or insecticide.

•  Use only diluted mild detergents.

•  Do not expose parts to direct sunlight, heat, or fi re to dry.

•  Do not use water hotter than 50°C.

Note:

Do not apply excessive force to the fan or fan guard.

Heat exchanger

•  Wear gloves to protect your hands.

•  Use the QUICK CLEAN KIT

(option).

  Parts Number

 MAC-093SS-E

•  Refer to the instructions described in the

QUICK CLEAN KIT for details.

Front panel

Hole

Hinge

Upper vane

Unlock

Air fi lter (Nano platinum fi lter)

•

Clean every 2 weeks

•  Remove dirt by a vacuum cleaner, or rinse with water.

•  After washing with water, dry it well in shade.

What is “Nano platinum fi lter” ?

Nano platinum is a ceramic particle that includes a platinum nanoparticle.

The particles are incorporated into the fi lter material, which results in pro-

viding semi-permanent antibacterial and deodorizing characteristics for the

fi lter.  Nano  platinum  surpasses  the  catechin  (a  biofl avonoid  that  is  found

in green tea) in performance. Nano platinum fi lter uses this compound not

only to improve air quality but also to eliminate bacteria and viruses. This air

fi lter has a semi-permanent lasting effect even after washing it with water.

Air cleaning fi lter

(Electrostatic anti-allergy enzyme fi lter, option)

Every 3 months:

•  Remove dirt by a vacuum cleaner.

When dirt cannot be removed by vacuum cleaning:

•  Soak the fi lter and its frame in lukewarm water before rinsing it.

•  After washing, dry it well in shade.

Every year:

•  Replace it with a new air cleaning fi lter for best performance.

•  Parts Number

 MAC-2310FT-E

Guide (catch)

 Important

•

Clean  the  fi lters  regularly  for  best  performance  and  to

reduce power consumption.

•

Dirty  fi lters  cause  condensation  in  the  air  conditioner

which  will  contribute  to  the  growth  of  fungi  such  as

mold.  It  is  therefore  recommended  to  clean  air  fi lters

every 2 weeks.
